OnePlotFourViews

Use the OnePlotFourViews command to add four different aspects of a single result plot to your report.

The format for the OnePlotFourViews command is:

OnePlotFourViews, <Plot Name>, <OrTopLeft>, <OrTopRight>,<OrBottomLeft>,<OrBottomRight>, or

OnePlotFourViews, <ResultID>, <OrTopLeft>, <OrTopRight>,<OrBottomLeft>,<OrBottomRight>,

where the <Orientation> arguments are optional. If you use a saved view that you have created yourself, include quotation marks around the orientation arguments.

Inputs for the Orientation arguments include:

• Left
• Right
• Top
• Bottom
• Front
• Back
• Frontleft
• Frontright
• Backleft
• Backright
• Isometric
• <Saved View>
• Current

For example:

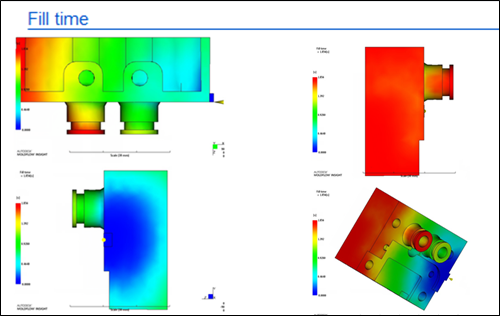

• OnePlotFourViews, "Fill time", TOP, LEFT, RIGHT, ISOMETRIC
• OnePlotFourViews, "Fill time"
• OnePlotFourViews, 1540
