To uncheck Use mesh aggregation for warp analyses

Some results are only available when you turn mesh aggregation off.

Molded-in residual stress results, such as the Stress tensor (warp) result, are only available when the residual stress model is selected and mesh aggregation is turned off.

1. Click (Home tab > Molding Process Setup panel > Analysis Sequence) and choose a sequence that includes Warp.
2. Click (Home tab > Molding Process Setup > Process Settings).
3. If necessary, click Next until you reach the Warp Settings page.
4. Set the Warpage analysis type to Small deflection.

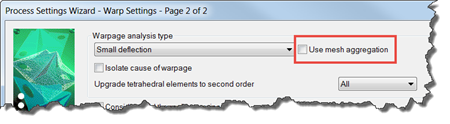

5. Deselect Use mesh aggregation.
