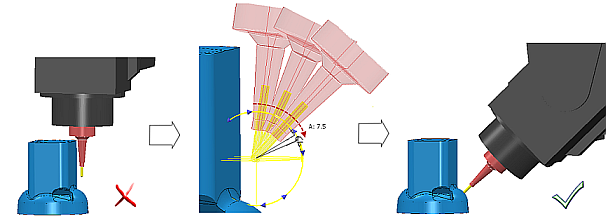

Use the Dynamic Machine Control item to adjust the configuration and tool axis of a 3+2 machine tool. This enables you to quickly and easily improve the machine tool's access to the workpiece.
Click Toolpath Edit tab > Edit panel > Dynamic Machine Control to display the Dynamic Machine Control tab.
Note: Dynamic machine control functionality is available for all tools. All of the functionality is available for: ball nosed, tip radiused, end mill, barrel, tapered spherical and tapered tip tools. For other tools, functionality is limited.

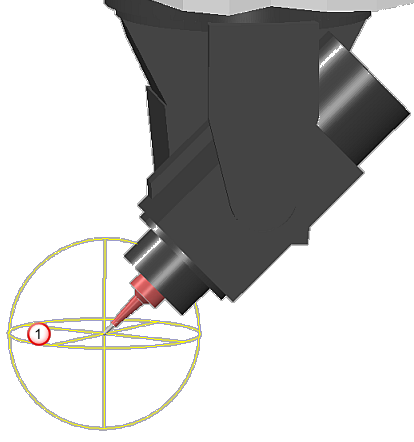

Entering the dynamic machine control mode displays grab-handles around the tool
and the
Dynamic Machine Control tab.
