Modify wall segment parameters to change the default dimension ranges for generating panels.
You change segmentation settings in the Configuration dialog. Click Precast tab
Configuration panel
(Configuration) and navigate to the appropriate node for your wall:
Configuration panel
(Configuration) and navigate to the appropriate node for your wall:

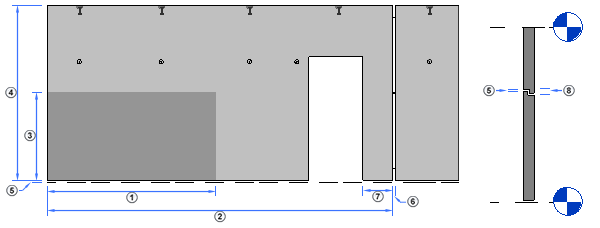

- Concrete Wall Solid Wall Segmentation
| Name | Description |
|---|---|
 Min. Wall Length
|
Specifies the minimum length for a generated wall assembly. |
 Max. Wall Length
|
Specifies the maximum length for a generated wall assembly. |
 Min. Wall Height
|
Specifies the minimum height for a generated wall assembly. |
 Max. Wall Height
|
Specifies the minimum height for a generated wall assembly. |
 Max. Weight
|
Specifies the maximum weight for a generated wall assembly. |
 Horizontal Gap
|
Specifies the horizontal gap between two adjacent assemblies. |
 Vertical Gap
|
Specifies the vertical gap between two adjacent assemblies. |
 Min. Distance to Openings
|
Specifies the minimum distance from a wall opening from which a new wall assembly should begin. |
 Profile Overlap Height
|
Specifies the height of the profile overlap at the horizontal split of the wall assembly. |
