Suppress Pipe Wall

In this step, we remove the outer pipe wall from the analysis by suppressing it.

Click Mesh Sizing from the Setup tab:

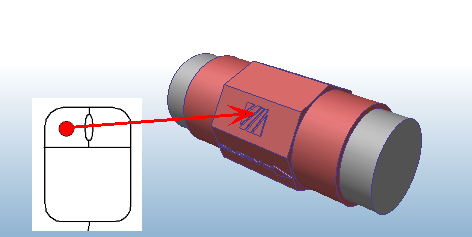

Select the outer pipe wall.

Click the Suppress button from the context toolbar:

For more about suppressing parts
