To Electronically Transmit an Element

Use this procedure to electronically transmit an element drawing.

Electronically transmitting a drawing means that you package the drawing for delivery in electronic form. Drawing files in the transmittal package include all related dependent files such as external references and font files.

1. On the Quick Access toolbar, click Project Navigator .
2. On the Constructs tab, locate the element to transmit.
3. Select the element, right-click, and click eTransmit.

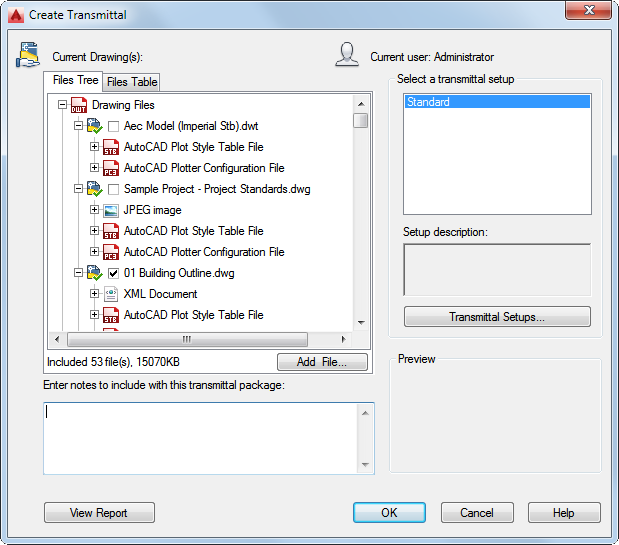

   The Create Transmittal dialog box is displayed.



4. On either the Files tree tab or the File Table tab, select the components to be included in the electronic package.

   The Files Tree tab displays the included files sorted by type. The Files Table tab displays all files in a list view. You can sort the list by name, path, type, version, size, and date.

5. Click OK to start the electronic transmittal.
