Create a Factory Layout

To create a layout in Inventor or AutoCAD

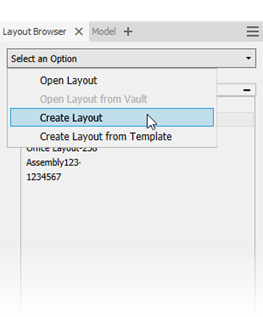

1. In the Layout Browser, click the Select an Option menu to expose the options and then select Create Layout from the list.

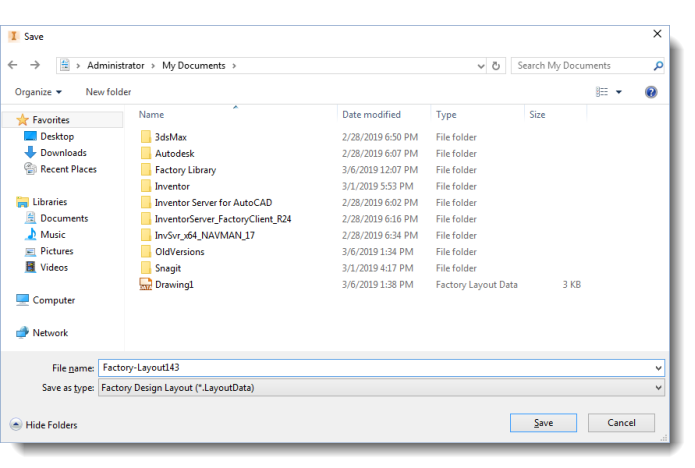

2. Enter a name for your new layout and click Save.

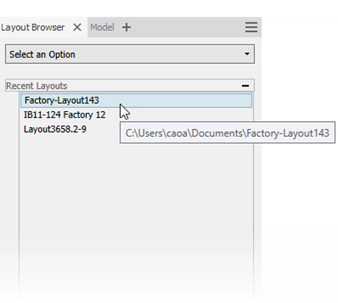

You can access the layout you just created from the Layout Browser > Recent Layouts list.

Once you create your Factory layout, a LayoutData file is also created and accessible through the Layout Browser in all Factory CAD software. You can work with all your Factory Design data by opening the LayoutData file through the right-click context menu.

Need more information?

• For information about creating a layout in Inventor, see Create a Factory Layout in Inventor.
• For information about creating a layout in AutoCAD, see Initiate Cross-Product Workflows in AutoCAD. or To Place Factory Assets
• For more information about the options available in the AutoCAD or Inventor Layout Browser, see AutoCAD Layout Browser Reference.
