Enabling Colour Space Conversion on Clip Input

To enable colour space conversion on clip input:

1. In the VTR Input module, click Engineering.

   The Engineering menu appears.

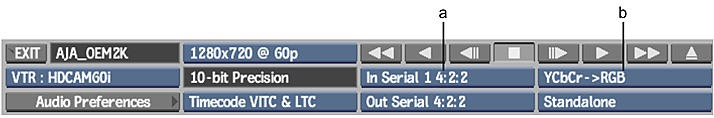

   (a) Input Connection box (b) Colour Space box

2. From the Input Connection box, select the input connection.
3. From the Colour Space box, select YCbCr->RGB+Headroom.
4. Capture the material.

   Material is captured with headroom and footroom.

To enable colour space conversion on clip output:

1. Open the clip library with the clip(s) you want to output.
2. Click Output Clip and prepare output clip settings.
3. In the VTR Output module, click Engineering.
4. In the Engineering menu, select the output connection from the Output Connection box.
5. From the Colour Space box, select YCbCr->RGB+Headroom.
6. Output the material.

   Material is output with headroom and footroom.
