Setup
|
A Setup defines a number of general properties for a set of machining operations - including the work coordinate system (WCS), the stock geometry, fixtures, and the machining surfaces.
Every setup is represented as a separate item in the CAM Browser using the Setup icon . Any operations located under this item use setup settings by default.
To create operations in Inventor CAM, you will need at least one setup. You create a setup manually, by clicking Setup on the Inventor CAM toolbar, or from the CAM Browser pop-up context menu.
Setup on the Inventor CAM toolbar, or from the CAM Browser pop-up context menu. Remember: If you do not create a setup manually before adding your first operation, a setup with default parameters is created for you automatically.

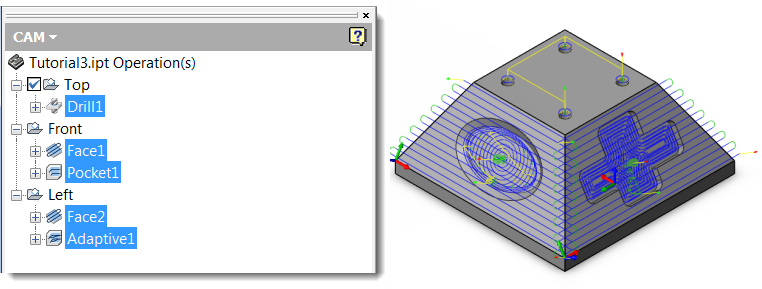

A 3+2 part with a setup for each side to be machined
