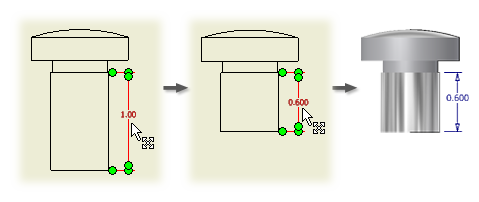

Edit model dimensions from a drawing

1. Select the dimension to change.
2. Right-click, and then select Edit Model Dimension from the menu.
3. Enter the new dimension in the edit box.
4. To change the dimension tolerances, right-click in the edit box, and then select Tolerances.

Note: If you did not select the option to edit model dimensions in drawings when you installed Autodesk Inventor LT, this option is unavailable. It is also unavailable when the selected dimension is a drawing dimension.
