Now that Maya has generated the normal map, you need to change the render mode to High Quality Rendering mode to see it.

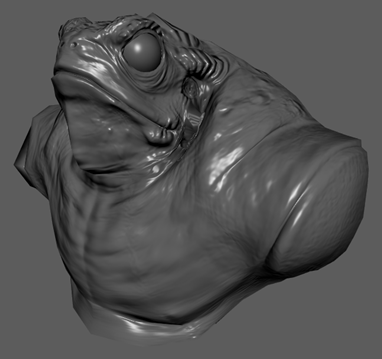

To view the normal mapped texture
- Select the high resolution toad model and hide it by pressing
+ H.
- Tumble the view around the toad.
The light on the surface reacts appropriately to all the details on the texture, without any loss in performance.
- To remove the statistics at the top of the workspace for the next lesson, de-select Display > Heads Up Display > Poly Count.
