Assign a texture to a UV set

You assign textures to UV sets using the Relationship Editor.

Select Windows > Relationship Editors > UV Linking > UV-Centric to open the Relationship Editor’s UV set editing view.

To...	Do this

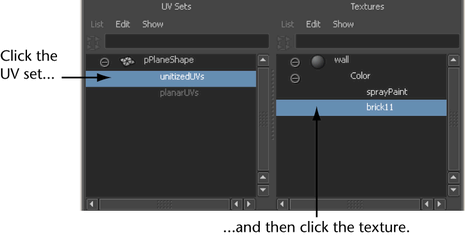

Assign a texture to a UV set.	Click the UV Set in the left column, then click the texture in the right column so it’s highlighted.
Remove a texture from a UV set.	Click the UV Set in the left column, then click the texture in the right column so it’s not highlighted.
Temporarily keep textures from appearing in software renders.	From the Edit menu above the list of textures, choose one of the following: Ignore Texture: hides the selected texture. Use Texture When Rendering: uses the selected texture. Isolate Texture: hides all textures but the selected one. Use All Textures When Rendering.7

To...

Do this

Assign a texture to a UV set.

Click the UV Set in the left column, then click the texture in the right column so it’s highlighted.

Remove a texture from a UV set.

Click the UV Set in the left column, then click the texture in the right column so it’s not highlighted.

Temporarily keep textures from appearing in software renders.

From the Edit menu above the list of textures, choose one of the following:

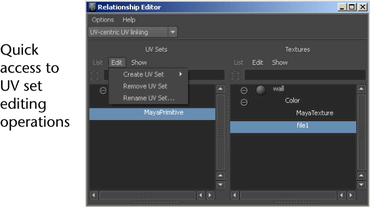

The Relationship Editor also provides easy access to several of the UV set editing operations in its Edit menu.
