- In the Modeling menu set (F2):
Mesh Tools > Target Weld >
- In the
Modeling Toolkit: expand Tools, click
, and tghe options appear below
Use these options to set what happens when you use the Target Weld Tool. Click and drag a vertex or edge to the target to merge all selected vertices or edges. For more information on how to use this tool, see Merge polygon components.

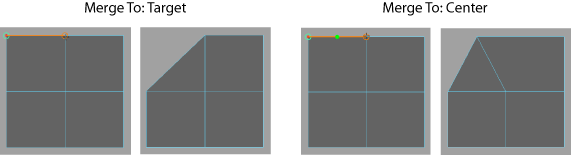

- Merge To
-
- Target
- (Default) The target vertex becomes the new vertex and the source vertex is deleted.
- Center
- A new vertex or edge is created equidistant between the source and target components. The source and target components are then removed.
- Preserve UVs
-
-
When active, UVs adjust to maintain the 3D texture placement. This setting is the default.

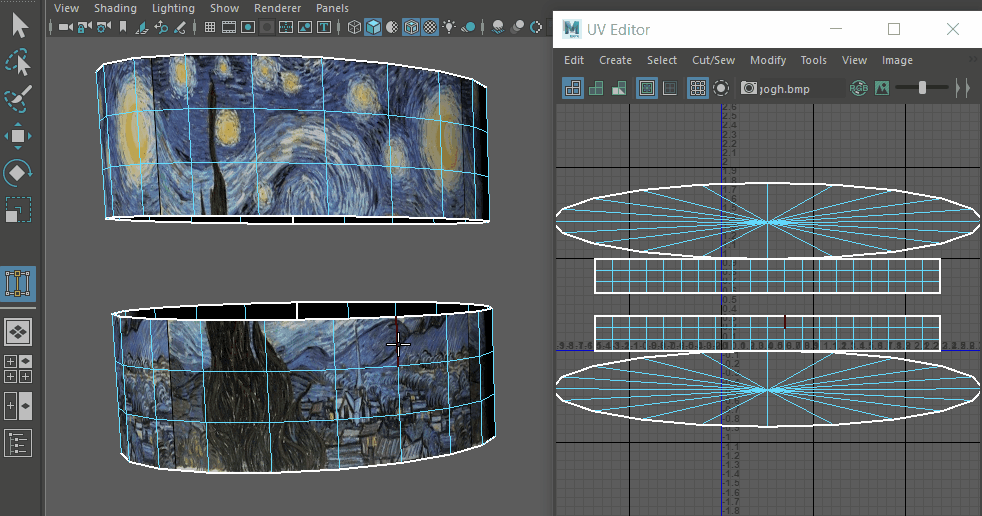

Showing Target Weld on a primitive with and without the preserve UVs option activated.
- Disable this option when you want the 3D texture to distort when the vertex or edge is adjusted.
