When using the Solve in Nastran option, Autodesk Inventor Nastran solves the model using the Autodesk Nastran Solver.
The progress of the analysis can be seen in the Inventor Nastran status window within Autodesk Inventor Nastran. In Autodesk Inventor, the solution progress displays in the browser (model tree) area.
There are three ways to execute the Solve in Nastran command:

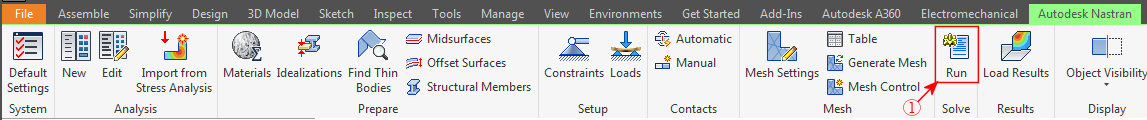

- Click the
Run command in the
Solve panel of the ribbon bar.

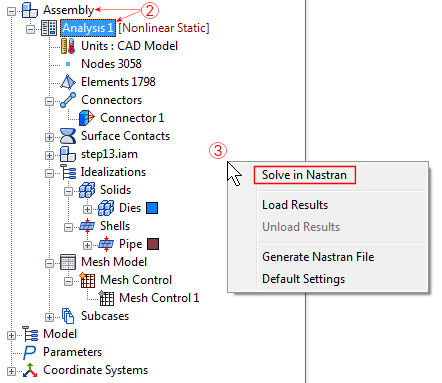

- Right-click the Part/Assembly or analysis name heading ("Analysis 1" in the example below) and choose Solve in Nastran from the context menu.
- Right-click on an empty space of the Autodesk Nastran Model Tree and select
Solve in Nastran from the context menu.
