Use this reference to review the specifications for the Element Parameter Case check.
The element parameter case check verifies the case of selected element parameters.
Overview
| Description: | Checks the case of selected element parameters. |
| Evaluation Criteria: | Checks if element parameters are upper case, lower case, or title case. |
| Limitations: | None |
| Document Types: | All |
| Filters: | Elements |
| Highlighting: | No |
| Info Tab: | Displays failed elements. Select element to zoom to it. |
| Correction: | Updates the parameter with the correct case. |
Examples where this template might be used
- Find all room names not in title case.
- Find door number suffixes not in upper case.
Details

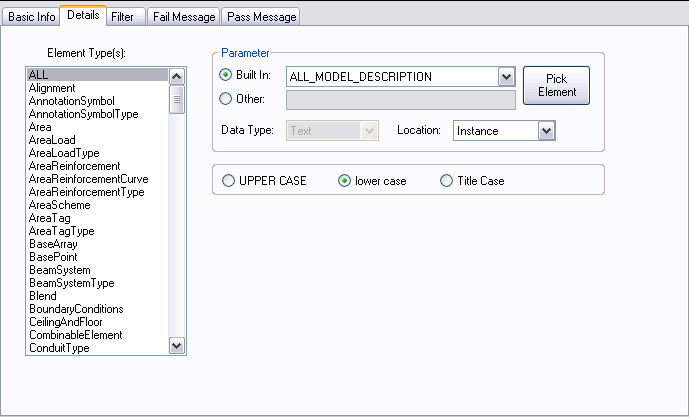

Options:
| Option | Usage |
| Element Type(s) | Element type to check. |
| Built In | Use built in parameters. |
| Other | Use other parameters. |
| Pick Element | Allows the user to select an element and parameter to test. |
| Data Type | Data type of the parameter. |
| Location | Parameter instance or type. |
| UPPER CASE | Test parameter for upper case. |
| lower case | Test parameter for lower case. |
| Title Case | Test parameter for title case. |
Pass/Fail Report Options:
Value(s):
Available by right clicking in the Pass/Fail Messages Editor, then choosing Insert>>Value.
| Reportable Variable | Description |
| CheckName | Name of the check. |
| CheckResult | Result of the check. Passed/Failed. |
| FilterSize | Size of the selection filter. |
| NumBadElements | Number of failed elements. |
Table(s):
Available by right clicking in the Pass/Fail Messages Editor, then choosing Insert>>Table.
| Reportable Variable | Description |
| ElementTable | Table displaying all failed elements. |
Results
After the check is run and if the criteria failed, a fail message is displayed. If the criteria passed then a pass message is displayed.
