Learn how to start the analysis process (linear static).
Note: In this tutorial, we run a linear static analysis. A key strength of Robot is the possibility to define a wide range of analysis types such as linear static, modal, seismic, spectral, harmonic, or time history analyses. For more information about the types of analyses available in Robot, see Analysis Types - Definition.
- Continue working in your project or open the project Plate_Combinations.rtd.
Note: The Tutorial files are located in C:\ProgramData\Autodesk\Examples\Tutorials.
- Click
(Analysis
Calculations).
The calculation process starts. The Calculations dialog shows the advancement of the process, which depends on the size of the project being analyzed.

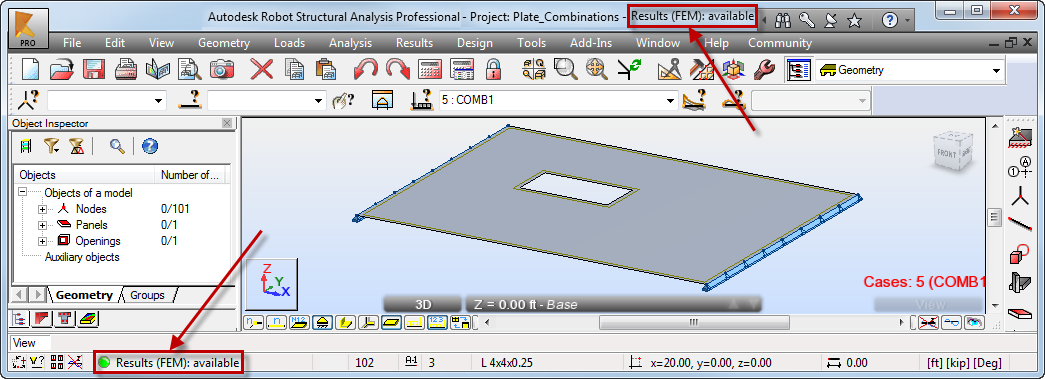

- Once the calculations are complete the information: Results (FEM): available is displayed at the top and the bottom of the program.
- Save the project as Plate_Analysis.rtd.
