IFR example part 4: Simulating the toolpaths

Run a 3D simulation to see if the features have been created correctly and to check for gouges.

1. Click Home tab > Simulation panel > Sim mode menu > 3D to change the simulation type.
2. Click Play on the Simulation toolbar to start the simulation.

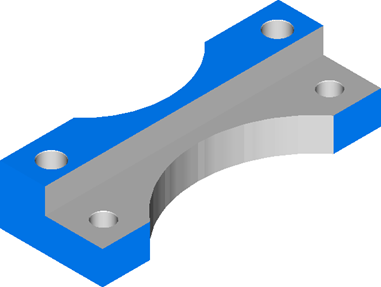

   The 3D cutting simulation is displayed in the graphics window.



3. Click Stop to end the simulation.
