Turning example part 6: Viewing the part

You have been working in a 2D view.

1. Deselect View tab > Appearance panel > Line Display menu > Turning 2D View to return to a 3D view of the model.
2. Click View tab > Views panel > ISO menu > ISO 1.



3. Shade the part.
   1. Open the Part View panel, and select bore1 under the Setup1 node.
   2. Select View tab > Appearance panel > Shade menu > Shade Selected.
   3. Select thread1 in the Part View panel.
   4. Select View tab > Appearance panel > Shade menu > Shade Selected.

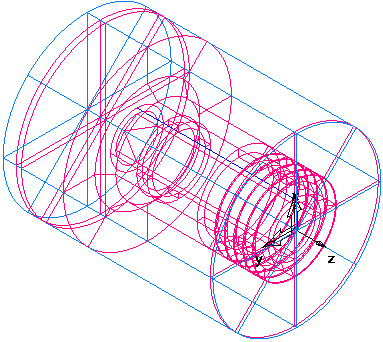

4. Select View tab > Appearance panel > Shade menu > Unshade All to return to the wireframe view of the part.
