How do I align the UVW_Modifier's Gizmo to a selected face?

The following code implements the "Normal Align" feature of the UVW_Map modifier. The "Normal Align" button is not directly accessible to MAXScript. This function can be used as a replacement, and might help you understand the usefulness of the Vector Cross Product.

SCRIPT

   fn alignUVGizmo theObj theFace =
   (

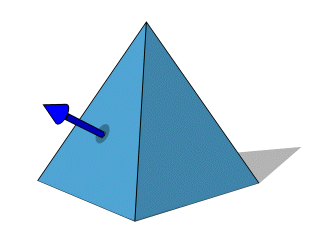

   -- First get the face normal vector.
   -- It is shown in BLUE on the image
   faceNormal = in coordsys theObj (getFaceNormal theObj theFace)

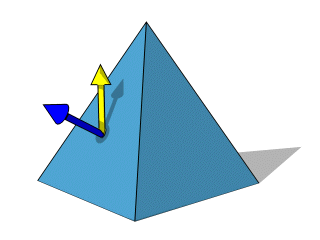

   -- This is the desired up vector in world space
   -- It is shown in YELLOW on the image
   worldUpVector = [0,0,1]

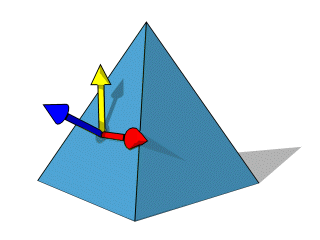

   -- Now get the cross-product of the face normal and the up vector.
   -- This will give you a vector that is perpendicular to the plane defined
   -- by the normal and the up vector. Normalize it to get a normal vector
   -- pointing to the right.
   -- It is shown in RED on the image
   rightVector = normalize (cross worldUpVector faceNormal)

   -- Now using the face normal and the new vector,
   -- get a vector that is perpendicular to the plane defined by the two.
   -- This is the "local up vector", the vector that is the projection of
   -- the world up vector on the face you selected. This one is perpendicular
   -- to both the face normal and the right vector, and you have 3 normals now
   -- that define the X, Y and Z of your new orthogonal coordinate system
   -- for the UVW gizmo!

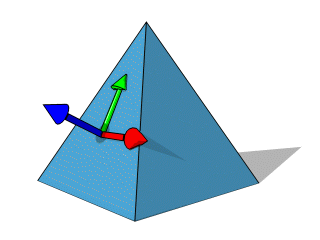

   -- Note that this new vector can be seen as the SHADOW of the World Up vector
   -- on the face of the object in the above image.
   -- It is now displayed in green in the image below:
   upVector = normalize ( cross rightVector faceNormal )

   -- Using the 3 vectors, define a matrix3 value which represents the
   -- coordinate system of the gizmo. The face normal is the Z axis,
   -- the right vector is the X axis, and the local up vector is the Y axis:
   theMatrix = matrix3 rightVector upVector faceNormal [0,0,0]

   theMap = Uvwmap()
   modPanel.addModToSelection theMap ui: on
   theMap.gizmo.transform = theMatrix
   )
