Sample files for use with the examples are available in the Local_Simulation_example_Files_2021.1.zip package from this Download Link. Expand the downloaded ZIP archive into a convenient directory from which you can run Local Simulation inside the numbered directories.
Problem Description
In this example, symmetry boundary conditions are applied to the thermo-mechanical simulation of a cobalt chrome cylinder. Figure 1 shows the original and quarter-symmetric model.
Symmetry boundary conditions are applied to the X and Y faces at the origin using the *SYMM card.

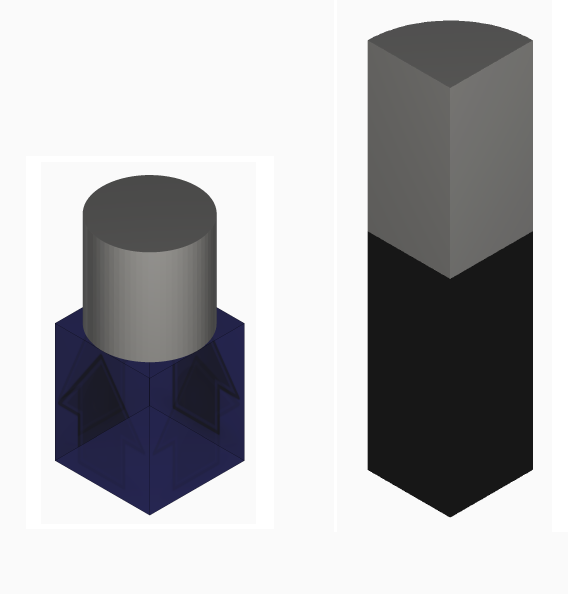

Figure 1: Original and segmented cylinder geometries
