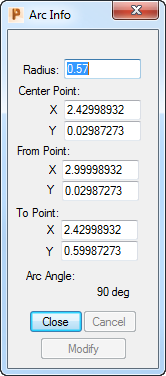

Arc Info dialog (PartMaker)

Use the Arc Info dialog to view, or modify, information about an arc when working in CAD mode.

To display the Arc Info dialog, double-click on an arc when working in CAD mode.

The following settings are available:

Depth Info — Click to display the Depth Information dialog, where you can view, or modify, the depth of an arc. This button is displayed only when it is possible to specify a depth for the arc.

Radius — Displays the radius of the arc. You can change this value if you wish.

Center Point

• X — Displays the X coordinate of the arc's center point.
• Y — Displays the Y coordinate of the arc's center point.

You can changes these values if you wish.

Note: The coordinates displayed vary depending on the machining function of the CAM Face window. For example, Z and X coordinates are displayed if you are working in a Turn Face window.

From Point

• X — Displays the X coordinate of the arc's start point.
• Y — Displays the Y coordinate of the arc's start point.

Note: The coordinates displayed vary depending on the machining function of the CAM Face window. For example, Z and X coordinates are displayed if you are working in a Turn Face window.

You can changes these coordinates if you wish.

To Point

• X — Displays the X coordinate of the arc's end point.
• Y — Displays the Y coordinate of the arc's end point.

You can changes these values if you wish.

Note: The coordinates displayed vary depending on the machining function of the CAM Face window. For example, Z and X coordinates are displayed if you are working in a Turn Face window.

Arc Angle — Displays the angle of the arc.

Close — Click to save any changes and close the dialog.

Cancel — Click to close the dialog without saving any changes.

Modify — Click to apply your changes to the arc selected in the CAD Face window, without closing the dialog.
