Shift Bolts and Holes

You can shift bolts and holes placed on the wrong surface of an object, along their axis to the correct face.

Access the command

On the Objects tab Connection objects panel, click (Shift bolts/holes).

Command line: ASTORMOVE2PLANE

Shift bolts or holes

1. On the Objects tab Connection objects panel, click (Shift bolts/holes).
2. Select a bolt (or hole) pattern and press Enter.
3. Select an element (beam or plate) that defines the reference plane and press Enter.

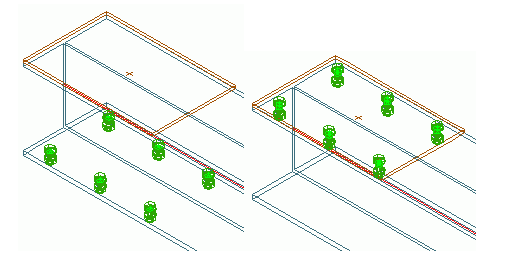

• The bolt pattern moves to the other face of the element.
