Curves > Curve & COS Offset

Creates an offset curve with the specified distance from the original curve. The distance of a Curve-on-Surface offset is measured on the surface. For each selected curve chain, a vector handle is displayed in the graphics area to control the offset distance and direction.

Offset Mode & Distance

Automatic

Creates a quick offset that allows you to specify the Deviation Tolerance. Spans are edited (added or removed) until the specific deviation tolerance is reached, or the maximum number of spans are reached.

CV Offset

The structure and parameterization of the original curve is used as input. Each CV is moved in a certain local offset direction as far as required to get the most accurate result.

Explicit

Allows you to control the degree and the number of spans for the curve offset.

Original

The curve offset is created based on the original degree and the original number of spans, but the parameterization is adapted to the new shape.

Offset Distance

Specifies the distance between the original curve and where the curve offset is created. You can specify a positive or negative Offset Distance value to create a curve offset on either side of the original curve. You can also drag the arrow head in either direction to change the Offset Distance value positively or negatively.

Explicit Control Options

Explicit Degree

Allows you to specify an explicit degree for the curve offset. This option only appears if the Explicit offset mode is selected.

Min Degree

Allows you to specify a minimum degree value for the curve offset. This option only appears if the Explicit offset mode is selected.

Degree

Specifies the explicit degree value if Explicit is selected or the minimum degree value if Min is selected for the curve offset.

Explicit Spans

Allows you to specify explicit U and V spans for the curve offset. This option only appears if the Explicit offset mode is selected.

Max Spans

Allows you to specify a maximum number of spans for the curve offset. This option only appears if the Explicit offset mode is selected.

Spans

Specifies the explicit number of spans if Explicit is selected or the maximum number of spans if Max is selected for the curve offset.

More Options

Deviation Tolerance

Controls the accuracy of the offset result. The Deviation Tolerance option is only available if the Automatic offset mode is selected, or if Max Spans is selected under Explicit Control Options.

Min. Spans Length

Specifies the minimum length of spans in the curve offset. The Min. Spans Length option is only available if the Automatic offset mode is selected, or if Max Spans is selected under Explicit Control Options.

Extend

When offsetting two or more curves, enabling the extend option extends the curves until they intersect.

Attach

Offset curves are attached together as one curve, and redundant CVs are removed. If this option is disabled, each curve is offset separately.

Both Sides

Creates an offset curve on both sides of the original surface. The Offset values apply to both offset curves. The offsets of the curves cannot be controlled independently.

Cut Curve Loops

If this option is enabled, all loops inside the curve offset result are eliminated.

Blend

Closes gaps in the offset result by extrapolating the curve ends until they meet or creating a blend curve with transition continuity of G1 or G2.

G1/G2

Specifies the transition continuity of the curve offset.

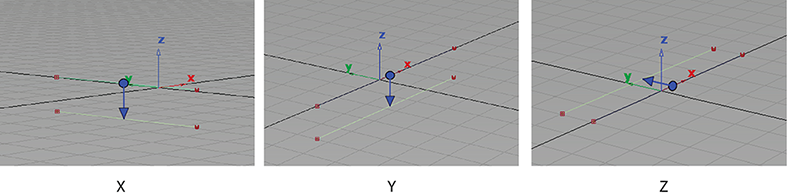

Offset Plane

X, Y, Z

Applies an offset that is perpendicular to the direction of the specified plane's normal direction. For example, selecting X generates an offset that is parallel to the X plane.

View

The offset is created according to the plane that is parallel to the camera view.

Picked

The offset is created according to the vector that you pick in the viewport.

Auto

The offset plane is automatically calculated.

Control Options

Auto update

If selected, any changes in any field of the control box lead to an automatic update of the model display. Auto Update is enabled by default.

Show Curvature

Shows the curvature of the curve offset. Show Curvature is disabled by default.

Show Deviation

Shows the deviation of the curve offset. Show Deviation is disabled by default.

Create History

Saves the history of the curve offset so you can modify the offset later. Create History is enabled by default.

Create Metadata

Specifies whether the Curve & COS Offset tool creates history metadata. Create Metadata is enabled by default.

Note:

The Create Metadata option is available only with Autodesk Alias 2019.2 or later.

Chain Select

If this option is selected when you select a curve, all curves that are tangent continuous are selected. Box select curves with Selection Options enabled to add or remove individual curves.
