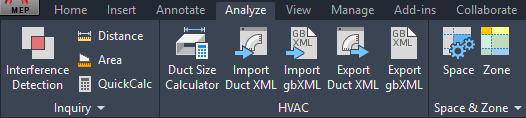

The Analyze tab contains all the commands you need to make engineering calculations on the objects in the current workspace. These calculation tools vary from the HVAC workspace to the Electrical and other workspaces.
- Inquiry. Provides tools to check for interferences between MEP objects and mass elements, to determine the distance between or area bounded by selected objects, and the QuickCalc tool for performing calculations.
- HVAC. Provides a duct size calculation tool, plus a way to import DuctXML and gbXML data.
- Space and Zone: Provides tools for adding spaces and zones to your drawings, and to create and modify space/zone templates.
