FAQ: Why Don’t Some Hatch Objects Update?

Issues can arise that impact the updating and modification of hatch objects. This article focuses on the following situations that might occur after making changes to objects in your drawings associated with hatch objects:

• Hatch boundary associativity removed
• Associative hatch entity on locked or frozen layer. No update performed

Hatch Boundary Associativity Removed

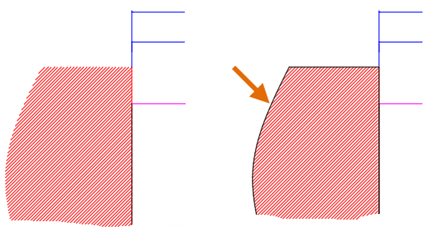

By default, hatch objects are associative, which means they are associated with the objects that define their boundaries. Associative hatch automatically adjusts when their boundary objects are modified. However, as objects are modified in a drawing, hatch objects can become disassociated if the boundary geometry is deleted or exploded.

Once a hatch object is no longer associative, you can do one of the following to reshape or adjust the hatch's boundary:

• Select the hatch and modify it using grips. The hatch object updates accordingly but remains non-associative.
• Recreate the boundary of the hatch and associate the new objects with the hatch to make it associative again. This can be done using the Recreate tool on the Hatch Editor contextual ribbon tab or the Recreate Boundary option of the HATCHEDIT command.



Associative Hatch Entity on Locked or Frozen Layer. No Update Performed.

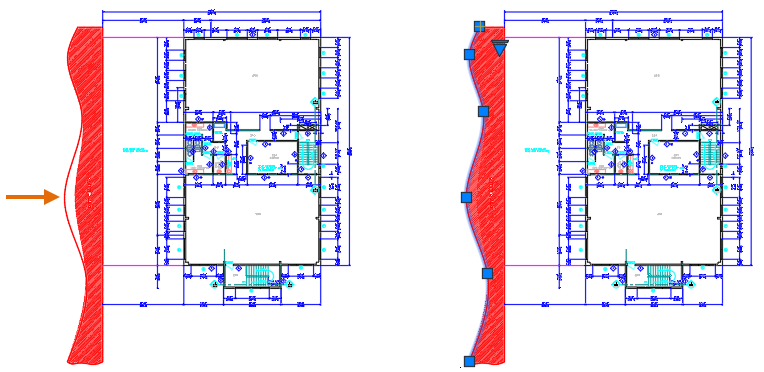

When a hatch object is on a locked or frozen layer while its associated boundary is modified, the hatch object isn't updated. This causes the hatch object to no longer fill the newly defined boundary.

If you catch this issue right after editing the boundary of a hatch object, you can undo the edits and then unlock or thaw the layer before redoing the edits to the boundary objects. However, if you didn’t catch the issue right away, you can do the following to update the hatch object:

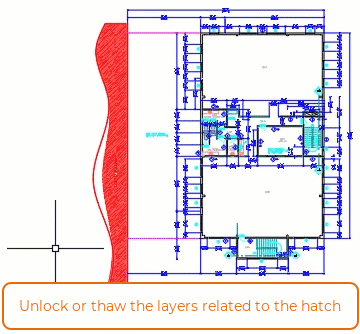

1. Unlock or thaw the layers on which the hatch and boundary objects are placed.
2. Select one of the hatch's boundary objects.
3. Select one of the grips that are displayed.
4. Click the same grip point as the selected grip.

   The boundary is not stretched but the hatch updates to the fill the current boundary.

If you have experience with AutoLISP, the following source code example demonstrates how to update all hatch objects on the current layout. The AutoLISP source code can copied/pasted to the Command prompt or used as part of another AutoLISP program. Before running the AutoLISP source code, unlock or thaw the layers on which the hatch and boundary objects are placed.

Important: With any type of source code, be sure you understand what it is doing before running it on your drawings and always test it using a copy of your drawing at first. Since this is a code example, not every drawing condition has been tested nor does it test for all error conditions.

(vlax-For obj (vla-Get-Block (vla-Get-ActiveLayout (vla-Get-ActiveDocument (vlax-Get-Acad-Object))))
  (if (= (vla-Get-ObjectName obj) "AcDbHatch")
    (if (= (vla-Get-AssociativeHatch obj) :vlax-true)
      (vla-Update (vlax-Ename->vla-Object (cdr (assoc 330 (reverse (entget (vlax-vla-Object->Ename obj))))))))))

Note: AutoLISP is not available in AutoCAD LT.
