MiniToolbarDropdown Object

Description

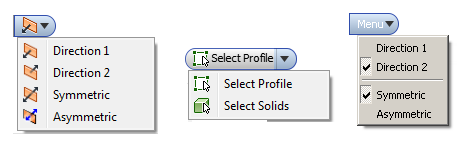

The MiniToolbarDropdown object represents a dropdown control within a MiniToolbar. The pictures below illustrate various types of drop downs.

Name	Description
AddItem	Method that adds an item to the control.
AddSeparator	Method that adds a separator to the control.
Clear	Method that removes all the items from the control.
Delete	Method that deletes the control.
RemoveItem	Method that removes the specified item from the control.

Name	Description
Application	Returns the top-level parent application object. When used the context of Inventor, an Application object is returned. When used in the context of Apprentice, an ApprenticeServer object is returned.
AutoHide
ControlType	Read-only property that returns the control type.
Count	Read-only property that returns the number of items in the dropdown.
DisplayName
Enabled
HasMRUBehavior
Index	Read-only property that returns the index this control is currently positioned at within the mini toolbar.
InternalName	Read-only property that returns a string uniquely identifying this control within the toolbar.
IsSplitButton	Read-write property that specifies if this is a split button dropdown control. If True, clicking the button will result in an OnClick event. If this property if False, clicking the button will cause the pop-up to be displayed where the user can click on an item in the list.
Item	Returns the display name of the specified item from the dropdown.
LargeIcon
Parent	Gets the parent object from whom this object can logically be reached.
Pressed
SelectedIndex
SelectedItem	Returns the item currently selected. This can return Nothing in the case where nothing is selected and will always return Nothing in the case where HasMRUBehavior is False.
ShowIcon
ShowText
StandardIcon
ToolTipText
Type	Returns an ObjectTypeEnum indicating this object's type.
Visible

Name	Description
OnItemHoverEnd	Event that is fired when the user stops hovering over an item in the drop down in the expanded state.
OnItemHoverStart	Event that is fired when the user starts to hover over an item in the drop down in the expanded state.
OnItemRemove	Event that is fired when the user removes an item from the dropdown.
OnPreMenuDisplay	Event that is fired when the user clicks the dropdown in a way where the drop down menu will be displayed. The event is fired just before the contents of the drop down list are shown to the user, so you can dynamically modify the contents of the list. If the IsSplitButton property is True, then clicking on the arrow to the right of the button will cause this event to be fired and display the drop-down list. Clicking the button itself is result in the OnSelect event to be fired. If the IsSplitbutton property is False, clicking the button will cause this event to be fired and display the drop-down list.
OnSelect	Event that is fired soon after the user changes the currently selected item using the drop down.

Introduced in version 2012
