Netfabb fixed issues
This is a selection of issues fixed with the 2022.0 release.
Netfabb
Machine workspaces
| Note |
Key |
| Fixed an access violation upon toggling no-build zone visibility in an Aconity Mini workspace |
NC-14341 |
| Fixed origin of Alkimat Laser Funde 200 to be front-left rather than center |
NC-14196 |
| Fixed an issue in buildfile creation for DMG Mori that caused a "Header write size mismatch" error |
NC-14513 |
| Opening the EnvisionTEC machine when EnvisionTEC One RP software is not installed no longer produces a Lua error. However, you still need this software to actually run the print. |
NC-13261 |
| Fixed toolpath preview for EOS machines with manual multilaser assignment to show flawed visualization |
NC-14610 |
| Corrected the default buildroom size for HP MJF 300/500 series machines to 332×190×248 mm |
NC-13713 |
| Fixed toolpath sorting in Renishaw Q-type EBPA buildstyles to be left-to-right, rather than per part order in the project tree |
NC-13938 |
| Fixed issue in W2P engine that prevented editing a material when it was the only one defined |
NC-14008 |
| Corrected buildroom origin for Xact XM200C and XM200s to front-left. It should be no longer necessary to set up a separate, custom buildroom to address this issue anymore. |
NC-13945 |
| Made buildroom statistics in MPBF machines more robust. Parts not fully inside default or custom buildrooms are properly ignored. This is intentional. They are also properly reacquired once scaled or moved back into the buildroom. |
NC-13542 |
| Made the saving of the setting Distance between part and platform in MPBF machines more robust. Loading projects across installations should no longer lead to constellations where an unset checkbox and distance becomes set again and ruins existing part arrangement in the process. |
NC-13545 |
| Build statistics in custom MPBF machines with larger-than-default buildrooms no longer show zero-values when parts exceed default buildroom height. |
NC-13612 |
| Fixed baseplates generated as supports being sliced like open support in a MPBF-type workspace. They are now treated properly as closed volume support elements as intended. |
NC-14101 |
| Fixed multilaser selection for Generic MPBF machine being inaccessible |
NC-14484 |
Back to top
Supports
| Note |
Key |
| Made support editor aware of custom no-build zones in addition to default ones |
NC-14558 |
| Fixed baseplate support generation not updating correctly after modifying an adaptive lattice support parameter |
NC-13565 |

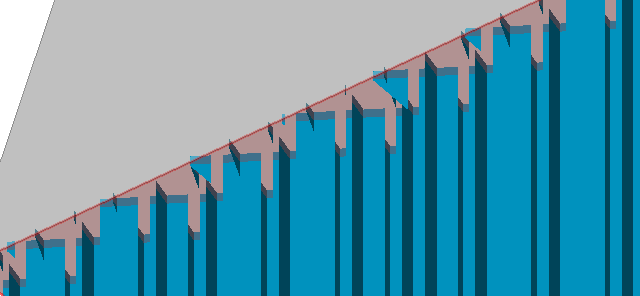

Fixed a bug in support generation where a combination of thin part and increased part intrusion would cause supports to be generated in triangular fragments
 |
NC-14298 |
| Fixed an access violation encountered upon opening support editor from the XYZ MfgPro230 xS machine |
NC-14589 |
Back to top
General functionality fixes
| Note |
Key |
| Fixed a bug that caused excessive memory consumption in Boolean and Boolean-related functions like Wrap |
NC-13735 |
| Addressed two more spots in Boolean where "Assertion failed" errors could occur |
NC-13805 |
| Identified and fixed an access violation in plane cutting |
NC-14466 |
| Fixed a bug that caused error "Model already exists" during cutting |
NC-14508 |
| Fixed a bug that caused Netfabb to become highly unstable on subsequent starts after loading any form of ZIP file |
NC-13819 |
| Fixed error "duplicate face group identifier". Combining/merging meshes with the same face group (eg. from an earlier cutting or duplicating) should no longer produce an error. |
NC-14232 |
| Fixed Filling degree stat not being updated after undoing and redoing part deletion in some machine workspaces |
NC-13042 |
| Fixed a bug that caused interlocking detection also test parts that should be ignored by means of being put outside the buildroom |
NC-14012 |
| Fixed a bug that prevented custom tessellation presets to be set as import defaults. This is now working as intended, but only for presets newly created from now on, not for presets created in the past, even by modifying them after the fix. |
NC-14400 |
| Fixed a source of access violation errors during removal of open beams in Lattice Commander |
NC-14587 |
| Fixed a bug that caused colors exported to 3MF be transparent when they should be opaque |
NC-13866 |
| Fixed a bug that would in rare cases cause the 2D packer to reduce a part to to nothing |
NC-14451 |
| Fixed a bug in remeshing that caused remeshing of the entire part instead of just the selection as specified |
NC-14099 |
Back to top
UI/UX
| Note |
Key |
| Made the 3D display more robust against moving between monitors which would sometimes cause it to show either nothing or the part library |
NC-14218 |
| Fixed clip plane range ignoring supports |
NC-13424 |
Back to top
Slicing
| Note |
Key |
| Fixed issue in slice export that caused fallback to default units when the export's option Convert hatches to contours was used |
NC-13842 |
| Fixed crash when trying to calculate layer time without any slice stacks present |
NC-13874 |
| Fixed an issue that caused a "Topology slice error" when slicing a 3MF with supports |
NC-14414 |
Back to top
