To Visualize Profiles

1. On the Bar tab, select the Visualize Cylinders setting (default) to display the bars with their assigned profile.

2. Select the Cylinder Profile View to display the bars without the assigned profile.

3. Select the Simplified View to display the bars as simple lines.

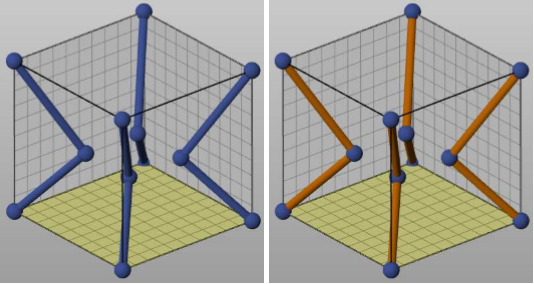

If a bar is not assigned a profile, it will be displayed in orange.
