Learn about delta and area lights, such as directional, point, spot, spherical, disk, and rectangular. Also, read about IES Profiles, Ray Files, and light nodes.

You can create the following types of lights in VRED:

• Delta and area lights, which include directional, point, spot, spherical, disk, or rectangular lights.

• IES Profiles and Ray Files (VRED Professional only).

Delta and Area Lights

These are the delta and area lights found in VRED:

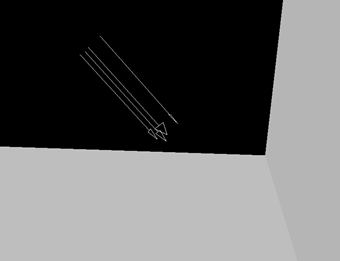

Directional Light

Light rays from directional light sources are parallel like sunlight. A directional light represents a distant light source and has no position only a direction that affects how the scene is illuminated. Directional lights always create hard shadows.

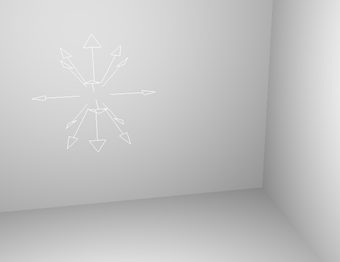

Point Light

Point light rays start at a single point and emit radially. In Raytracing mode, the point light generates a hard shadow. In OpenGL, a point light has a shadow.

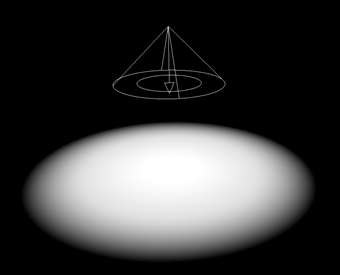

Spot Light

Spot light rays follow a beam cone. They start at a single point and spot in a circular area on the object. It is often used to emphasize an object or surface.

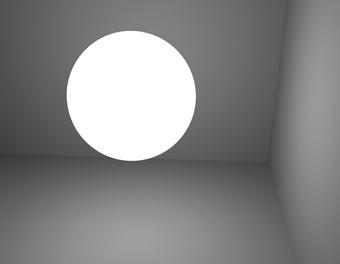

Spherical Light

Spherical light rays beam like from a glowing ball and generate diffuse light and soft shadows. It is an indirect lighting and more atmospheric than a point light. In OpenGL, a spherical light has a shadow.

Disk Light or Rectangular Light

The disk or rectangular light rays are created from a light source, appearing as if from a dropped ceiling, either from a circle (disk) or from a square (rectangular).

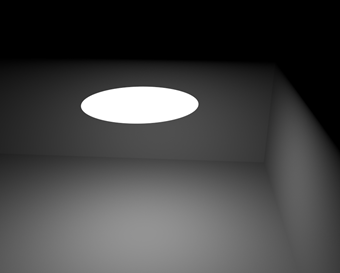

Disk Light

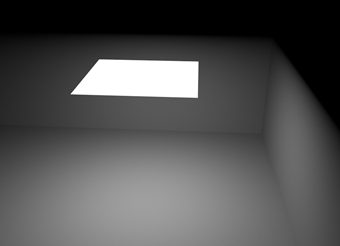

Rectangular Light

Use these to creating area lights to connect to HDR Light Studio. See How to Connect Area Lights to HDRLS.

In Render Settings, enable Precomputed + Shadow, Precomputed + IBL, or Full Global Illumination for the correct diffuse, glossy, and specular reflections, as well as shadows from area lights. Also, pay attention to the area light's actual 3D position inside the scene. If the area light is outside the dome (environment geometry), it won't be seen inside the dome or in the specular reflections. To correct this, place the area light within the dome and enlarge the dome. By default, the dome has a radius of 10,000 mm (10 meters).

IES Profiles and Ray Files (VRED Professional only)

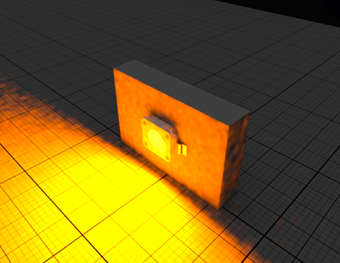

Ray Light

Ray light files contain the simulated spatial and angular distribution, as well as photometric or spectral information of emitted light from a complex light source.

The shadows generated by more than one light source on an object, add up where they overlap. Similar to new geometry, the newly created light source appears at (0,0,0), by default, whether or not an object is selected. Location, size, angle, and so on, can be modified by using the Transform Manipulator.

VRED can read ray files in the following formats:

• plain ASCII format
• LucidShape's ASCII and binary formats
• spectral LucidShape ray file format
• Osram's ASCII format

The basic method is to use photon mapping, which is easy to set up and accurately recreates the illumination stored in the ray file. However, since ray files are just a bunch of photons, they cannot be seen in specular reflections/refractions. Glossy reflections are also problematic, since you need a lot of rays for them to be noise free.

For the second method, you need the geometry the photons in the ray file originating from. If you have the geometry, you can turn it into a lightsource (in the material's Incandescence channel: select Evaluate Ray Lights). Whenever a ray hits the light geometry, a view-dependent lookup into the ray file is performed. With this approach, you do not need to use photon mapping. You can "look directly into" the light source and see the light in the specular reflections/refractions. Although you will get a noise-free image easier, it maybe not be as accurate.

VRED Professional only, Raytracing only, needs photon mapping or surface with ray light evaluation

IES Profiles

In Raytracing and OpenGL mode, these light types support an IES profile: Point light and Spot light.

In Raytracing mode, these light types support an IES profile: Disk light, Rectangular light, and Spherical light.

The correct way to use an IES profile is to load it into a point light. Use other types to achieve certain effects.

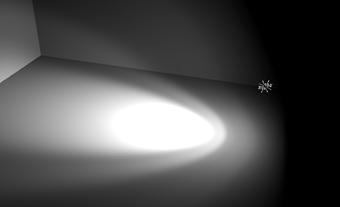

Point Light with IES profile (VRED Professional only, Raytracing or OpenGL)

Light Nodes in the Scene Graph

In VRED 2016 and previous versions, in the Scene Graph, there were two nodes for each light source. One node stored its transformation, in contrast to the second, which stored properties, such as color. Define which objects could be locally lit by the light source using the location of that second node in the Scene Graph hierarchy

Since VRED 2017, there is one node per light source in the Scene Graph, which stores both the transformation and other properties of the light, such as color. Since the position of that node in the Scene Graph is not relevant when it comes to local lighting, use Light Link Sets in the Light Editor to define local lighting of objects.
