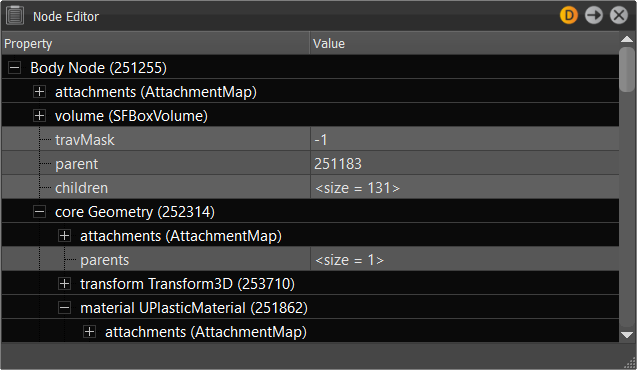

Viewing and Editing Node Information

The Node Editor provides information about any node in a scene. You can view detailed information about selected nodes, change values, and attach custom attributes to nodes.

For example, use the Node Editor to set up the ranges for a DistanceLOD. Which child should be drawn for which distance range, set the parameters of the range property, and so on.

Accessing the Node Editor

1. In the Menu Bar, click Scene > Scene Graph.
2. In the Scene Graph, select the node you want to work with.
3. In the Menu Bar, click Scene > Node Editor.

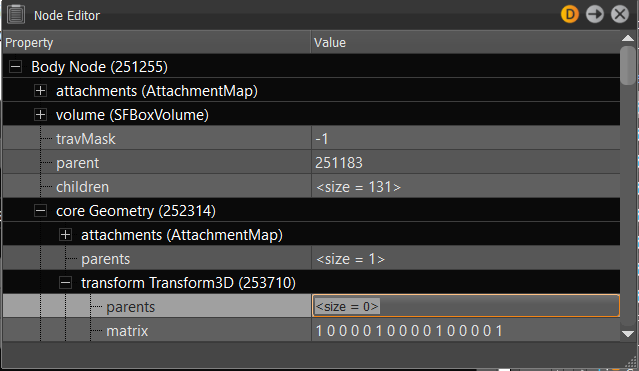

Editing in the Node Editor

With the Node Editor open, click the field to the right of an option, then enter another value.
