VolumeDocking サンプル スクリプト

説明:

次のサンプルは、Laszlo Sebo の VolumeDocking01.max シーンに基づいています。このサンプルでは、パーティクル フロー での次の MAXScript 操作について説明します。

用途:

このスクリプトは自己収容型で、すべてのオブジェクトと パーティクル フロー イベントおよびアクションを迅速に作成できます。

効果:

このスクリプトは、対応するアクションおよびイベントを備えたジオメトリ プリミティブと PF_Source を 2 つずつ作成します。

ジオメトリ オブジェクトは、パーティクルを塗り潰すボリュームとして使用されます。パーティクルの初期位置は、particleVector チャネルにダンプされます。パーティクルは、Find_Target アクションを使って、一方のボリュームからもう一方のボリュームへの道筋を検出し、旋回して位置を切り替えます。

例:

    -----------------
    -- SCENE SETUP --
    -----------------

    -- Set scene animation range to 150 frames
    animationRange = interval 0f 150f
    -- Create Cylinder primitive
    cyl=cylinder radius:44 height:44 heightsegs:5 sides:18 pos:[-60, -55, 0]
    -- Create a Torus primitive
    tor=torus radius1:55 radius2:20 smooth:2 pos:[135, 120, 0]
    -- Create a Vortex Space Warp
    vor=vortex timeOff:33 axialStrength:22 rotationStrength:33 iconSise:40 rotation:(quat -1 0 0 0) pos:[20,35,-5]

    -- PF_Flow setup
    pf=PF_Source Show_Logo:off Show_Emitter:off Quantity_Viewport:100 isSelected:true

    -------------------------------------
    -- Action List - Appending Example --
    -------------------------------------

    -- Disable automatic Event Encapsulation & begin editing:
    ParticleFlow.BeginEdit()
    a1 = RenderParticles()--define Action 1
    pf.AppendAction a1--append the Action to PF_Source
    ParticleFlow.EndEdit()--End editing, enable Auto-Encapsulation

    x=y=1--Initialize two variables
    --Get the location of the PF_Source in Particle View:
    pf.GetPViewLocation &x &y

    ------------------------
    -- Define First Event --
    ------------------------
    ParticleFlow.BeginEdit()--start editing
    -- Create a Birth Action for Event 1
    ev1_a1 = Birth Emit_Start:0 Emit_Stop:0 Amount:300

    -- Create a Position Object Action for Event 1
    ev1_a2 = Position_Object Location:4 Emitter_Objects:#(tor) name:"PositionObjectFirst"
    -- Comment the Position Object
    pf.SetComments ev1_a2 "The operator defines the destination point inside the target volume"

    -- Create a Script Operator
    ev1_a3 = Script_Operator()
    -- Set the script operator’s script code as string.
    -- The code enables Position and Vector channels,
    -- the writes the particle position in the Vector channel
    -- for all new particles.
    ev1_a3.proceed_script = "on ChannelsUsed pCont do
    (
     pCont.usePosition = true
     pCont.useVector = true
    )
    on Init pCont do
    (\n
    )
    on Proceed pCont do
    (
     count = pCont.NumParticles()
     for i in 1 to count do
     (
     pCont.particleIndex = i
     if (pCont.particleNew) then
     ( pCont.particleVector = pCont.particlePosition)
     )
    )
    on Release pCont do
    (\n
    )"

    -- Comment the action:
    pf.SetComments ev1_a3 "The script is used to dump particle position to script vector channel"

    -- Clone the Position_Object action from Event 1
    -- The result of the cloning will be stored in the
    -- by-reference variable dc.
    maxOps.cloneNodes ev1_a2 newNodes:&dc
    -- Get the clone (first element of array)
    ev1_a4 = dc[1]
    -- Set the name of the action
    ev1_a4.name ="PositionObjectSecond"
    -- Set the Cylinder as the Emitter
    ev1_a4.Emitter_Objects = #(cyl)

    -- Comment the action:
    pf.SetComments ev1_a4 "The operator defines the initial position of a particle inside a start volume. The destination position is overwritten but the real value is kept in Script Vector channel"

    -- Create some more actions needed to control the particle system
    ev1_a5 = Speed Direction:3
    ev1_a6 = Rotation()
    ev1_a7 = ShapeStandard Shape:1
    ev1_a8 = DisplayParticles Type:6 Color:(color 255 0 0)

    -- Create a new empty event, then append all already created
    -- actions to it:
    ev1 = Event()
    ev1.AppendAction ev1_a1
    ev1.AppendAction ev1_a2
    ev1.AppendAction ev1_a3
    ev1.AppendAction ev1_a4
    ev1.AppendAction ev1_a5
    ev1.AppendAction ev1_a6
    ev1.AppendAction ev1_a7
    ev1.AppendAction ev1_a8
    -- Disable editing, enable Auto-Event-Encapsulation
    ParticleFlow.EndEdit()

    -- Append the event as the Initial Action List to the PF_Source.
    -- This will connect the Event to the PF_Source.
    pf.appendInitialActionList ev1
    -- Position the Event inside the Particle View
    ev1.SetPViewLocation x (y+100)

    -------------------------------------
    -- Action List - Inserting Example --
    -------------------------------------

    --Begin Editing again
    ParticleFlow.BeginEdit()

    ev1_a9 = Spin SpinRate:200 Variation:55--Create a Spin action
    ev1_a10 = Force Influence:111--Create a Force
    --Set the Vortex as Space Warp in the Force
    ev1_a10.Force_Space_Warps = #(vor)

    --Create and setup a Find_Target action:
    ev1_a11 = Find_Target()
    ev1_a11.name ="FindTarget"
    ev1_a11.Cruise_Speed_Variation = 1000
    ev1_a11.Acceleration_Limit=3000
    ev1_a11.Aim_Point_Type = 2
    ev1_a11.Icon_Size = 0

    -- Comment the action:
    pf.SetComments ev1_a11 "The destination point is defined by script vector. The script vector value was defined by the Script Operator 01 from the Position Object 01"

    -- Insert the new actions into the existing Event
    ev1.InsertAction ev1_a9 8
    ev1.InsertAction ev1_a10 9
    ev1.InsertAction ev1_a11 10
    ParticleFlow.EndEdit()

    -- Create a Second Event and its actions:
    ParticleFlow.BeginEdit()
    ev2_a1 = Speed Speed:0
    ev2 = Event()
    ev2_a2 = DisplayParticles Type:6 Color:(color 0 255 0)
    ev2.AppendAction ev2_a1
    ev2.AppendAction ev2_a2
    ParticleFlow.EndEdit()

    --Connect the second Event to the Find_Target
    ev1_a11.setNextActionList ev2 ev1_a11
    --Reposition the even
    ev2.SetPViewLocation x (y+400)


    -- Make copy of PF_Source and exchange Emitter objects
    -- for Position_Object operators:

    -- Clone the PF_Source and the two Emitters,
    -- store the clones in a by-reference variable
    maxOps.CloneNodes #(pf, ev1, ev2) newNodes:&dc

    -- Get the PF_Source and Emitter clones
    pfc = dc[1]
    ev1c = dc[2]
    ev2c = dc[3]

    -- Get the current position of the Particle View...
    x=y=1
    pfc.GetPViewLocation &x &y
    -- Reposition the two Events
    ev1c.SetPViewLocation x (y+100)
    ev2c.SetPViewLocation x (y+400)

    -- Copy the emitter objects from the original Position_Objects
    if $PositionObjectFirst01 != undefined then (
     $PositionObjectFirst01.Emitter_Objects = ev1_a4.Emitter_Objects
    )
    if $PositionObjectSecond01 != undefined then (
     $PositionObjectSecond01.Emitter_Objects = ev1_a2.Emitter_Objects
    )

    -- Bind the Find_Target Test output to the clone of the Second Event
    if $FindTarget01 != undefined then (
     $FindTarget01.setNextActionList ev2c $FindTarget01
    )

    -- Switch to Modify Tab
    max modify mode
    -- Open Particle View to see what happened...

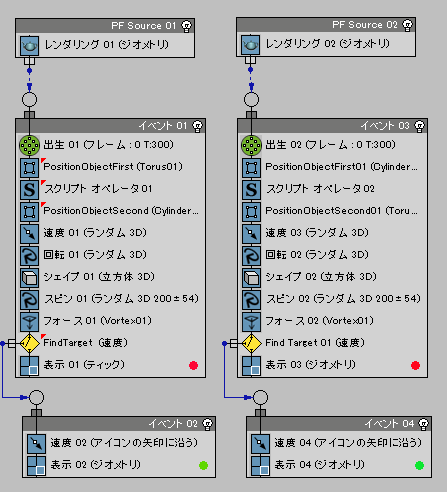

    ParticleFlow.OpenParticleView()
