スクリプト化された Position テストの例

説明:

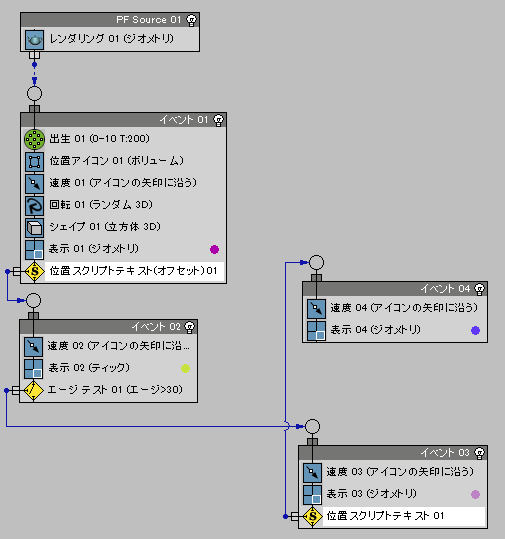

次の例は、Script_Test テストアクションを使って、スクリプト化された Position テストと、相対オフセットおよび絶対位置オプションを実装します。

用途:

2 つのスクリプトは、Script_Test: ヘルパーアクション内で使用します。

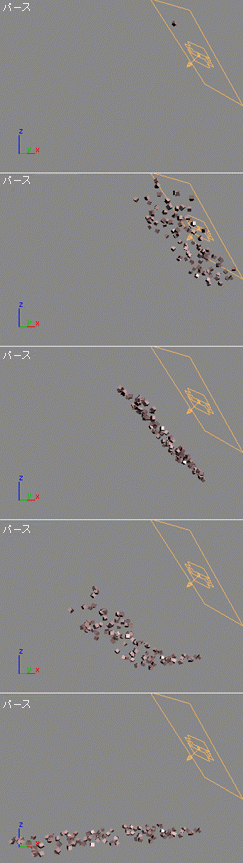

効果:

PF_Source から生成されたパーティクルは、Z 軸方向の発生位置について相対オフセット -100 のテストを受けます。
スクリプト化されたオフセットテストの条件を満たすパーティクルは、次のイベントに渡され、エージが 30 を超えるかどうかのテストを受けます。
Age Test テストの条件を満たすパーティクルは、3 番目のイベントに渡され、2 番目のスクリプトを使って、ワールド Z 軸方向の絶対オフセット -200 のテストを受けます。
スクリプト化された位置テストの条件を満たすパーティクルは、最後のイベントに渡され、停止します。

スクリプト:

    --The ChannelsUsed handler defines the channels
    --to be made available to the script.
    --For the list of all channels, see
    --Interface: MaxscriptParticleContainer
    --The parameter pCont passed to the handler
    --contains the Particle Container the script is applied to
    on ChannelsUsed pCont do
    (
    pCont.useTime = true
    pCont.usePosition = true
    )

    --The Init handler is called on initialization.
    --In this case, it is used to define the offset parameters
    on Init pCont do
    (
    --Data paramters definition
    struct paramsStruct (cond_less, axis, testpos, offset)
    global paramsData = paramsStruct()

    --true means less than, false means greater then
    paramsData_offset.cond_less = true
    --Axis option: x=1, y=2, z=3
    paramsData_offset.axis = 3
    --When set to true, the offset test is relative
    --When set to false, the offset test is absolute.
    paramsData_offset.offset = true
    --Set the offset value to test for
    paramsData_offset.testpos = -100

    -- collects initial pos of each particle for offset test
    global pos_init_array =#()
    )

    --In the Proceed handler, the actual testing is performed

    on Proceed pCont do
    (
    count = pCont.NumParticles()

    for i in 1 to count do
    (
    pCont.particleIndex = i
    -- get ID of active particle
    id = pCont.getParticleID pCont.particleIndex
    if paramsData.cond_less == true then
    (
    if paramsData.offset == true then
    (
    -- collect initial pos for new born particle
    if pCont.particleNew == true then
    append pos_init_array pCont.particlePosition[paramsData.axis]
    pos_id = pCont.GetParticlePositionByID id
    if pos_id[paramsData.axis] < (pos_init_array[id] + paramsData.testpos) then
     testSatisfied = true
    )
    else
    (
    if pCont.particlePosition[paramsData.axis] < paramsData.testpos then
    testSatisfied = true
    )
    )
    else
    (
    if paramsData.offset == true then
    (
    -- collect initial pos for new born particle
     if pCont.particleNew == true then
    append pos_init_array pCont.particlePosition[paramsData.axis]
    pos_id = pCont.GetParticlePositionByID id
     if pos_id[paramsData.axis] > (pos_init_array[id] + paramsData.testpos) then
    testSatisfied = true
    )
    else
    (
     if pCont.particlePosition[paramsData.axis] > paramsData.testpos then
    testSatisfied = true
    )
    )
    if testSatisfied == true then
    (
    pCont.particleTestStatus = true
    pCont.particleTestTime = pCont.particleTime
    )
    )
    )

    on Release pCont do
    (
    )

スクリプト 2

    on ChannelsUsed pCont do
    (
    pCont.useTime = true
    pCont.usePosition = true
    )
    on Init pCont do
    (
    --Data paramters definition
    struct paramsStruct (cond_less, axis, testpos, offset)
    global paramsData = paramsStruct()

    --true means less than, false means greater then
    paramsData.cond_less = true

    --Axis option: x=1, y=2, z=3
    paramsData.axis = 3
    --When set to false, the offset test is absolute.
    --When set to true, the offset test is relative
    paramsData.offset = false
    --Set the position value to test
    paramsData.testpos = -200

    -- Collects initial pos of each particle for offset test:
    global pos_init_array =#()
    )

    --The Proceed handler is identical to the one in the first script.
    --Only the test parameters defined in the Init handler alter the
    --behavior of the script!

    on Proceed pCont do
    (
    count = pCont.NumParticles()

    for i in 1 to count do
    (
    pCont.particleIndex = i
    -- get ID of active particle
    id = pCont.getParticleID pCont.particleIndex
    if paramsData.cond_less == true then
    (
    if paramsData.offset == true then
    (
    -- collect initial pos for new born particle
    if pCont.particleNew == true then
    append pos_init_array pCont.particlePosition[paramsData.axis]
    pos_id = pCont.GetParticlePositionByID id
    if pos_id[paramsData.axis] < (pos_init_array[id] + paramsData.testpos) then
     testSatisfied = true
    )
    else
    (
    if pCont.particlePosition[paramsData.axis] < paramsData.testpos then
    testSatisfied = true
    )
    )
    else
    (
    if paramsData.offset == true then
    (
    -- collect initial pos for new born particle
    if pCont.particleNew == true then
    append pos_init_array pCont.particlePosition[paramsData.axis]
    pos_id = pCont.GetParticlePositionByID id
    if pos_id[paramsData.axis] > (pos_init_array[id] + paramsData.testpos) then
    testSatisfied = true
    )
    else
    (
    if pCont.particlePosition[paramsData.axis] > paramsData.testpos then
    testSatisfied = true
    )
    )
    if testSatisfied == true then
    (
    pCont.particleTestStatus = true
    pCont.particleTestTime = pCont.particleTime
    )
    )
    )

    on Release pCont do
    (
    )
