Create or edit a reference or construction plane

Use the Plane tool to create a reference plane which you can use as input to tools requiring a plane, or as the construction plane.

Create a reference or construction plane

  1. In the Construction tool palette, click the Plane tool constructiongtplane.

    Five buttons appear at the bottom of the view window. Each allows you to create a different type of construction plane. The five types are:

    View

    This is a 1-point construction plane where you specify the center point of the plane. The plane is oriented so that the Z-axis is parallel to the view vector. You can also snap the point to any geometry.

    Slice

    This is a new type of plane where you specify 2 points. The third point is placed at the eye position so that you are looking at the plane from the edge. This type of plane is useful for defining cross sections.

    3 Pt

    This is the regular 3-point construction plane where you completely define the plane by inputting three points.

    Geom

    This lets you snap the center point of the plane to geometry so that the Z-axis is oriented along the surface normal or curve tangent.

    World

    This is also a 1-point plane. You specify the center point and the three axes are oriented along the world axes. You can snap the point to any geometry. Note that View, Geom, and World planes have manipulators that you can use to tweak the orientation of the plane.
  2. Select the type of plane you want to create.

    (The on-screen buttons are optional. You can ignore them by clicking in the display—the selection from the option window will be used instead.)

  3. Click to place one, two, or three points, according to the instructions on the prompt line. You can also type the 3D coordinates for a point.

  4. Adjust the plane by moving the point(s), or using the manipulator (if available), to move, rotate, and size the plane.

  5. To make this plane a reference plane, and go on to create another plane, click Next Plane.

    To make this plane the construction plane, click Set Construction Plane.

    Note:

    There can only be one construction plane in a scene. If you create a construction plane and there is already a construction plane in the scene, the existing construction plane will become a reference plane.

    You can position and rotate the construction plane freely, or constrain it in relation to a curve or surface.

How to use the plane manipulator

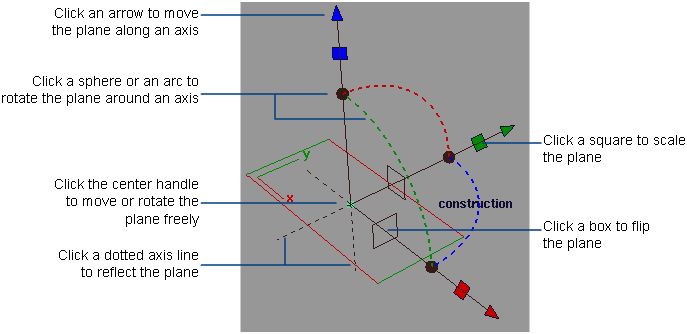

Aids_composite_graphics0001

Click a handle to select it (the handle becomes white), then either:

Interactive manipulation

Edit a reference or construction plane

  1. Pick the plane.

  2. In the Construction tool palette, click the Plane tool constructiongtplane.

    The points and manipulator (if applicable to this type of plane) appear.

    Note:

    You can also select the Plane tool first, then select the plane you want to edit.

  3. Adjust the plane by dragging the point(s), or using the manipulator.

    Tip:

    Open the Information window (Windows > Information > Information Window ) to see detailed information as you manipulate the plane.

  4. To make the plane a reference plane and go on to create another plane, click Next Plane.

    To make this plane the construction plane, click Set Construction Plane.

    Note:

    There can only be one construction plane in a scene. If you create a construction plane and there is already a construction plane in the scene, the existing construction plane will become a reference plane.

Choose a construction plane

Hide or show reference/construction planes

Delete a reference/construction plane

  1. Pick only the reference/construction plane.
  2. Press the key, or choose Delete > Delete Active from the menus.

Snap to the intersection of a curve and a plane

You can easily snap to a curve that intersects a construction plane, and position the snap point either anywhere along the curve, or precisely at the point where the curve and plane intersect.

If True Intersections is checked in Curve Snap Options, and you drag the snap point close to the construction plane, a yellow cross appears on the plane indicating that the snap point is precisely at the intersection point.

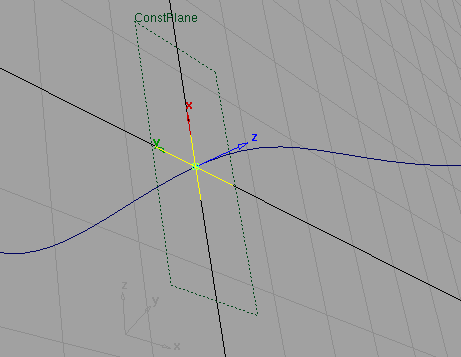

curveSnapConstPlane
