Fill Analysis Quick Start Tutorial

In this tutorial, you simulate the filling phase in a part. The feed system is not included. The filling phase is the most important phase of the injection molding cycle. If there are problems with the filling of a part, the part quality is not optimal.

Attention Download the files for this tutorial from Autodesk Knowledge Network-New User Quick Start tutorial.

In this tutorial, you will do the following:

Create a project
Import a CAD model
Investigate different injection locations
Set processing conditions and run the analysis
View results

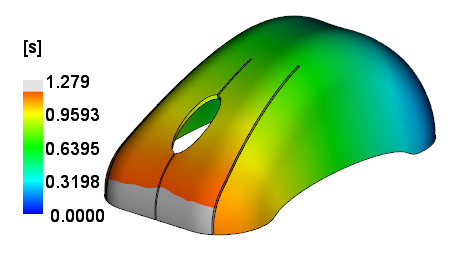

Fill Time
