Tutorial A6: Define Dynamics Setup and Run Analysis

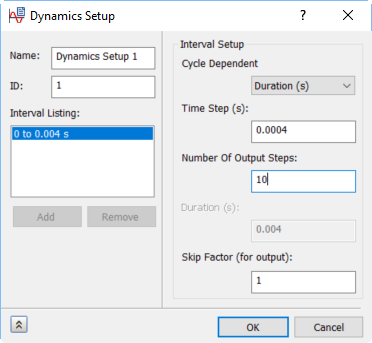

  1. In the Part tree, right-click Dynamics Setup 1 > Edit.
  2. Enter the following values where shown:
    • Dependent Term: Duration
    • Time Step: 0.0004
    • Number of Output Steps: 10
  3. Click OK to close the dialog.
  4. Click the Save button to save all the settings.
  5. Right-click Analysis 1 > Solve in Explicit > Solve to run the analysis.
Parent topic: Tutorial A6: Explicit Dynamics Analysis of a Beam
