What's New in AutoCAD Plant 3D 2023 Toolset

Learn about new features in this release of AutoCAD Plant 3D 2023 toolset.

Highlights

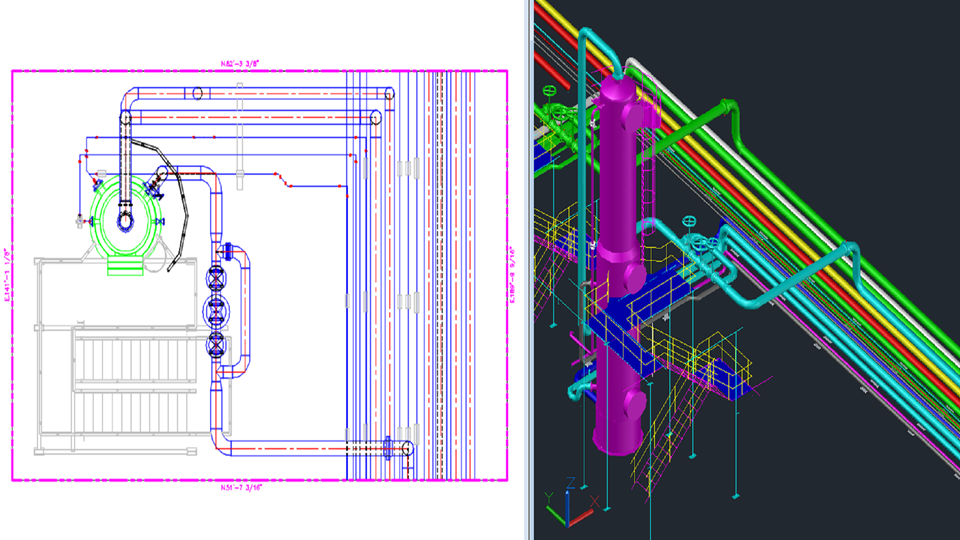

Ortho Single-Line Piping

Display piping in a single-line representation in orthographic drawings.

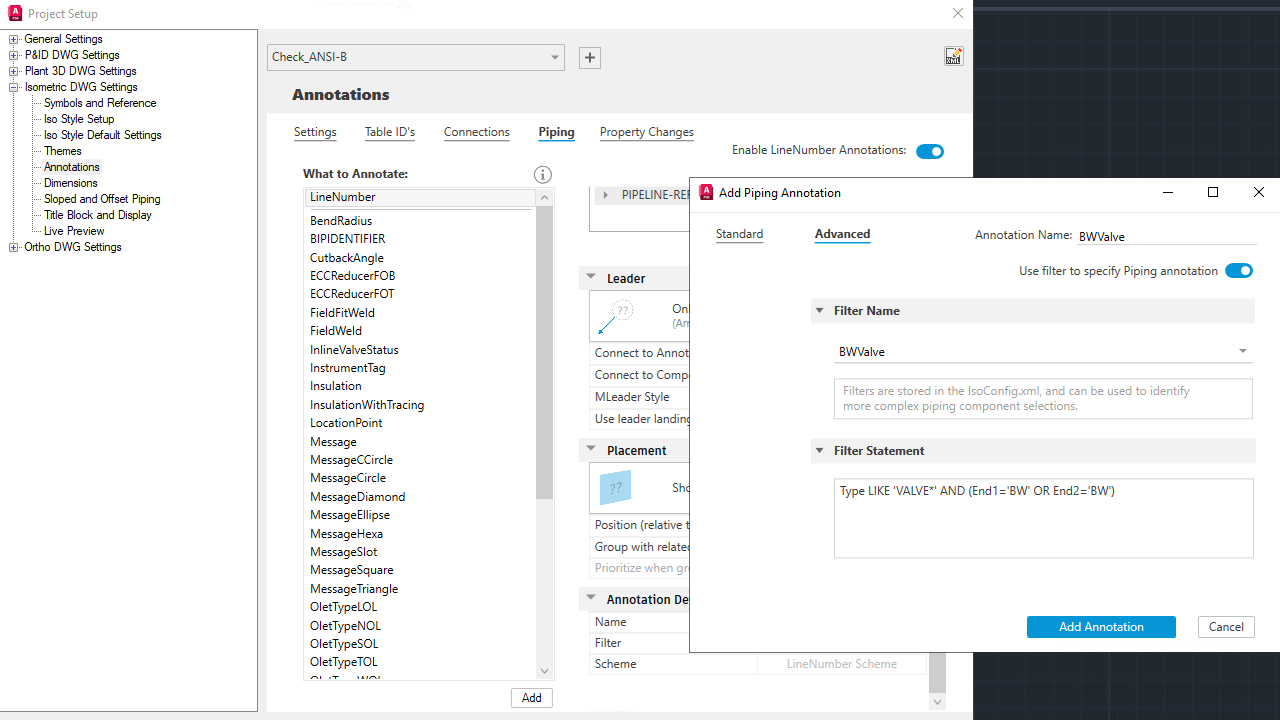

Isometric Annotation Setup

The annotation setup is redesigned with simplified options and more annotation capabilities for isometric drawings.

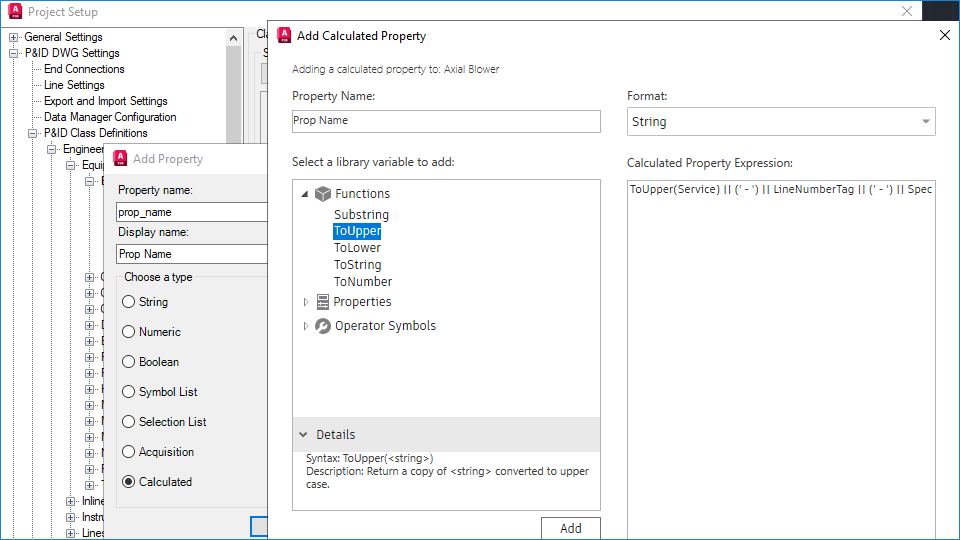

Calculated Properties

Add calculated properties from Project Setup for both P&ID and 3D piping classes.

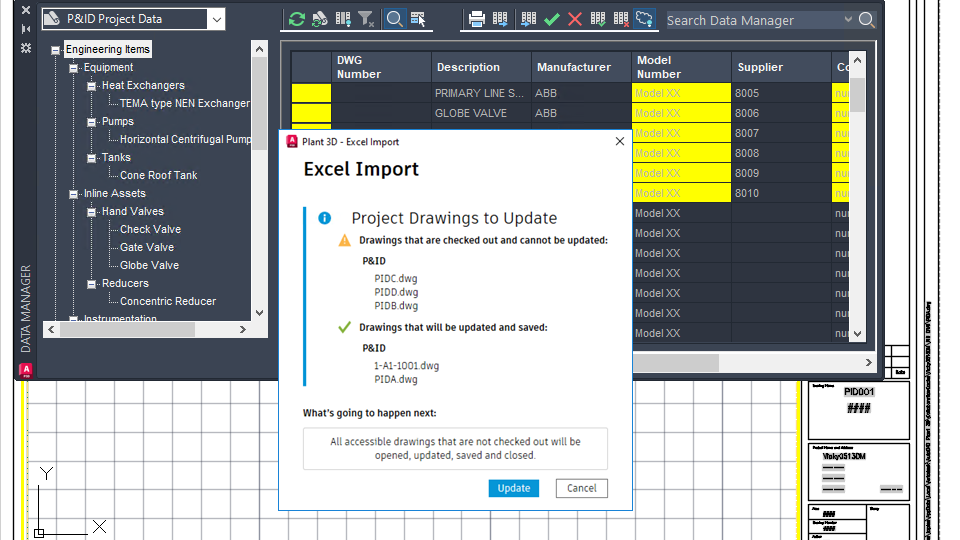

Data Manager Import from Microsoft Excel

The Excel Import dialog box displays when you import data from Excel and accept all changes that affect multiple drawings in Data Manager.

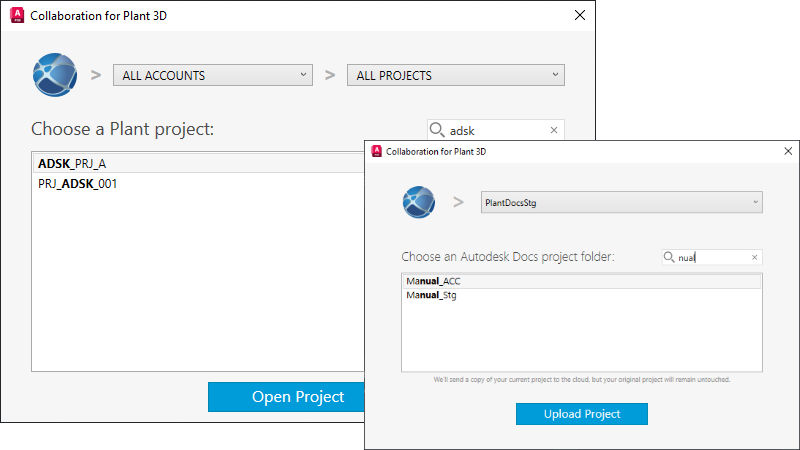

Search Project

Quickly filter projects when searching for collaboration and vault projects.

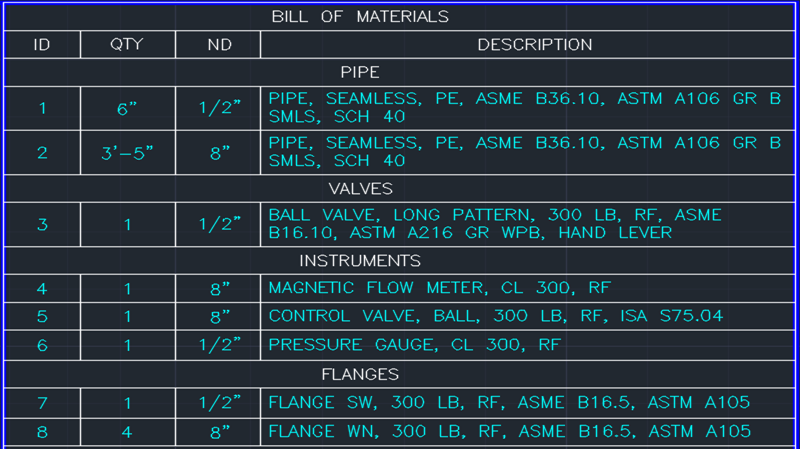

Iso BOM Instruments

Display in-line and off-line instruments in the BOM table in isometric drawings.

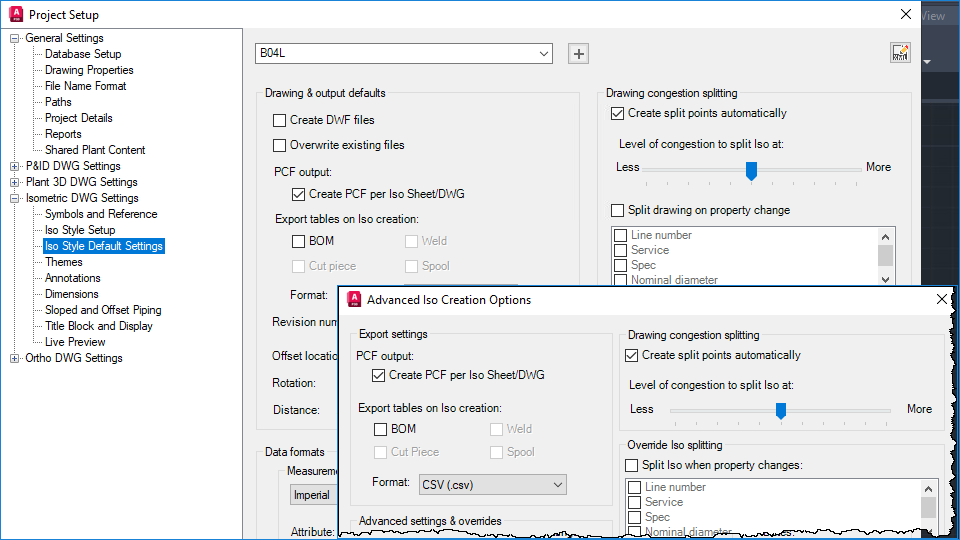

Single PCF Per Isometric Drawing

Enable single PCF per isometric drawing from Project Setup or Advanced Iso Creation Options dialog box without the need to manually modify the IsoConfig.xml.
