What's New in MCG 2018
What's New
In this topic, we cover the changes made to MCG in 3ds Max 2018. To explore these changes with a hands-on approach, we've also created a sample pack on The Area.
Renamed Operators and Compounds
The majority of the operators and compounds have been renamed based on a more consistent naming scheme. Moving forward, we hope the new naming scheme will make your operator searches more consistent and more reliable. The operators and compounds in MCG 2018 are listed at the bottom of this page.
To implement this renaming and to retain backwards compatibility with graphs authored in MCG 2017, we added the concept of an Identifier and a Display Name. These values are specified when you first save your graph, or via the MCG Editor > Edit > Graph Properties dialog.

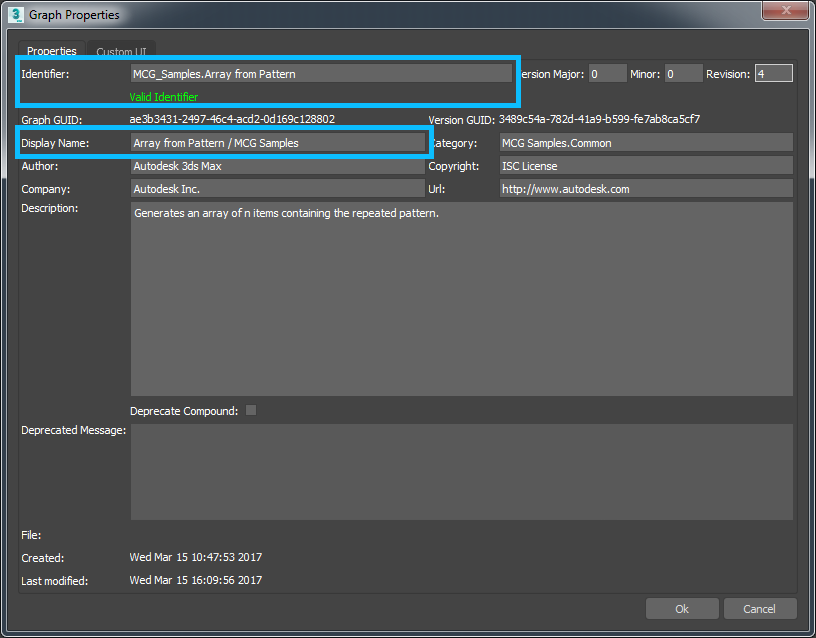

Identifier: A string which defines the unique name of the operator or compound. The identifier in MCG 2018 maps to the node name in MCG 2017. The identifier may contain alphanumeric characters, spaces, and punctuation. MCG will notify you if it encounters two entities with the same identifier.
- Changing a compound's identifier after it has been saved will break all the existing tools (.maxtool) and compounds (.maxcompound) in which it is used, with the exception of existing MCG packages (.mcg). A package is a copied snapshot of a tool and all its required compounds, so changing the identifier of an external compound will not break the functionality of existing packages.
- The filename will be used if the identifier is not defined within the file.
- Tip: when you save a new compound, make sure you specify a suitably unique identifier. Consider adding a personalized prefix to avoid collisions, for example:
MCG_Samples.Array from Pattern.
Display Name: The string to display in the node editor's interface, namely in the title bar, the operator depot, the search box, and the property panel.
- You may safely rename a compound by modifying its display name. Doing so will not break any existing tools or compounds.
- The filename will be used if the display name is not defined within the file.
- Tip: to avoid long node names, and to quickly identify your compounds in the editor, consider adding a suffix to your display names. For example, the
/ MCG SamplesinArray from Pattern / MCG Samples, and can be quickly queried in the editor's search box.
Improved MCG Package Installation
In previous versions of MCG, the installation of a package (.mcg) was performed as a file extraction into a common loading path. This often resulted in previously installed tools becoming invalid due to compound collisions.
In MCG 2018, package installation has been greatly improved. Package files are now simply copied into your user directory C:\Users\<username>\Autodesk\3ds Max 2018\Max Creation Graph\Packages, and read as a self-contained entities. Installing a package no longer carries the risk of invalidating tools, and no longer pollutes your authoring workspace with duplicate compounds.
To extract a package and use its compounds in your authoring space, select MCG Editor > File > Unpack Package. Keep in mind that unpacking a package may cause compound collisions, and you may need to manually delete duplicate files.
Mapped Connections

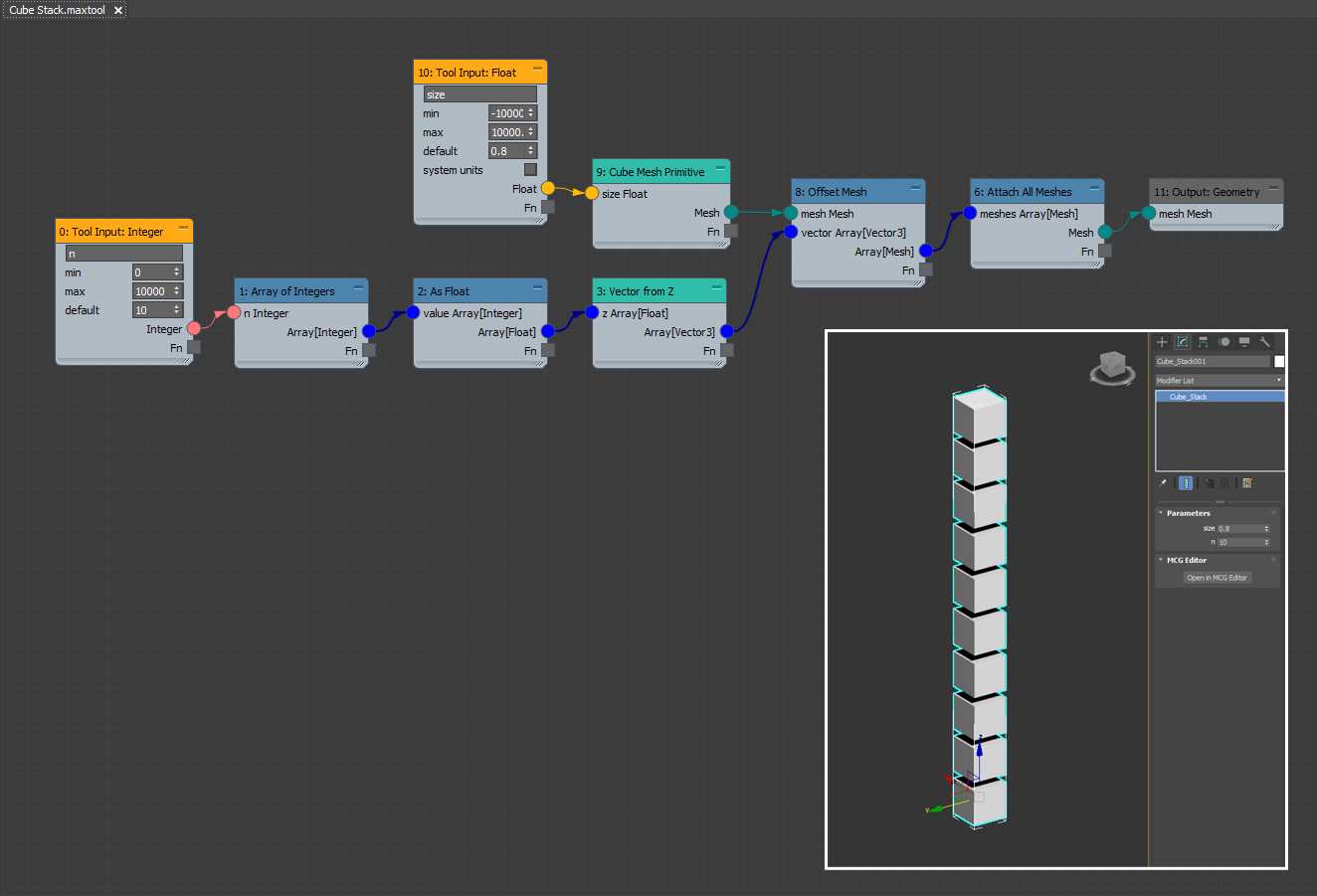

To reduce the need of For Each (previously known as Map), you can now connect a compatible array directly into a node to convert the operation into a mapped connection. A mapped connection is an automatic way of applying an operation to each item in an array. See here for more information on mapped connections and their requirements.
MCG Editor Improvements
Live Types
The editor now provides you with dynamic information about the types flowing through your graphs. You are not prevented from creating invalid connections between nodes, however these will now appear in red if the connection's endpoint types are incompatible.
Undo/Redo
The MCG Editor now supports Undo and Redo for virtually all common operations, such as node creation, deletion, moving, grouping, and connecting. Access this function from the Editor's Edit menus, or Ctrl+Z (undo) and Ctrl+Y (redo) keyboard shortcuts.

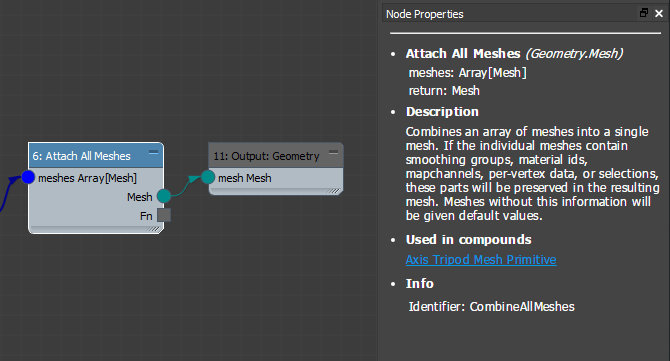

Node Properties Panel
We've updated the Node Properties panel to display information about the selected node, as well as links to the node's usage in other compounds.
All Operators and Compounds
To help you get familiar with the new naming scheme, we have listed all the operators and compounds available in MCG 2018. The node name in MCG 2018 appears in the Display Name column, while its MCG 2017 name appears in the Identifier column. Consider searching (CTRL+F) on this page to discover the mapping between the two names. Consult the node properties panel in the MCG editor for more information about a specific node's description (most of which have been completely revamped), or its deprecation status.
- The NEW status indicates an added operator or compound in MCG 2018 - this identifier will not be present in MCG 2017.
- The DEPRECATED status indicates that we have marked the operator or compound for removal in a later version, but that it will still work in this version. Many operators and compounds are being deprecated due to duplicate functionality, or because we chose to promote the compound as a native operator.
- The REMOVED status indicates that we have removed the node from the authoring space because it was deemed too specific or too fragile for general use. Note that the compounds related to the CFD tools are still embedded within the CFD .mcg packages under the
C:\Program Files\Autodesk\3ds Max 2018\MaxCreationGraph\Packagesinstallation folder, so you may unpack these packages to access their compounds. - Compounds in this table are denoted in italics.
| Status | Display Name (2018) | Identifier (2017) | Category |
|---|---|---|---|
| Evaluate MAXScript | EvalMAXScript | ||
| ScriptValue to Boolean | FPValueToBool | ||
| ScriptValue to Float | FPValueToFloat | ||
| ScriptValue to Integer | FPValueToInt | ||
| ScriptValue to Matrix | FPValueToMatrix | ||
| ScriptValue to SceneNode | FPValueToNode | ||
| ScriptValue to String | FPValueToString | ||
| ScriptValue to Texmap | FPValueToTexmap | ||
| ScriptValue to Vector | FPValueToVector3 | ||
| Camera FOV | FieldOfView | ||
| Height from Vertical FOV | HeightFromVFOV | ||
| Render Settings Aspect Ratio | RenderSettingsAspectRatio | ||
| Render Settings Height | RenderSettingsHeight | ||
| Render Settings Pixel Aspect Ratio | RenderSettingsPixelAspectRatio | ||
| Render Settings Width | RenderSettingsWidth | ||
| SceneNode Camera | CameraFromNode | ||
| Vertical FOV from Camera FOV | VerticalFOV | ||
| Width from Camera FOV | WidthFromFOV | ||
| All SceneNodes | AllNodes | ||
| Clone as Copy | CloneAsCopy | ||
| Clone as Instance | CloneAsInstance | ||
| Clone as Reference | CloneAsReference | ||
| Clone Hierarchy as Copy | CloneTreeAsCopy | ||
| Clone Hierarchy as instance | CloneTreeAsInstance | ||
| Clone Hierarchy as Reference | CloneTreeAsReference | ||
| Create Editable Mesh | CreateEditableMesh | ||
| Create Editable Spline | CreateEditableSpline | ||
| NEW | Current SceneNode Selection | Current_SceneNode_Selection | |
| Exit If SceneNode Is Invalid | CheckNodeValidity | ||
| Root SceneNode | SceneRoot | ||
| SceneNode Array Average World Position | NodePosAverage | ||
| SceneNode Children | ChildNodes | ||
| SceneNode from Name | NodeFromName | ||
| SceneNode Has Mesh | CanGetMeshFromNode | ||
| SceneNode Has Spline | CanGetSplineFromNode | ||
| SceneNode Is Scene Root | IsSceneRoot | ||
| SceneNode Is Valid | IsValidNode | ||
| SceneNode Mesh | MeshFromNode | ||
| SceneNode Mesh at Time | MeshFromNodeAtTime | ||
| SceneNode Mesh BoundingBox | BoundingBoxFromNode | ||
| SceneNode Mesh in Tool Space | NodeMeshInLocalSpace | ||
| SceneNode Mesh in World Space | NodeMeshInWorldSpace | ||
| SceneNode Mesh or Box Mesh | NodesMeshOrBox | ||
| SceneNode Mesh or Tetrahedron Mesh | NodeMeshOrTetrahedron | ||
| SceneNode Name | NodeName | ||
| SceneNode Parent | ParentNode | ||
| SceneNode Set Parent | SetParent | ||
| SceneNode Spline | SplineFromNode | ||
| NEW | SceneNode Spline in Tool Space | SceneNode Spline in Tool Space | |
| NEW | SceneNode Spline in World Space | SceneNode Spline in World Space | |
| NEW | SceneNode Transform in Tool Space | SceneNode Transform in Tool Space | |
| SceneNode Tree | NodeTree | ||
| SceneNode World X Axis | NodeXAxis | ||
| SceneNode World Y Axis | NodeYAxis | ||
| SceneNode World Z Axis | NodeZAxis | ||
| Select SceneNodes | SelectNodes | ||
| Live Particle Count | LiveParticleCount | ||
| Particle Ages | ParticleAges | ||
| Particle Count | ParticleCount | ||
| Particle Group Time | ParticleGroupTime | ||
| Particle Lifespans | ParticleLifespans | ||
| Particle Orientations | ParticleOrientations | ||
| Particle Positions | ParticlePositions | ||
| Particle Selections | ParticleSelections | ||
| Particle Sizes | ParticleSizes | ||
| Particle Spins | ParticleSpins | ||
| Particle Tension | ParticleTension | ||
| Particle Transforms | ParticleTMs | ||
| Particle Velocities | ParticleVelocities | ||
| Particle XYZ Sizes | ParticleXYZSizes | ||
| SceneNode Has Particles | CanGetParticlesFromNode | ||
| SceneNode Particles at Time | ParticlesFromNode | ||
| SceneNode Local Transform | LocalTransform | ||
| SceneNode Pivot Offset | ObjectOffsetPosition | ||
| SceneNode Set Pivot Offset | SetObjectOffsetPosition | ||
| SceneNode Set World Position | SetNodePosition | ||
| SceneNode Set World Transform | SetNodeTransform | ||
| SceneNode World Position | NodePosition | ||
| SceneNode World Transform | ObjectTransform | ||
| SceneNode World Transform Before Pivot | WorldTransform | ||
| SceneNode World Transform Before Pivot at Time | WorldTransformAtTime | ||
| SceneNode World Transform Before WSM | ObjectTransformBeforeWSM | ||
| Animation Playback End | AnimationPlaybackEnd | ||
| Animation Playback Start | AnimationStartTime | ||
| At Time Context | AtTimeContext | ||
| Frames to Seconds | FramesToSeconds | ||
| Frames to Ticks | FramesToTicks | ||
| Seconds to Frames | SecondsToFrames | ||
| Seconds to Ticks | SecondsToTicks | ||
| Ticks to Frames | TicksToFrames | ||
| Ticks to Seconds | TicksToSeconds | ||
| Append | Append | ||
| Append If | AppendIf | ||
| NEW | Array Is Empty | Array_Is_Empty | |
| Average Float | Average | ||
| Average Vector | AverageVector | ||
| Count | Count | ||
| Flatten | Flatten | ||
| NEW | Group by Key | Group_by_Key | |
| Insert | Insert | ||
| Is Equal to Previous | SameAsPreviousElement | ||
| Is Not Empty | NotEmpty | ||
| Join Arrays | Concatenate | ||
| Prepend | Prepend | ||
| Reverse | Reverse | ||
| Set Item | SetValue | ||
| Set Items | SetValues | ||
| Sort | Sort | ||
| Sort Array of Pairs | SortArrayOfPairs | ||
| Sort by Function | SortBy | ||
| NEW | Sort by Key | Sort_by_Key | |
| Sort Indices | SortedIndices | ||
| Sum | Sum | ||
| Transpose Array | TransposeArray | ||
| NEW | Empty Array | Empty_Array | |
| Empty Array of Bitmap | BitmapEmptyArray | ||
| Empty Array of Boolean | BooleanEmptyArray | ||
| Empty Array of BoundingBox | BoundingBoxEmptyArray | ||
| Empty Array of BoundingFrustum | BoundingFrustumEmptyArray | ||
| Empty Array of BoundingSphere | BoundingSphereEmptyArray | ||
| Empty Array of Constraint | ConstraintEmptyArray | ||
| Empty Array of Edge | EdgeEmptyArray | ||
| Empty Array of Face | Face3EmptyArray | ||
| Empty Array of Face4 | Face4EmptyArray | ||
| Empty Array of Float | SingleEmptyArray | ||
| Empty Array of Integer | Int32EmptyArray | ||
| Empty Array of Line | LineEmptyArray | ||
| Empty Array of MapChannel | MapChannelEmptyArray | ||
| Empty Array of Matrix | MatrixEmptyArray | ||
| Empty Array of Mesh | TriMeshEmptyArray | ||
| Empty Array of Octree | VertexOctreeEmptyArray | ||
| Empty Array of Particle | ParticleObjectEmptyArray | ||
| Empty Array of PhysicsWorld | WorldEmptyArray | ||
| Empty Array of Plane | PlaneEmptyArray | ||
| Empty Array of QuadMesh | QuadMeshEmptyArray | ||
| Empty Array of Quaternion | QuaternionEmptyArray | ||
| Empty Array of RandomGenerator | RandomEmptyArray | ||
| Empty Array of Ray | RayEmptyArray | ||
| Empty Array of RayTraceIntersection | RayTraceIntersectionEmptyArray | ||
| Empty Array of RayTraceScene | RayTraceSceneEmptyArray | ||
| Empty Array of Rectangle | RectangleEmptyArray | ||
| Empty Array of RigidBodyDynamics | RigidBodyDynamicsEmptyArray | ||
| Empty Array of SceneNode | INodeEmptyArray | ||
| Empty Array of Spline | SplineEmptyArray | ||
| Empty Array of String | StringEmptyArray | ||
| Empty Array of Texmap | TexmapEmptyArray | ||
| Empty Array of Vector | Vector3EmptyArray | ||
| Empty Array of Vector4 | Vector4EmptyArray | ||
| Array 1 | Unit | ||
| NEW | Array 2 | Array_2 | |
| NEW | Array 3 | Array_3 | |
| NEW | Array 4 | Array_4 | |
| Array of All Pairs | MakeAllPairs | ||
| Array of Alternating Items | SpliceAlternateElements | ||
| Array of Floats Exclusive | RangeExclusiveFloat | ||
| Array of Floats Exclusive with Maximum | RangeExclusiveFloatTo | ||
| Array of Floats Inclusive | RangeInclusiveFloat | ||
| Array of Floats Inclusive with Maximum | RangeInclusiveFloatTo | ||
| Array of Function | ArrayOfFunction | ||
| Array of Integers | Range | ||
| Array of Interpolated Vectors | ArrayOfLerpedVectors | ||
| Array of Item Index Pairs | ZipWithIndices | ||
| Array of Pairs | ZipToTuple | ||
| Array of Pairs from Value | MakePairsWith | ||
| Array of Sampled Floats | SampleLerp | ||
| Array of Sampled Integers | MapRange | ||
| Array of Scaled Vectors | OffsetVectors | ||
| Array of Stepped Integers | ArrayFromToStep | ||
| Array of Triples from Value | MakeTriples | ||
| Array of Value | ArrayOf | ||
| Generate Array | Generate | ||
| Generate Array of N | GenerateN | ||
| Indices | Indices | ||
| Aggregate | Aggregate | ||
| Aggregate with Index | AggregateWithIndices | ||
| Cartesian Product | CartesianProduct | ||
| Combine | Combine | ||
| Combine 3 | Combine3 | ||
| Combine Parallel | ParallelCombine | ||
| Flat Map | FlatMap | ||
| For Each | Map | ||
| For Each Parallel | ParallelMap | ||
| For Each with Index | MapWithIndexes | ||
| NEW | Array Default | Array_Default | |
| Array Max Values | ChooseMaximums | ||
| Array Maximum | MaximumElement | ||
| Array Min Values | ChooseMinimums | ||
| Array Minimum | MinimumElement | ||
| Array Minimum and Maximum | MinAndMaxElement | ||
| At | At | ||
| At Sub-Arrays | SubArrayAt | ||
| At with Modulo | ModuloArrayCycler | ||
| Breadth First Search from Indices | BreadthFirstSearchFromStartIndices | ||
| Breadth First Search Visit All | BreadthFirstSearchVisitAll | ||
| Contains | Contains | ||
| Filter | Filter | ||
| Filter with Index | FilterWithIndexes | ||
| First | First | ||
| NEW | First or Default | First_or_Default | |
| NEW | Group Indices by Value | Group Indices by Value | |
| Index of Function | IndexOf | ||
| Index of Item | IndexOfValue | ||
| Index of Lesser Item | IndexOfLesserElement | ||
| Index of Max Item | IndexOfGreaterElement | ||
| Index of Maximum | IndexOfMaximum | ||
| Index of Minimum | IndexOfMinimum | ||
| Index of Minimum and Maximum | IndexOfMinAndMax | ||
| Integer Array Minimum | IntArrayMinimum | ||
| Last | Last | ||
| Last Index | LastIndex | ||
| NEW | Last or Default | Last_or_Default | |
| NEW | Partial Sums | Partial_Sums | |
| Remove Duplicates | RemoveDuplicates | ||
| Remove Ends | RemoveEnds | ||
| Remove First | SkipOne | ||
| Remove Index | Remove | ||
| Remove Items | RemoveValues | ||
| Remove Last | DropLast | ||
| Remove Range | RemoveRange | ||
| NEW | Reverse Slices | Reverse Slices | |
| Second | Second | ||
| Select by Index | SelectByIndex | ||
| Skip | Skip | ||
| Slice | Slice | ||
| Slices | Slices | ||
| NEW | Sliding Window | Sliding_Window | |
| Stride | Stride | ||
| Strides | Strides | ||
| Take | Take | ||
| Third | Third | ||
| NEW | Valid Index | Valid Index | |
| Valid Indices | ValidIndices | ||
| Bitmap from File | LoadBitmapFromFile | ||
| Bitmap from Function | GenerateBitmapFromFunc | ||
| Bitmap from Pixels | ConstructBitmap | ||
| Bitmap from Texmap | RenderToBitmap | ||
| Bitmap from Width Height | CreateBitmap | ||
| Bitmap Height | BitmapHeight | ||
| Bitmap Pixel | GetPixel | ||
| Bitmap Pixels | GetPixels | ||
| Bitmap Set Pixel | SetPixel | ||
| NEW | Bitmap Set Pixels | Bitmap_Set_Pixels | |
| Bitmap Width | BitmapWidth | ||
| NEW | Exit If Texmap Is Invalid | CheckTexmapValidity | |
| Texmap Is Valid | IsValidTexmap | ||
| Write Bitmap to File | SaveBitmapToFile | ||
| Cache | CreateCache | ||
| Cache Contains Value at Depth | IsAValueCached | ||
| Cache Value Until Change | CacheValueUntilControlChanged | ||
| Cached Value | CachedValue | ||
| Currently Cached Value | ExtractCurrentValueFromCache | ||
| Force Update Cache | ForceUpdateCache | ||
| Previously Cached Value | ExtractPreviousValueFromCache | ||
| Static Cache | CreateStaticCache | ||
| Blend Chromatic | BlendChromatic | ||
| Blend Colors | BlendNColors | ||
| Blend Green Blue | BlendGreenBlue | ||
| Blend Red Blue | BlendRedBlue | ||
| Blend Red Green | BlendRedGreen | ||
| Chroma from RGB | ChromaFromRGB | ||
| Chroma from SL | ChromaFromSL | ||
| Chroma from SV | ChromaFromSV | ||
| Filter Color by Hue | FilterColorByHue | ||
| HSL from RGB | HSLFromRGB | ||
| HSV from RGB | HSVFromRGB | ||
| Hue from RGB | HueFromRGB | ||
| Interpolate HSL Color | ApplyHSLColor | ||
| Invert Color | InvertColor | ||
| Lerp Float 3 Midpoint Gamma | FloatLerp3MidpointGamma | ||
| Lightness from RGB | LightnessFromRGB | ||
| RGB from HSL | RGBFromHSL | ||
| RGB from HSV | RGBFromHSV | ||
| RGB from Hue | RGBFromHue | ||
| Secondary Color Value from Hue | SecondaryColorValueFromHue | ||
| Value from RGB | ValueFromRGB | ||
| Blue | Blue | ||
| Cyan | Cyan | ||
| Gray | Gray | ||
| Green | Green | ||
| Red | Red | ||
| Yellow | Yellow | ||
| Constant | Constant | ||
| Hash Code | HashCode | ||
| Pair | Pair | ||
| Pair Item 1 | PairItem1 | ||
| Pair Item 2 | PairItem2 | ||
| Triple | Triple | ||
| Triple Item 1 | TripleItem1 | ||
| Triple Item 2 | TripleItem2 | ||
| Triple Item 3 | TripleItem3 | ||
| Apply If | IfThen | ||
| Binary Recursion | BinaryRecursion | ||
| Breadth First Search | BreadthFirstSearch | ||
| Exit If | ExitIf | ||
| If | If | ||
| If Array Is Not Empty | IfArrayNonEmpty | ||
| If Float Is Greater Than or Equal to Zero | IfGreaterThanOrEqualToZero | ||
| If Float Is Greater Than Zero | IfSingleGreaterThanZero | ||
| If Integer Is Greater Than Zero | IfGreaterThanZero | ||
| Ignore First | IgnoreFirst | ||
| Ignore Second | IgnoreSecond | ||
| Integer Switch | SwitchOneTwoThree | ||
| Repeat | Repeat | ||
| Sequence | Sequence | ||
| Throw If | ThrowIf | ||
| Try Catch | TryCatch | ||
| While | While | ||
| As Boolean | AsBool | ||
| As Float | AsFloat | ||
| As Integer | AsInt | ||
| As String | AsString | ||
| Float as Integer | FloatAsInt | ||
| Integer as Float | IntAsFloat | ||
| To String | ToString | ||
| Apply 0 | Apply0 | ||
| Apply 1 | Apply1 | ||
| Apply 2 | Apply2 | ||
| Apply 3 | Apply3 | ||
| Apply 4 | Apply4 | ||
| Apply 5 | Apply5 | ||
| Apply Binary Function to Pair | ApplyBinaryFunctionToPair | ||
| Apply Ternary Function to Triple | ApplyTernaryFunctionToTriple | ||
| Bind | Bind | ||
| Bind 1 and 2 of 3 | Bind1And2Of3 | ||
| Bind 1 and 3 of 3 | Bind1And3Of3 | ||
| Bind 1 of 2 | Bind1of2 | ||
| Bind 1 of 3 | Bind1Of3 | ||
| Bind 2 and 3 of 3 | Bind2And3Of3 | ||
| Bind 2 of 2 | Bind2of2 | ||
| Bind 2 of 3 | Bind2Of3 | ||
| Bind 3 of 3 | Bind3Of3 | ||
| NEW | Bind All of 2 | Bind_All_of_2 | |
| NEW | Bind All of 3 | Bind_All_of_3 | |
| Compose | Compose | ||
| Value as Function | ValueAsFunction | ||
| Is Null | IsNull | ||
| Null | Null | ||
| Pass Through Any | Pass-through: any | ||
| Pass Through Array | Pass-through: array | ||
| Pass Through Bitmap | Pass-through: Bitmap | ||
| Pass Through Boolean | Pass-through: Boolean | ||
| Pass Through BoundingBox | Pass-through: BoundingBox | ||
| Pass Through BoundingFrustum | Pass-through: BoundingFrustum | ||
| Pass Through BoundingSphere | Pass-through: BoundingSphere | ||
| Pass Through Cache | Pass-through: cache | ||
| Pass Through Constraint | Pass-through: Constraint | ||
| Pass Through Edge | Pass-through: Edge | ||
| Pass Through Face | Pass-through: Face3 | ||
| Pass Through Face4 | Pass-through: Face4 | ||
| Pass Through Float | Pass-through: Single | ||
| Pass Through Function 0 | Pass-through: function0 | ||
| Pass Through Function 1 | Pass-through: function1 | ||
| Pass Through Function 2 | Pass-through: function2 | ||
| Pass Through Function 3 | Pass-through: function3 | ||
| Pass Through Integer | Pass-through: Int32 | ||
| Pass Through Line | Pass-through: Line | ||
| Pass Through MapChannel | Pass-through: MapChannel | ||
| Pass Through Matrix | Pass-through: Matrix | ||
| Pass Through Mesh | Pass-through: TriMesh | ||
| Pass Through Octree | Pass-through: VertexOctree | ||
| Pass Through Pair | Pass-through: tuple2 | ||
| Pass Through Particle Object | Pass-through: ParticleObject | ||
| Pass Through PhysicsWorld | Pass-through: World | ||
| Pass Through Plane | Pass-through: Plane | ||
| Pass Through QuadMesh | Pass-through: QuadMesh | ||
| Pass Through Quaternion | Pass-through: Quaternion | ||
| Pass Through RandomGenerator | Pass-through: Random | ||
| Pass Through Ray | Pass-through: Ray | ||
| Pass Through RayTraceIntersection | Pass-through: RayTraceIntersection | ||
| Pass Through RayTraceScene | Pass-through: RayTraceScene | ||
| Pass Through Rectangle | Pass-through: Rectangle | ||
| Pass Through RigidBodyDynamics | Pass-through: RigidBodyDynamics | ||
| Pass Through SceneNode | Pass-through: INode | ||
| Pass Through Spline | Pass-through: Spline | ||
| Pass Through String | Pass-through: String | ||
| Pass Through Texmap | Pass-through: Texmap | ||
| Pass Through Triple | Pass-through: tuple3 | ||
| Pass Through Vector | Pass-through: Vector3 | ||
| Pass Through Vector4 | Pass-through: Vector4 | ||
| Print Message | DisplayMessage | ||
| Trace | Trace | ||
| Trace Array | TraceEntireArray | ||
| Trace Array Range | TraceArray | ||
| Trace RigidBody | TraceRigidBody | ||
| Trace with Label | TraceWithPrompt | ||
| Attach All Meshes | CombineAllMeshes | ||
| Attach Meshes | CombineMeshes | ||
| Color Mesh | CFDColorVerticesUniformly | ||
| Empty Mesh | EmptyMesh | ||
| Filter Vertices | FilterVertices | ||
| Mesh Face Element Ids | FaceToElementsMapping | ||
| Mesh from Buffers | CreateMesh | ||
| Mesh from Face Vertices | CreateMeshFromVertices | ||
| Mesh from QuadMesh | Triangulate | ||
| Mesh from QuadMesh with Hidden Edges | ToTriMesh | ||
| Mesh Hide QuadMesh Edges | HideEveryThirdEdge | ||
| Mesh in Tool Space | MeshInLocalSpace | ||
| Mesh Index Buffer | MeshIndices | ||
| NEW | Mesh Is Empty | Mesh_Is_Empty | |
| NEW | Mesh Set Index Buffer | Mesh_Set_Index_Buffer | |
| Mesh Set SubObject Level | Mesh_Set_SubObject_Level | ||
| Mesh Set Vertex Buffer | SetMeshVertices | ||
| Mesh SubObject Level | Mesh_SubObject_Level | ||
| Mesh Vertex Distance to SceneNode | MeshVertexToNodeDistance | ||
| Mesh Vertex Transforms | VerticesAndNormalsToMatrices | ||
| NEW | Offset Mesh | Offset_Mesh | |
| Offset Mesh on Ray | CloneMeshAlongRay | ||
| Offset Meshes by Vector Increment | OffsetMeshes | ||
| NEW | Random Transforms on Mesh | Random_Transforms_on_Mesh | |
| Rotate Mesh | RotateMesh | ||
| Slice Mesh | SliceMesh | ||
| Spherify Mesh | Spherify | ||
| Split Mesh by Face Label | SplitMeshByFace | ||
| Split Mesh into Elements | MeshElements | ||
| NEW | Transform Mesh | Transform_Mesh | |
| Transform Mesh with Increment | CloneAndTransformMesh | ||
| Weld Mesh Vertices | WeldMesh | ||
| MapChannel Face Vertices | MapChannelVertices | ||
| NEW | MapChannel Id | MapChannel_Id | |
| MapChannel Id to Name | GetMapChannelName | ||
| MapChannel Index Buffer | MapChannelIndexBuffer | ||
| MapChannel Name | MapChannelName | ||
| MapChannel Vertex Buffer | MapChannelVertexBuffer | ||
| Mesh Alpha MapChannel | AlphaChannel | ||
| Mesh Available Channel Names | AvailableChannelNames | ||
| NEW | Mesh Available MapChannel Ids | Mesh_Available_MapChannel_Ids | |
| NEW | Mesh Available Per Vertex Data Channel Ids | Mesh_Available_Per_Vertex_Data_Channel_Ids | |
| NEW | Mesh Flip MapChannel Face Normals | Mesh Flip MapChannel Face Normals | |
| Mesh Has Channel by Name | IsChannelAvailable | ||
| NEW | Mesh Has MapChannel | Mesh_Has_MapChannel | |
| NEW | Mesh Has Per Vertex Data Channel | Mesh_Has_Per_Vertex_Data_Channel | |
| Mesh Has Soft Selection | HasSoftSelection | ||
| Mesh Has UV MapChannel | IsUVChannelAvailable | ||
| Mesh Has Vertex Color MapChannel | IsVertexColorChannelAvailable | ||
| Mesh Has Vertex Crease | HasVertexCrease | ||
| Mesh Has Vertex Weight | HasVertexWeight | ||
| Mesh Illumination MapChannel | IlluminationChannel | ||
| Mesh MapChannel | GetMapChannel | ||
| Mesh Per Vertex Data | PerVertexData | ||
| Mesh Remove Channel | DeleteChannel | ||
| Mesh Replace MapChannel | ReplaceChannel | ||
| Mesh Set Alpha MapChannel | SetAlphaMapChannel | ||
| Mesh Set Illumination MapChannel | SetIlluminationMapChannel | ||
| Mesh Set MapChannel from Buffers | SetMapChannel | ||
| Mesh Set MapChannel from Face Vertices | SetMapChannelWithoutIndices | ||
| NEW | Mesh Set MapChannel from Soft Selection | Mesh Set MapChannel from Soft Selection | |
| Mesh Set Per Vertex Data | SetPerVertexData | ||
| Mesh Set Soft Selection | SetSoftSelection | ||
| NEW | Mesh Set Soft Selection from MapChannel | Mesh Set Soft Selection from MapChannel | |
| Mesh Set UV MapChannel | SetUVMapChannel | ||
| Mesh Set Vertex Color MapChannel | SetVertexColorMapChannel | ||
| Mesh Set Vertex Colors from Function | ColorVertices | ||
| Mesh Soft Selection | SoftSelection | ||
| Mesh Topology MapChannel | TopologyChannel | ||
| Mesh UV MapChannel | UVChannel | ||
| Mesh Vertex Color MapChannel | VertexColorChannel | ||
| Mesh Vertex Creases | VertexCrease | ||
| Mesh Vertex Weights | VertexWeight | ||
| Array of Randomly Morphed Meshes | ArrayOfPseudoRandomMorphs | ||
| Deform Mesh in Coordinate System | DeformMeshInCoordinateSystem | ||
| Deform Mesh Points | DeformMeshPoints | ||
| Morph Meshes | MorphTwoMeshes | ||
| Morph Three Meshes Randomly | MorphRandomlyThreeMeshes | ||
| Push Mesh | PushMeshVertices | ||
| Push Mesh from Soft Selection | SoftPushMeshVertices | ||
| Push Mesh Random | PushRandom | ||
| Relax Mesh | WeightedRelax | ||
| Twist Mesh | Twist | ||
| Edge Face Index | EdgeFaceIndex | ||
| Edge Index | EdgeIndex | ||
| Edge Is Visible | EdgeVisible | ||
| Edge Parent Mesh | EdgeMesh | ||
| Edge Shared Indices | FindSharedEdges | ||
| Edge to Line | EdgeToLine | ||
| Edge Vertex Index A | EdgeA | ||
| Edge Vertex Index B | EdgeB | ||
| Mesh Edge | GetEdge | ||
| Mesh Edge Count | EdgeCount | ||
| Mesh Edge Visibility | VisibleEdges | ||
| NEW | Mesh Hide Diagonal Edges | Mesh_Hide_Diagonal_Edges | |
| NEW | Mesh Hide Edges by Corner Angle | Mesh_Hide_Edges_by_Corner_Angle | |
| Mesh Open Edges | MeshOpenEdges | ||
| Mesh Set Edge Visibility | SetVisibleEdges | ||
| Closest Point on Face | ClosestPointOnFace | ||
| Color Mesh Faces | SetFaceVertexColors | ||
| Face Area | FaceArea | ||
| Face Binormal | FaceBinormal | ||
| Face BoundingBox | FaceBoundingBox | ||
| Face Computed Normals | FaceNormals | ||
| Face Corner Angle | FaceCornerAngle | ||
| Face Corner Angle from Face Vertex Index | FaceVertexAngle | ||
| Face Corner Angles | FaceCornerAngles | ||
| Face Corner Vectors | FaceCornerVectors | ||
| NEW | Face Edge Indices | Face_Edge_Indices | |
| Face Edges | FaceEdges | ||
| Face Index Buffer Indices | FaceIndexBufferIndices | ||
| NEW | Face Indices from Face Id | Face_Indices_from_Face_Id | |
| NEW | Face Islands | Face_Islands | |
| Face Maximum Angle | FaceMaximumAngle | ||
| Face Maximum Angles | FaceMaximumAngles | ||
| Face Midpoint | FaceMidpoint | ||
| Face Normal | FaceNormal | ||
| NEW | Face Orientation | Face_Orientation | |
| Face Tangent | FaceTangent | ||
| Face Vertex A | FaceVertexA | ||
| Face Vertex B | FaceVertexB | ||
| Face Vertex C | FaceVertexC | ||
| Face Vertices | FaceVertices | ||
| NEW | Mesh Extrude Faces | Mesh_Extrude_Faces | |
| Mesh Face | MeshFace | ||
| Mesh Face Count | FaceCount | ||
| Mesh Face Index Buffer Indices | FaceIndices | ||
| Mesh Face Index to Vertex Indices | FaceToVertexIndices | ||
| Mesh Face Vertices | MeshFaceVertices | ||
| Mesh Faces | MeshFaces | ||
| Mesh Filter Faces | FilterFaces | ||
| NEW | Mesh Flip Face Normals | Mesh Flip Face Normals | |
| Remap Faces | RemapFaces | ||
| Mesh Material Ids | MaterialIds | ||
| Mesh Set Material Ids | SetMaterialIds | ||
| NEW | Color Mesh Polygons | Color Mesh Polygons | |
| NEW | Color Mesh Polygons by Area or ID | Color Mesh Polygons by Area or ID | |
| NEW | For Each Mesh Polygon | For Each Mesh Polygon | |
| NEW | Mesh Extrude All Polygons | Mesh Extrude All Polygons | |
| NEW | Mesh Extrude Polygons | Mesh Extrude Polygons | |
| NEW | Mesh Face Polygon Ids | Mesh_Face_Polygon_Ids | |
| NEW | Mesh Polygon Transforms | Mesh Polygon Transforms | |
| NEW | Mesh Polygons | Mesh Polygons | |
| Split Mesh into Polygons | SplitMeshIntoPolygons | ||
| Arc Mesh Primitive | CircularSegment | ||
| NEW | Axis Tripod Mesh Primitive | Axis Tripod Mesh Primitive | |
| Box Mesh Primitive | CreateBox | ||
| Box Mesh Primitive from BoundingBox | BoxTriMesh | ||
| Cube Mesh Primitive | SquareBoxMesh | ||
| Icosahedron Mesh Primitive | Icosahedron | ||
| Plane Mesh Primitive | XYPlane | ||
| Simple Arrow Mesh Primitive | ArrowMesh | ||
| Sphere Mesh Primitive | SphereTriMesh | ||
| Tetrahedron Mesh Primitive | Tetrahedron | ||
| Triangle Fan Mesh Primitive | TriMeshFan | ||
| Mesh Edge Selection | EdgeSelection | ||
| Mesh Face Selection | FaceSelection | ||
| Mesh Set Edge Selection | SetEdgeSelection | ||
| Mesh Set Face Selection | SetFaceSelection | ||
| Mesh Set Vertex Selection | SetVertexSelection | ||
| Mesh Vertex Selection | VertexSelection | ||
| Mesh Set Smoothing Groups | SetSmoothingGroups | ||
| Mesh Set Uniform Smoothing Groups | SetUniformSmoothingGroups | ||
| Mesh Smoothing Groups | SmoothingGroups | ||
| NEW | Color Mesh Vertices | Color Mesh Vertices | |
| NEW | Mesh Vertex | Mesh_Vertex | |
| NEW | Mesh Vertex Count | Mesh_Vertex_Count | |
| Mesh Vertex Index to Edge Indices | VertexEdgeLookup | ||
| Mesh Vertex Index to Face Indices | VertexFaceLookup | ||
| Mesh Vertex Index to Index Buffer Indices | VertexIndexLookup | ||
| Mesh Vertex Neighbors | AdjacentVertexIndices | ||
| Mesh Vertex Normals | VertexNormals | ||
| Mesh Vertices | MeshVertices | ||
| Mesh Vertices at Indices | SelectVertices | ||
| Face4 from Vertices | Face4 | ||
| Face4 Horizontal Split | SplitQuadHorizontally | ||
| Face4 Horizontal Split with Ratio | SplitQuadHorizontallyUneven | ||
| Face4 Vertex A | Face4VertexA | ||
| Face4 Vertex B | Face4VertexB | ||
| Face4 Vertex C | Face4VertexC | ||
| Face4 Vertex D | Face4VertexD | ||
| Face4 Vertical Split | SplitQuadVertically | ||
| Face4 Vertical Split with Ratio | SplitQuadVerticallyUneven | ||
| Face4 Vertices | Face4Points | ||
| QuadMesh Faces | QuadMeshFaces | ||
| QuadMesh from Buffers | QuadMesh | ||
| QuadMesh from Extruded Points | Extrude | ||
| QuadMesh from Lathed Points | LathePoints | ||
| QuadMesh from Lathed Points Around Axis | LathePointsAroundAxis | ||
| QuadMesh Index Buffer | QuadMeshIndices | ||
| QuadMesh Vertices | QuadMeshVertices | ||
| Arrow QuadMesh Primitive | Arrow | ||
| Box QuadMesh Primitive | BoxQuadMesh | ||
| Cylinder QuadMesh Primitive | SimpleCylinder | ||
| Plane QuadMesh Primitive from Column Points | SimpleQuadMeshVerticalStrip | ||
| Plane QuadMesh Primitive from Lines | QuadPlaneMesh | ||
| Plane QuadMesh Primitive from Row Points | SimpleQuadMeshStrip | ||
| QuadMesh Strip | QuadMeshStrip | ||
| Sphere Section QuadMesh Primitive | SphereSectionQuadMesh | ||
| Arrow Point Profile | ArrowShape | ||
| Attach All Splines | CombineSplines | ||
| NEW | Attach Splines | Attach_Splines | |
| Auto Smooth All Splines | AutoSmoothSplines | ||
| Auto Smooth Spline | AutoSmoothSpline | ||
| Closest Point on Spline | ClosestPointOnSpline | ||
| Closest Points on All Splines | ClosestPointOnSplines | ||
| Empty Spline | CreateEmptySpline | ||
| Join Splines | JoinTwoSplines | ||
| NEW | Offset Spline | Offset_Spline | |
| NEW | Points and Tangents on Spline | Points_and_Tangents_on_Spline | |
| Points on Arc | CircularArcOfPoints | ||
| NEW | Points on Circle | Points on Circle | |
| NEW | Points on Spline | Points_on_Spline | |
| Spline from Function | SplineFromFunction | ||
| Spline from Mesh Edges | SplineFromMeshEdges | ||
| Spline from Mesh Slice | SplineFromMeshSlice | ||
| Spline from Points | CreateSplineFromKnots | ||
| NEW | Spline Is Closed | Spline_Is_Closed | |
| NEW | Spline Is Empty | Spline_Is_Empty | |
| NEW | Spline Length | Spline_Length | |
| Spline Material Ids | SplineMaterialIDs | ||
| Spline Segment to Sub-Spline Index | SplineSegmentsToElementsMapping | ||
| Spline Segment Types | SplineSegmentTypes | ||
| Spline Set Closed | SetSplineClosed | ||
| Spline Set Material Ids | SetSplineMaterialIDs | ||
| Spline Set Segment Types | SetSplineSegmentTypes | ||
| Spline Split Segments to Sub-Splines | SplitSplineBySegment | ||
| Spline Sub-Splines | SplineElements | ||
| NEW | Transform Spline | Transform_Spline | |
| NEW | Transforms on Spline | Transforms_on_Spline | |
| NEW | Transforms on Spline with Guide | Transforms_on_Spline_with_Guide | |
| Bezier Segment to Points | BezierSegmentToPoints | ||
| Bezier Segments from Points | BezierSegmentsFromAnchors | ||
| Bezier Segments to Points | BezierSegmentsToPoints | ||
| Decode Spline from Mesh | TriMeshToSpline | ||
| Encode Spline to Mesh | SplineToTriMesh | ||
| First Segment Smoothed Tangents | ComputeFirstAutoSmoothTangent | ||
| Inner Segment Smoothed Tangents | ComputeInnerAutoSmoothTangents | ||
| Last Segment Smoothed Tangents | ComputeLastAutoSmoothTangent | ||
| Point on Spline Segment | SplineSegmentInterpolate | ||
| Points on Bezier Segments | ResamplePointsAsSplines | ||
| Spline Boundary Switch | SplineBranchOnBoundaryConditions | ||
| Spline Controls | SplineControls | ||
| Spline from Buffers | CreateSplineFromBuffers | ||
| Spline from Points and Tangents | CreateSplineFromPointsAndTangents | ||
| Spline from Segment Points and Tangents | SplineFromSegment | ||
| Spline Generate Segment Tangents | SplineGenerateSegmentTangents | ||
| Spline Generate Tangent Indices | SplineGenerateTangentIndices | ||
| Spline Index Buffer | SplineSegmentIndices | ||
| Spline Knots | SplineKnots | ||
| NEW | Spline Knots and Controls | Spline_Knots_and_Controls | |
| Spline Segment Controls | SplineSegmentControls | ||
| Spline Segment Count | SplineSegmentCount | ||
| Spline Segment Is Bezier | IsSplineSegmentBezier | ||
| Spline Segment Knot A | SplineSegmentKnotA | ||
| Spline Segment Knot B | SplineSegmentKnotB | ||
| Spline Segment Knots | SplineSegmentKnots | ||
| Spline Segment Length | SplineSegmentLength | ||
| Spline Segment Tangent A | SplineSegmentTangentA | ||
| Spline Segment Tangent B | SplineSegmentTangentB | ||
| Spline Segment Tangents | SplineSegmentTangents | ||
| Spline Segment Type | SplineSegmentType | ||
| Spline Tangent Buffer | SplineTangentsBuffer | ||
| Spline Tangent Index Buffer | SplineTangentIndices | ||
| Spline Vertex Buffer | SplineVerticesBuffer | ||
| Loop Spline Primitive | CircleSpline | ||
| Compound Input: Any | Input: any | ||
| Compound Input: Array | Input: array | ||
| Compound Input: Bitmap | Input: Bitmap | ||
| Compound Input: Boolean | Input: Boolean | ||
| Compound Input: BoundingBox | Input: BoundingBox | ||
| Compound Input: BoundingFrustum | Input: BoundingFrustum | ||
| Compound Input: BoundingSphere | Input: BoundingSphere | ||
| Compound Input: Cache | Input: cache | ||
| Compound Input: Constraint | Input: Constraint | ||
| Compound Input: Edge | Input: Edge | ||
| Compound Input: Face | Input: Face3 | ||
| Compound Input: Face4 | Input: Face4 | ||
| Compound Input: Float | Input: Single | ||
| Compound Input: Function 0 | Input: function0 | ||
| Compound Input: Function 1 | Input: function1 | ||
| Compound Input: Function 2 | Input: function2 | ||
| Compound Input: Function 3 | Input: function3 | ||
| Compound Input: Integer | Input: Int32 | ||
| Compound Input: Line | Input: Line | ||
| Compound Input: MapChannel | Input: MapChannel | ||
| Compound Input: Matrix | Input: Matrix | ||
| Compound Input: Mesh | Input: TriMesh | ||
| Compound Input: Octree | Input: VertexOctree | ||
| Compound Input: Pair | Input: tuple2 | ||
| Compound Input: Particle Object | Input: ParticleObject | ||
| Compound Input: PhysicsWorld | Input: World | ||
| Compound Input: Plane | Input: Plane | ||
| Compound Input: QuadMesh | Input: QuadMesh | ||
| Compound Input: Quaternion | Input: Quaternion | ||
| Compound Input: RandomGenerator | Input: Random | ||
| Compound Input: Ray | Input: Ray | ||
| Compound Input: RayTraceIntersection | Input: RayTraceIntersection | ||
| Compound Input: RayTraceScene | Input: RayTraceScene | ||
| Compound Input: Rectangle | Input: Rectangle | ||
| Compound Input: RigidBodyDynamics | Input: RigidBodyDynamics | ||
| Compound Input: SceneNode | Input: INode | ||
| Compound Input: Spline | Input: Spline | ||
| Compound Input: String | Input: String | ||
| Compound Input: Texmap | Input: Texmap | ||
| Compound Input: Triple | Input: tuple3 | ||
| Compound Input: Vector | Input: Vector3 | ||
| Compound Input: Vector4 | Input: Vector4 | ||
| Geometry: Local to World Matrix | Geometry: Matrix | ||
| Modifier: BoundingBox | Modifier: BoundingBox | ||
| Modifier: Local to World Matrix | Modifier: Matrix | ||
| Modifier: Mesh | Modifier: TriMesh | ||
| Spline: Local to World Matrix | Shape: Matrix | ||
| Tool Input: Asset | Parameter: Asset | ||
| Tool Input: Boolean | Parameter: Boolean | ||
| Tool Input: Color | Parameter: Color | ||
| Tool Input: Current Time | Time: Int32 | ||
| Tool Input: Float | Parameter: Single | ||
| Tool Input: Float Array | Parameter: IArray |
||
| Tool Input: Integer | Parameter: Int32 | ||
| Tool Input: SceneNode | Parameter: INode | ||
| Tool Input: SceneNode Array | Parameter: IArray |
||
| Tool Input: Signal | Parameter: Signal | ||
| Tool Input: String | Parameter: String | ||
| Tool Input: Texmap | Parameter: Texmap | ||
| Tool Input: Vector | Parameter: Vector3 | ||
| Transform Controller: Parent Matrix | Transform Controller: Matrix | ||
| Abs Float | Abs | ||
| NEW | Abs Integer | Abs_Integer | |
| Ceiling Float | CeilingAsFloat | ||
| Ceiling Integer | Ceiling | ||
| Clamp Float | ClampFloat | ||
| Clamp Float to One | ClampFloatToOne | ||
| Clamp Integer | ClampInt | ||
| Clamp Integer to Maximum | ClampIntMax | ||
| Clamp Vector | Clamp | ||
| Degrees from Radians | ToDegrees | ||
| Distance Float | FloatDistance | ||
| Exp | Exp | ||
| Float Decimal Component | ScaleFloatFromZeroToOne | ||
| Floor Float | FloorAsFloat | ||
| Floor Integer | Floor | ||
| Limit Float | LimitSingle | ||
| Log | Log | ||
| Log10 | Log10 | ||
| LogN | LogN | ||
| NEW | Loop Float | Loop_Float | |
| Max | Greater | ||
| Max Float | GreaterFloat | ||
| Max Integer | GreaterInt | ||
| Min | Lesser | ||
| Min Float | LesserFloat | ||
| Min Integer | LesserInt | ||
| Modulo | Modulo | ||
| Negate Float | NegativeFloat | ||
| Negate Integer | Negative | ||
| Power | Pow | ||
| Radians from Degrees | ToRadians | ||
| Rescale Array of Floats | NormalizeFloats | ||
| NEW | Rescale Float | Rescale_Float | |
| Round | Round | ||
| Round as Float | RoundAsFloat | ||
| Sign | Sign | ||
| Square Root | Sqrt | ||
| Truncate Float | TruncateAsFloat | ||
| Truncate Integer | Truncate | ||
| Wrap Angle | WrapAngle | ||
| Add | Add | ||
| Divide | Divide | ||
| Multiply | Multiply | ||
| Subtract | Subtract | ||
| Bitwise And | And | ||
| Bitwise Left Shift | LeftShift | ||
| Bitwise Or | Or | ||
| Bitwise Right Shift | RightShift | ||
| Bitwise XOR | ExclusiveOr | ||
| Bounding Cube from BoundingBox | BoxToCube | ||
| BoundingBox Center | BoundingBoxCenter | ||
| BoundingBox Contains All Points | BoxContainsAllPoints | ||
| BoundingBox Contains Any Point | BoxContainsAnyPoint | ||
| BoundingBox Contains BoundingBox | BoxContainsBox | ||
| BoundingBox Contains BoundingFrustum | BoxContainsFrustum | ||
| BoundingBox Contains BoundingSphere | BoxContainsSphere | ||
| BoundingBox Contains Face | BoxContainsFace | ||
| BoundingBox Contains or Intersects BoundingBox | BoxContainsOrIntersectsBox | ||
| BoundingBox Contains or Intersects BoundingFrustum | BoxContainsOrIntersectsFrustum | ||
| BoundingBox Contains or Intersects BoundingSphere | BoxContainsOrIntersectsSphere | ||
| BoundingBox Contains or Intersects Point | BoxContainsOrIntersectsPoint | ||
| BoundingBox Contains Point | BoxContainsPoint | ||
| BoundingBox Corners | BoxCorners | ||
| BoundingBox Dimensions | BoundingBoxExtent | ||
| BoundingBox from BoundingBoxes | MergeBoxes | ||
| BoundingBox from BoundingSphere | BoxFromSphere | ||
| BoundingBox from Mesh | MeshBoundingBox | ||
| BoundingBox from Min Max | Box | ||
| BoundingBox from Points | BoxFromPoints | ||
| BoundingBox from Points with Thickness | BuildBoundingBoxForCurve | ||
| BoundingBox from Radius | BoxFromRadius | ||
| BoundingBox from Radius and Center | BoxFromPointAndRadius | ||
| BoundingBox from SceneNode Sub-Spline | BoundingBoxFromCurvePoints | ||
| BoundingBox Intersects BoundingBox | BoxIntersectsBox | ||
| BoundingBox Intersects BoundingFrustum | BoxIntersectsFrustum | ||
| BoundingBox Intersects BoundingSphere | BoxIntersectsSphere | ||
| BoundingBox Match X | MatchBoxX | ||
| BoundingBox Match Y | MatchBoxY | ||
| BoundingBox Match Z | MatchBoxZ | ||
| BoundingBox Max Corner | BoxMax | ||
| BoundingBox Maximum Side | BoundingBoxMaximumSide | ||
| BoundingBox Min Corner | BoxMin | ||
| BoundingBox Radius | BoundingBoxRadius | ||
| BoundingBox Set X Dimension | SetBoxX | ||
| BoundingBox Set Y Dimension | SetBoxY | ||
| BoundingBox Set Z Dimension | SetBoxZ | ||
| Filter Points Outside BoundingBox | FilterPointsBasedOnBoundingBox | ||
| Rescale Point in BoundingBox | NormalizeFromBoundingBox | ||
| Shrink BoundingBox | BoxShrinkBy | ||
| Subdivide BoundingBox | SubdivideBox | ||
| Subdivide BoundingBox Along Diagonal | SubdivideBoxAlongDiagonal | ||
| Subdivide BoundingBox Along X | SubdivideBoxAlongX | ||
| Subdivide BoundingBox Along Y | SubdivideBoxAlongY | ||
| Subdivide BoundingBox Along Z | SubdivideBoxAlongZ | ||
| BoundingFrustum Bottom Plane | FrustumBottomPlane | ||
| BoundingFrustum Contains BoundingSphere | FrustumContainsSphere | ||
| BoundingFrustum Contains Box | FrustumContainsBox | ||
| BoundingFrustum Contains or Intersects BoundingBox | FrustumContainsOrIntersectsBox | ||
| BoundingFrustum Contains or Intersects BoundingSphere | FrustumContainsOrIntersectsSphere | ||
| BoundingFrustum Contains or Intersects Point | FrustumContainsOrIntersectsPoint | ||
| BoundingFrustum Contains Point | FrustumContainsPoint | ||
| BoundingFrustum Corners | FrustumCorners | ||
| BoundingFrustum Far Plane | FrustumFarPlane | ||
| BoundingFrustum from Matrix | Frustum | ||
| BoundingFrustum Intersects BoundingBox | FrustumIntersectsBox | ||
| BoundingFrustum Intersects BoundingSphere | FrustumIntersectsSphere | ||
| BoundingFrustum Left Plane | FrustumLeftPlane | ||
| BoundingFrustum Matrix | FrustumMatrix | ||
| BoundingFrustum Near Plane | FrustumNearPlane | ||
| BoundingFrustum Right Plane | FrustumRightPlane | ||
| BoundingFrustum Top Plane | FrustumTopPlane | ||
| BoundingSphere Center | SphereCenter | ||
| BoundingSphere Contains All Points | SphereContainsAllPoints | ||
| BoundingSphere Contains Any Point | SphereContainsAnyPoints | ||
| BoundingSphere Contains BoundingBox | SphereContainsBox | ||
| BoundingSphere Contains BoundingSphere | SphereContainsSphere | ||
| BoundingSphere Contains Face | SphereContainsFace | ||
| BoundingSphere Contains Frustum | SphereContainsFrustum | ||
| BoundingSphere Contains or Intersects BoundingBox | SphereContainsOrIntersectsBox | ||
| BoundingSphere Contains or Intersects BoundingFrustum | SphereContainsOrIntersectsFrustum | ||
| BoundingSphere Contains or Intersects BoundingSphere | SphereContainsOrIntersectsSphere | ||
| BoundingSphere Contains or Intersects Point | SphereContainsOrIntersectsPoint | ||
| BoundingSphere Contains Point | SphereContainsPoint | ||
| BoundingSphere from BoundingBox | SphereFromBox | ||
| BoundingSphere from BoundingFrustum | SphereFromFrustum | ||
| BoundingSphere from BoundingSpheres | MergeSpheres | ||
| BoundingSphere from Center Radius | Sphere | ||
| BoundingSphere from Mesh | MeshBoundingSphere | ||
| BoundingSphere from Points | SphereFromPoints | ||
| BoundingSphere Intersects BoundingBox | SphereIntersectsBox | ||
| BoundingSphere Intersects BoundingSphere | SphereIntersectsSphere | ||
| BoundingSphere Radius | SphereRadius | ||
| BoundingSphere Set Radius | SetSphereRadius | ||
| Point on BoundingSphere | LerpToSphere | ||
| All | All | ||
| And | AndAlso | ||
| Any | Any | ||
| Compare | Compare | ||
| Is Almost Zero | AlmostZero | ||
| Is Equal | Equal | ||
| Is Equal Float | FloatEquals | ||
| Is Equal Vector | VectorsAlmostEqual | ||
| Is Even | Even | ||
| Is Greater Than | GreaterThan | ||
| Is Greater Than or Equal | GreaterThanOrEqual | ||
| Is Less Than | LessThan | ||
| Is Less Than or Equal | LessThanOrEqual | ||
| Is Modulo Equal | ModuloEquals | ||
| Is Modulo Equal to Zero | ModuloEqualsZero | ||
| NEW | Is NaN | Is_NaN | |
| Is Not Equal | NotEqual | ||
| Is Odd | Odd | ||
| Is Power of Two | IsPowerOfTwo | ||
| Not | Not | ||
| Or | OrElse | ||
| false | false | ||
| true | true | ||
| e | E | ||
| Epsilon | Epsilon | ||
| Float Max Value | MaximumFloat | ||
| Float Min Value | MinimumFloat | ||
| Half Pi | HalfPi | ||
| Infinity | Infinity | ||
| Integer Max Value | MaximumInt | ||
| Integer Min Value | MinimumInt | ||
| NaN | NaN | ||
| Negative Infinity | NegativeInfinity | ||
| Negative One Integer | NegativeOne | ||
| One Float | FloatOne | ||
| One Integer | One | ||
| Pi | Pi | ||
| Three Integer | Three | ||
| Two Integer | Two | ||
| Two Pi | TwoPi | ||
| Zero Float | FloatZero | ||
| Zero Integer | Zero | ||
| Zero Vector | Vector3Zero | ||
| Barycentric Float | BarycentricFloat | ||
| Barycentric Point | Barycentric | ||
| Bezier Point | BezierInterpolate | ||
| Bezier Points | BezierPoints | ||
| Catmull Rom Float | CatmullRomFloat | ||
| Catmull Rom Point | CatmullRom | ||
| Falloff | AffectRegion | ||
| Hermite Float | HermiteFloat | ||
| Hermite Point | Hermite | ||
| Lerp | Lerp | ||
| Lerp Float | FloatLerp | ||
| Lerp Float 3 | FloatLerp3 | ||
| Lerp Quaternion | QuaternionLerp | ||
| Smooth Float | SmoothStepFloat | ||
| Smooth Point | SmoothStep | ||
| Spherical Lerp | SphericalLerp | ||
| Add Lines | AddLines | ||
| Line | Line | ||
| Line Connections | FindLineConnectivity | ||
| Line Connections to Endpoint | FindConnectedLines | ||
| Line from Interpolated Segments | LerpLines | ||
| Line from Vector | LineFromOrigin | ||
| Line Point A | LineA | ||
| Line Point B | LineB | ||
| Offset Line | OffsetLine | ||
| Point on Line | LerpLine | ||
| Points on Line | LineToArray | ||
| Divide by 100 Float | DivideBy100Float | ||
| Divide by Three | DivideByThree | ||
| Divide by Two | DivideByTwo | ||
| Divide by Two Float | DivideByTwoFloat | ||
| Float Is Greater Than or Equal to Zero | GreaterThanOrEqualToZero | ||
| Integer Is Greater Than Zero | GreaterThanZero | ||
| Minus One | MinusOne | ||
| Modulo Three | ModuloThree | ||
| Multiply 3 | MultiplyThreeNumbers | ||
| Multiply by Three | MultiplyByThree | ||
| Multiply by Two | MultiplyByTwo | ||
| Negate Vector If | VecNegateIf | ||
| Negate Vector Unless | VecNegateUnless | ||
| One Minus Float | OneMinus | ||
| Plus One | PlusOne | ||
| NEW | Zero If NaN | Zero If NaN | |
| NEW | Array from Matrix | Array_from_Matrix | |
| Billboard Matrix | BillboardMatrix | ||
| Constrained Billboard Matrix | ConstrainedBillboardMatrix | ||
| Euler from Rotation Matrix | EulerFromRotationMatrix | ||
| Identity Matrix | MatrixIdentity | ||
| LookAt Matrix | 3dsMaxLookAtMatrix | ||
| Matrix Determinant | Determinant | ||
| Matrix Element | MatrixElement | ||
| Matrix Flip Basis | FlipMatrixBasis | ||
| NEW | Matrix from Array | Matrix_from_Array | |
| Matrix from Axes | SetMatrixFrom3Rows | ||
| Matrix from Elements | Matrix | ||
| NEW | LookAt Matrix | Matrix_from_Primary_and_Bias | |
| Matrix from Up Forward | ConstructBasisFromUpFwd | ||
| Matrix from Yaw Pitch Roll | MatrixFromYawPitchRoll | ||
| Matrix Inverse | InvertMatrix | ||
| Matrix Is Decomposable | CanDecompose | ||
| Matrix Rotation Component | GetMatrixRotation | ||
| Matrix Row | MatrixRow | ||
| Matrix Scaling Component | GetMatrixScaling | ||
| Matrix Set Row | SetMatrixRow | ||
| Matrix Set Translation | SetMatrixTranslation | ||
| Matrix to Array | MatrixElements | ||
| Matrix Translation Component | GetMatrixTranslation | ||
| Matrix Transpose | Transpose | ||
| Reflection Matrix | ReflectionMatrix | ||
| Rotation Matrix from Axis Angle | MatrixFromAxisAngle | ||
| Rotation Matrix from Euler | RotationMatrixFromEuler | ||
| Rotation Matrix from Quaternion | MatrixFromQuaternion | ||
| Rotation Scaling Matrix | ScalingRotationMatrix | ||
| Rotation X Matrix | RotationXMatrix | ||
| Rotation Y Matrix | RotationYMatrix | ||
| Rotation Z Matrix | RotationZMatrix | ||
| Scaling Matrix | VectorScaleMatrix | ||
| Scaling Uniform Matrix | ScaleMatrix | ||
| Translation Matrix | TranslationMatrix | ||
| Translation Rotation Matrix | RotationTranslationMatrix | ||
| Translation Rotation Scaling Matrix | ScalingRotationTranslationMatrix | ||
| Translation Scaling Matrix | ScalingTranslationMatrix | ||
| Orthographic Matrix | OrthographicMatrix | ||
| Orthographic Off Center Matrix | OrthographicOffCenterMatrix | ||
| Perspective Field of View Matrix | PerspectiveFieldOfViewMatrix | ||
| Perspective Matrix | PerspectiveMatrix | ||
| Perspective Off Center Matrix | PerspectiveOffCenter | ||
| Shadow Matrix | ShadowMatrix | ||
| Cached Octree from Mesh | CreateAndCacheOctree | ||
| Filter Overlapping Points | FilterOverlappingPoints | ||
| Octree Closest Point | ClosestPoint | ||
| Octree Closest Point on Mesh | ClosestPointOnSurfaceWithClosestPointOnFace | ||
| Octree Closest Points | ClosestVertices | ||
| Octree Closest Points by Distance | OctreeNearPoints | ||
| Octree from Points | PointOctree | ||
| Octree Points in BoundingBox | OctreePointsInBox | ||
| Octree Points in BoundingSphere | OctreePointsInSphere | ||
| Closest Point on Plane | PlaneClosestPoint | ||
| Normalize Plane | NormalizePlane | ||
| Plane Distance | PlaneD | ||
| Plane Dot Coordinate | DotCoordinate | ||
| Plane from Position Direction | PlaneFromPositionDirection | ||
| Plane from Ray | Plane | ||
| Plane from Three Points | PlaneFrom3Points | ||
| Plane Is Behind BoundingBox | PlaneBehindBox | ||
| Plane Is Behind BoundingSphere | PlaneBehindSphere | ||
| Plane Is in Front of BoundingBox | PlaneInFrontOfBox | ||
| Plane Is in Front of BoundingSphere | PlaneInFrontOfSphere | ||
| Plane Is Intersecting BoundingBox | PlaneIntersectsBox | ||
| Plane Is Intersecting BoundingSphere | PlaneIntersectsSphere | ||
| Plane Normal | PlaneNormal | ||
| Point Distance to Plane | PointPlaneDistance | ||
| Concatenate Quaternions | ConcatenateQuaternions | ||
| Conjugate Quaternion | ConjugateQuaternion | ||
| Dot Product Quaternion | DotQuaternions | ||
| Euler from Quaternion | EulerFromQuaternion | ||
| Identity Quaternion | QuaternionIdentity | ||
| Normalize Quaternion | QuaternionNormalize | ||
| Quaternion from Axis Angle | QuaternionFromDirectionAngle | ||
| Quaternion from Euler | QuaternionFromEuler | ||
| Quaternion from Vector and Theta | QuaternionFromVectorAndTheta | ||
| Quaternion from Vector4 | Vector4ToQuaternion | ||
| Quaternion from Yaw Pitch Roll | QuaternionFromYawPitchRoll | ||
| Quaternion Inverse | QuaternionInverse | ||
| Quaternion Length | QuaternionLength | ||
| Quaternion Length Squared | QuaternionLengthSquared | ||
| Quaternion Rotation Angle | QuaternionAngle | ||
| Quaternion Rotation Between Vectors | RotationBetweenVectors | ||
| Quaternion W | QuaternionW | ||
| Quaternion X | QuaternionX | ||
| Quaternion Y | QuaternionY | ||
| Quaternion Z | QuaternionZ | ||
| Rectangle Bottom Right | BottomRight | ||
| Rectangle from Corners | Rectangle | ||
| Rectangle Top Left | TopLeft | ||
| Arc Cos | Acos | ||
| Arc Sin | Asin | ||
| Arc Tan | Atan | ||
| Arc Tan 2 | Atan2 | ||
| Cos | Cos | ||
| Cosh | Cosh | ||
| Sin | Sin | ||
| Sinh | Sinh | ||
| Tan | Tan | ||
| Tanh | Tanh | ||
| Angle Between Unit Vectors | AngleOfUnitVectors | ||
| Angle Between Vectors | AngleOfVectors | ||
| NEW | Array from Vector | Array_from_Vector | |
| Closest Point | SimpleClosestPoint | ||
| Closest Point to Index | ClosestOtherPointIndex | ||
| Cross Product | Cross | ||
| Distance | Distance | ||
| Distance Squared | DistanceSquared | ||
| Distance to Point in Direction | DistanceToLine | ||
| Divide Vector | DivideByScalar | ||
| Dot Product | Dot | ||
| For Each Vector Component | MapVector3 | ||
| Length | Length | ||
| Length Squared | LengthSquared | ||
| Max Vector Component | MaxValueFromVector3 | ||
| Max Vector Components | VectorMaximum | ||
| Min Vector Component | MinValueFromVector3 | ||
| Min Vector Components | VectorMinimum | ||
| Multiply Vector | MultiplyByScalar | ||
| Negate Vector | Negate | ||
| Normalize | Normalize | ||
| Offset Vector X | OffsetX | ||
| Offset Vector XY | OffsetXY | ||
| Offset Vector XYZ | OffsetVector | ||
| Offset Vector XZ | OffsetXZ | ||
| Offset Vector Y | OffsetY | ||
| Offset Vector YZ | OffsetYZ | ||
| Offset Vector Z | OffsetZ | ||
| Point on Torus | TorusPoint | ||
| Reflect Vector | Reflect | ||
| Rescale Array of Vectors | RescaleVectorsFromMinMax | ||
| Rotate Vector | Rotate | ||
| Rotate Vector Around Axis | RotatePoint | ||
| Swap YZ | SwapYZ | ||
| Transform Vector | Transform | ||
| Vector | Vector3 | ||
| NEW | Vector Component | Vector_Component | |
| NEW | Vector from Array | Vector_from_Array | |
| Vector from Quaternion | QuaternionVector | ||
| Vector from Triple | TripleToVector | ||
| Vector from X | Vector3FromX | ||
| Vector from XY | Vector3FromXY | ||
| Vector from XZ | Vector3FromXZ | ||
| Vector from Y | Vector3FromY | ||
| Vector from YZ | Vector3FromYZ | ||
| Vector from Z | Vector3FromZ | ||
| Vector Plane Binormal | VecPerpTo2Vecs | ||
| Vector Plane Binormal with Flip | PerpToVecInPlane2ndVec | ||
| Vector Plane Normal | NormalizedCross | ||
| Vector Plane Normal with Flip | NormalizedCrossWithFlip | ||
| Vector Projection | Projection | ||
| Vector Projection Length | ProjectionLength | ||
| NEW | Vector Set Component | Vector_Set_Component | |
| Vector Set Length | SetVectorLength | ||
| Vector Set X | SetX | ||
| Vector Set XY | SetXY | ||
| Vector Set XZ | SetXZ | ||
| Vector Set Y | SetY | ||
| Vector Set YZ | SetYZ | ||
| Vector Set Z | SetZ | ||
| Vector to Degrees | Vector3ToDegrees | ||
| Vector to Radians | Vector3ToRadians | ||
| Vector X | X | ||
| Vector Y | Y | ||
| Vector Z | Z | ||
| Vector4 | Vector4 | ||
| Vector4 from Quaternion | QuaternionToVector4 | ||
| Vector4 W | Vector4W | ||
| Vector4 X | Vector4X | ||
| Vector4 Y | Vector4Y | ||
| Vector4 Z | Vector4Z | ||
| Vectors Are Parallel | AreParallel | ||
| Vectors Are Perpendicular | ArePerpendicular | ||
| X Axis | XAxis | ||
| Y Axis | YAxis | ||
| Z Axis | ZAxis | ||
| Commit to OpenVDB File | WriteOpenVDBFile | ||
| Create New OpenVDB File | CreateNewOpenVDBFile | ||
| Get Grid as Float Array | GetGridAsFloatArray | ||
| Get Grid as Sampled Float Array | GetGridAsSampledFloatArray | ||
| Get Grid as Sampled Vector Array | GetGridAsSampledVector3Array | ||
| Get Grid as Vector Array | GetGridAsVector3Array | ||
| Get Grid Depth | GetGridDepth | ||
| Get Grid Names | GetGridNames | ||
| Get Grid Types | GetGridTypes | ||
| Get Grid Value Types | GetGridValueTypes | ||
| Get Grid Vertices | GetGridVertices | ||
| Put Float Array as Grid | PutFloatArrayAsGrid | ||
| Put Vector Array as Grid | PutVector3ArrayAsGrid | ||
| Output: Compound | Output: compound | ||
| Output: Color Controller | Output: Color Controller | ||
| Output: Float Controller | Output: Float Controller | ||
| Output: Geometry | Output: geometry | ||
| Output: MAXScript Function | Output: MAXScript function | ||
| Output: Modifier | Output: modifier | ||
| Output: Point3 Controller | Output: Point3 Controller | ||
| Output: Point4 Controller | Output: Point4 Controller | ||
| Output: Position Controller | Output: Position Controller | ||
| Output: Rotation Controller | Output: Rotation Controller | ||
| Output: Scale Controller | Output: Scale Controller | ||
| Output: Spline | Output: shape | ||
| Output: Transform Controller | Output: Transform Controller | ||
| Output: Utility | Output: utility | ||
| Mesh Center of Mass | GetCenterOfMass | ||
| PhysicsWorld | CreateWorld | ||
| PhysicsWorld Add Constraint | AddConstraint | ||
| PhysicsWorld Add Rigid Body | AddRigidBody | ||
| PhysicsWorld RigidBody | GetRigidBodyByIndex | ||
| PhysicsWorld RigidBody Convex Hull | GetRigidBodyConvexHull | ||
| PhysicsWorld RigidBody Count | GetNumberOfRigidBodies | ||
| PhysicsWorld RigidBody World Transform | GetRigidBodyWorldTransform | ||
| PhysicsWorld Set Gravity | SetGravity | ||
| PhysicsWorld Set Time | SetSimulationTime | ||
| PhysicsWorld Simulation | CreateSimulation | ||
| PhysicsWorld Simulation Time | GetSimulationTime | ||
| Point Constraint | CreatePointConstraint | ||
| Point to Point Constraint | CreatePoint2PointConstraint | ||
| Reset PhysicsWorld | ResetWorld | ||
| RigidBody | CreateRigidBody | ||
| RigidBody Is Kinematic | IsRigidBodyKinematic | ||
| RigidBody Set Velocity | SetRigidBodyVelocity | ||
| RigidBody Set World Transform | SetRigidBodyWorldTransform | ||
| RigidBodyDynamics | CreateRigidBodyDynamics | ||
| Six DOF Constraint | CreateGeneric6DofConstraint | ||
| Six DOF Constraint Set Angular Dynamics | SetGeneric6DofConstraintAngularDynamics | ||
| Six DOF Constraint Set Angular Limit | SetGeneric6DofConstraintAngularLimit | ||
| Six DOF Constraint Set Linear Dynamics | SetGeneric6DofConstraintLinearDynamics | ||
| Six DOF Constraint Set Linear Limit | SetGeneric6DofConstraintLinearLimit | ||
| Step PhysicsWorld | StepSimulation | ||
| NEW | Array of Random Booleans | Array_of_Random_Booleans | |
| NEW | Array of Random Booleans with Bias | Array_of_Random_Booleans_with_Bias | |
| NEW | Array of Random Floats | Array_of_Random_Floats | |
| NEW | Array of Random Floats in Range | Array_of_Random_Floats_in_Range | |
| NEW | Array of Random Integers | Array_of_Random_Integers | |
| NEW | Array of Random Integers in Range | Array_of_Random_Integers_in_Range | |
| NEW | Array of Random Vectors | Array_of_Random_Vectors | |
| NEW | Array of Random Vectors in Range | Array_of_Random_Vectors_in_Range | |
| NEW | Random Boolean | Random_Boolean | |
| NEW | Random Boolean with BIas | Random_Boolean_with_Bias | |
| Random Float | RandFloat | ||
| NEW | Random Float in Range | Random_Float_in_Range | |
| Random Integer | RandInt | ||
| NEW | Random Integer in Range | Random_Integer_in_Range | |
| NEW | Shuffle Array | Shuffle_Array | |
| Generate Array of Random Vectors | PseudoRandomVectors | ||
| Generate Random Boolean | RandomBoolean | ||
| Generate Random Choice | RandomChoice | ||
| Generate Random Float | PseudoRandomFloat | ||
| Generate Random Integer | PseudoRandomInt | ||
| Generate Random Integer in Range | PseudoRandomIntRange | ||
| Generate Random Vector | PseudoRandomVector | ||
| RandomGenerator | RandomNumberGenerator | ||
| NEW | Fractal Cell Noise | Fractal_Cell_Noise | |
| NEW | Fractional Brownian Motion | Fractional_Brownian_Motion | |
| NEW | Noise 1 | Noise1 | |
| NEW | Noise 3 | Noise3 | |
| NEW | Turbulence | Turbulence | |
| Filter and Sort Ray Intersections | FilterAndSortRayIntersections | ||
| Points on Ray | SampleAlongRayWithSpacing | ||
| Ray | Ray | ||
| Ray Direction | RayDirection | ||
| Ray from Matrices | RayFromMatrices | ||
| Ray from Matrix Axis | RayFromMatrixAxis | ||
| Ray from SceneNode World X Axis | RayFromNodeXAxis | ||
| Ray from SceneNode World Y Axis | RayFromNodeYAxis | ||
| Ray from SceneNode World Z Axis | RayFromNodeZAxis | ||
| Ray from Vector | VectorToRay | ||
| Ray Intersection with BoundingBox | RayIntersectsBox | ||
| Ray Intersection with BoundingSphere | RayIntersectsSphere | ||
| Ray Intersection with Face | FaceRayIntersection | ||
| Ray Intersection with Plane | RayIntersectsPlane | ||
| Ray Intersection with SceneNode | NodeIntersectsRay | ||
| Ray Intersections to SceneNode along Negative Z | UpdatePositionsWithIntersections | ||
| Ray Position | RayPosition | ||
| Ray Set Direction | SetRayDirection | ||
| Ray Set Position | SetRayPosition | ||
| Ray to SceneNode Intersections | GetRayToSurfaceIntersections | ||
| Ray Trace Add Mesh | RayTraceAddGeometry | ||
| Ray Trace All Intersecting Faces | RayTraceAllIntersectingFaces | ||
| Ray Trace Coordinates | RayTraceCoordinates | ||
| Ray Trace Delete Geometry | RayTraceDeleteGeometry | ||
| Ray Trace Disable Geometry | RayTraceDisableGeometry | ||
| Ray Trace Distance | RayTraceDistance | ||
| Ray Trace Enable Geometry | RayTraceEnableGeometry | ||
| Ray Trace Face Id | RayTraceFaceId | ||
| Ray Trace Face Intersection | RayTraceFaceIntersection | ||
| Ray Trace Face Intersections | RayTraceFaceIntersections | ||
| Ray Trace Geometry Id | RayTraceGeometryId | ||
| Ray Trace Geometry Occluded | RayTraceGeometryOccluded | ||
| Ray Trace Hit | RayTraceHit | ||
| Ray Trace Normal | RayTraceNormal | ||
| Ray Trace Scene | RayTraceScene | ||
| Ray Trace Update Geometry | RayTraceUpdateGeometry | ||
| Ray Trace UV | RayTraceUV | ||
| Index of Substring | IndexOfString | ||
| Join Array as String | StringJoin | ||
| Join Array as String with Ellipsis | StringEllidedJoin | ||
| Join Strings | ConcatenateStrings | ||
| Parse Array of String Arrays to Floats | Parse2DStringArrayToFloat | ||
| Parse Boolean | TryParseBoolean | ||
| Parse CSV File | ParseCSVData | ||
| Parse Float | TryParseFloat | ||
| Parse Integer | TryParseInt | ||
| Parse String Array to Floats | ParseStringArrayToFloat | ||
| Read CSV | ReadCSVData | ||
| Read Lines | ReadAllLines | ||
| Read Text | ReadAllText | ||
| Regex | Regex | ||
| Replace String | ReplaceString | ||
| Split String | Split | ||
| Split String with Regex | RegexSplit | ||
| String Contains Regex | RegexMatch | ||
| String Get Regex Matches | RegexMatches | ||
| String Length | StringLength | ||
| String to Lowercase | ToLower | ||
| String to Uppercase | ToUpper | ||
| Substring | Substring | ||
| Trim String Whitespace | Trim | ||
| JSON Extract Integer Array | JSONToInt32Array | ||
| JSON Extract String Array | GetJSONArrayByName | ||
| JSON Extract Vector Array | JSONToVector3Array | ||
| DEPRECATED | DEPRECATED Affect Region Compound | AffectRegionCompound | |
| DEPRECATED | DEPRECATED Along X Axis | AlongXAxis | |
| DEPRECATED | DEPRECATED Along Y Axis | AlongYAxis | |
| DEPRECATED | DEPRECATED Along Z Axis | AlongZAxis | |
| DEPRECATED | DEPRECATED Array 2 | Array2 | |
| DEPRECATED | DEPRECATED Array 3 | Array3 | |
| DEPRECATED | DEPRECATED Array 4 | Array4 | |
| DEPRECATED | DEPRECATED Array from Vector | VectorAsArray | |
| DEPRECATED | DEPRECATED Array of Random Floats in Range | ArrayOfRandomFloatsInRange | |
| DEPRECATED | DEPRECATED Array of Random Morphs | ArrayOfRandomMorphs | |
| DEPRECATED | DEPRECATED Array of Random Positions | ArrayOfRandomsPositions | |
| DEPRECATED | DEPRECATED Bezier to Points | BezierToPoints | |
| DEPRECATED | DEPRECATED Bind All of 3 | BindAllOf3 | |
| DEPRECATED | DEPRECATED Boolean to Integer | BoolToINT | |
| DEPRECATED | DEPRECATED Choose Value | ChooseValue | |
| DEPRECATED | DEPRECATED Detach Faces | DetachFaces | |
| DEPRECATED | DEPRECATED Directions on Curve Randomized | DirectionsOnCurveRandomized | |
| DEPRECATED | DEPRECATED Fan QuadMesh Primitive | QuadMeshFan | |
| DEPRECATED | DEPRECATED Generate Array of Random Points in BoundingBox | PseudoRandomPointsInBox | |
| DEPRECATED | DEPRECATED Generate Random Point in BoundingBox | PseudoRandomPointInBox | |
| DEPRECATED | DEPRECATED Inverse Float Lerp | InverseFloatLerp | |
| DEPRECATED | DEPRECATED Join Four Values with Comma | ConcatenateValuesAsString | |
| DEPRECATED | DEPRECATED Lerp Along Line | LerpAlongLine | |
| DEPRECATED | DEPRECATED MapChannel Face Vertices | MapChannelWithoutIndices | |
| DEPRECATED | DEPRECATED Matrix from Primary and Bias | ConstructBasisFromPrimaryAndBias | |
| DEPRECATED | DEPRECATED Mesh Clones on Points | CloneMeshAtPositions | |
| DEPRECATED | DEPRECATED Mesh Has Per Vertex Data Channel | HasPerVertexChannel | |
| DEPRECATED | DEPRECATED Move Points | MovePoints | |
| DEPRECATED | DEPRECATED Normalize Float | NormalizeFloat | |
| DEPRECATED | DEPRECATED Offset Mesh | OffsetMesh | |
| DEPRECATED | DEPRECATED Offset Meshes by Vector Array | OffsetMeshesByVectors | |
| DEPRECATED | DEPRECATED Offset Meshes with Increment Vector | OffsetMeshesBySingleVector | |
| DEPRECATED | DEPRECATED Offset Vector Set | OffsetVectorSet | |
| DEPRECATED | DEPRECATED Orientation on SceneNode Spline | LerpDirOnCurve | |
| DEPRECATED | DEPRECATED Orientations on SceneNode Spline | DirectionsOnCurve | |
| DEPRECATED | DEPRECATED Orientations on SceneNode Spline Randomized | LerpDirectionsOnCurveRandomized | |
| DEPRECATED | DEPRECATED Origin | Origin | |
| DEPRECATED | DEPRECATED Place Mesh on Plane Randomly | PlaceMeshOnPlaneRandomly | |
| DEPRECATED | DEPRECATED Point on SceneNode Spline | LerpPosOnCurve | |
| DEPRECATED | DEPRECATED Point on SceneNode Sub-Spline | LerpPosOnACurve | |
| DEPRECATED | DEPRECATED Point on Spline | SplineInterpolate | |
| DEPRECATED | DEPRECATED Points on SceneNode Spline Randomized | PointsOnCurveRandomized | |
| DEPRECATED | DEPRECATED Points on SceneNode Spline Randomized Projected | PointsOnCurveRandomizedProjectedOnSurface | |
| DEPRECATED | DEPRECATED Points on SceneNode Sub-Spline | CurvePoints | |
| DEPRECATED | DEPRECATED Points on SceneNode Sub-Spline Randomized | PointsOnACurveRandomized | |
| DEPRECATED | DEPRECATED Points on Spline Randomized | PointsOnSplineRandomized | |
| DEPRECATED | DEPRECATED Rotate Vectors Around Axis | RotatePoints | |
| DEPRECATED | DEPRECATED Scale Float | ScaleFloat | |
| DEPRECATED | DEPRECATED Scale Vector Components | ScaleVector | |
| DEPRECATED | DEPRECATED Seedless Random Floats | RandomFloats | |
| DEPRECATED | DEPRECATED Seedless Random Interpolation | RandomInterpolation | |
| DEPRECATED | DEPRECATED Seedless Random Interpolation Array | RandomInterpolationArray | |
| DEPRECATED | DEPRECATED Seedless Random Morph Meshes | RandomMorphMeshes | |
| DEPRECATED | DEPRECATED Seedless Random Point in Box | RandomPointInBox | |
| DEPRECATED | DEPRECATED Seedless Random Points in Box | RandomPointsInBox | |
| DEPRECATED | DEPRECATED Seedless Random Vector | RandomVector | |
| DEPRECATED | DEPRECATED Seedless Random Vector on Plane | RandomVectorOnPlane | |
| DEPRECATED | DEPRECATED Seedless Random Vectors | RandomVectors | |
| DEPRECATED | DEPRECATED Set X Components | ResetXComponents | |
| DEPRECATED | DEPRECATED Set Y Components | ResetYComponents | |
| DEPRECATED | DEPRECATED Set Z Components | ResetZComponents | |
| DEPRECATED | DEPRECATED Spline Is Closed | IsSplineClosed | |
| DEPRECATED | DEPRECATED Spline Length | SplineLength | |
| DEPRECATED | DEPRECATED Splines from SceneNode ShapeObject | SampleShapeObjectToSplines | |
| DEPRECATED | DEPRECATED Splines from SceneNode ShapeObject 2 | SplinesFromShapeObject | |
| DEPRECATED | DEPRECATED Split In Chunks | SplitInChunks | |
| DEPRECATED | DEPRECATED Tangent on SceneNode Spline | LerpTangentOnCurve | |
| DEPRECATED | DEPRECATED Tangent on SceneNode Sub-Spline | LerpTangentOnACurve | |
| DEPRECATED | DEPRECATED Tangent on Spline | SplineInterpolateTangent | |
| DEPRECATED | DEPRECATED Transform Mesh | TransformMesh | |
| DEPRECATED | DEPRECATED Transform Points | TransformPoints | |
| DEPRECATED | DEPRECATED Transform Spline | TransformSpline | |
| DEPRECATED | DEPRECATED Validate Condition | ValidateCondition | |
| DEPRECATED | DEPRECATED Vector from Array | VectorFromArray | |
| DEPRECATED | DEPRECATED Vector Lengths | VectorLengths | |
| DEPRECATED | DEPRECATED Add Bullet Object | AddBulletObject | |
| DEPRECATED | DEPRECATED As | As | |
| DEPRECATED | DEPRECATED As Boolean Array | AsBoolArray | |
| DEPRECATED | DEPRECATED As Char | AsChar | |
| DEPRECATED | DEPRECATED As Char Array | AsCharArray | |
| DEPRECATED | DEPRECATED As Float Array | AsFloatArray | |
| DEPRECATED | DEPRECATED As Integer Array | AsIntArray | |
| DEPRECATED | DEPRECATED As String Array | AsStringArray | |
| DEPRECATED | DEPRECATED Clear Vertex Data | ClearVertexData | |
| DEPRECATED | DEPRECATED Closest Point on Surface | ClosestPointOnSurface | |
| DEPRECATED | DEPRECATED Closest Vertex | ClosestVertex | |
| DEPRECATED | DEPRECATED Compound Input: ShapeObject | Input: ShapeObject | |
| DEPRECATED | DEPRECATED Default Value of Type | DefaultValueOfType | |
| DEPRECATED | DEPRECATED DefaultValueOfElement | DefaultValueOfElement | |
| DEPRECATED | DEPRECATED Empty Array of ShapeObject | ShapeObjectEmptyArray | |
| DEPRECATED | DEPRECATED FindDependentNode | FindDependentNode | |
| DEPRECATED | DEPRECATED FPValueFromSceneNode | FPValueFromINode | |
| DEPRECATED | DEPRECATED FPValueToMtl | FPValueToMtl | |
| DEPRECATED | DEPRECATED Identity | Identity | |
| DEPRECATED | DEPRECATED Interpolate Position on Curve in ShapeObject | LerpACurveInShapeObject | |
| DEPRECATED | DEPRECATED Interpolate Position on ShapeObject | LerpOnCurve | |
| DEPRECATED | DEPRECATED LookAt Matrix | LookAtMatrix | |
| DEPRECATED | DEPRECATED Matrix from Up Forward with Position | WorldMatrix | |
| DEPRECATED | DEPRECATED Mesh Data | MeshData | |
| DEPRECATED | DEPRECATED Mesh from Buffers and Mesh Data | CreateMeshWithMeshData | |
| DEPRECATED | DEPRECATED Ninety Float | FloatNinety | |
| DEPRECATED | DEPRECATED Ninety Integer | Ninety | |
| DEPRECATED | DEPRECATED One Eighty Float | FloatOneEighty | |
| DEPRECATED | DEPRECATED One Eighty Integer | OneEighty | |
| DEPRECATED | DEPRECATED Parse Boolean | ParseBoolean | |
| DEPRECATED | DEPRECATED Parse Float | ParseFloat | |
| DEPRECATED | DEPRECATED Parse Integer | ParseInt | |
| DEPRECATED | DEPRECATED Pass Through ShapeObject | Pass-through: ShapeObject | |
| DEPRECATED | DEPRECATED Quaternion from Rotation Matrix | QuaternionFromRotationMatrix | |
| DEPRECATED | DEPRECATED Random Float | RandomFloat | |
| DEPRECATED | DEPRECATED Random Integer | RandomInt | |
| DEPRECATED | DEPRECATED Random Integer in Range | RandomIntInRange | |
| DEPRECATED | DEPRECATED RandomGenerator | RandomNumberGeneratorWithoutSeed | |
| DEPRECATED | DEPRECATED Reference Maker: ReferenceMaker | Reference Maker: ReferenceMaker | |
| DEPRECATED | DEPRECATED SceneNode Has ShapeObject | CanGetShapeFromNode | |
| DEPRECATED | DEPRECATED SceneNode ShapeObject | ShapeFromNode | |
| DEPRECATED | DEPRECATED Set Mesh Data | SetMeshData | |
| DEPRECATED | DEPRECATED ShapeObject Curve Count | CurvesInShape | |
| DEPRECATED | DEPRECATED Sphere QuadMesh Primitive | SphereQuadMesh | |
| DEPRECATED | DEPRECATED String from Char Array | FromChars | |
| DEPRECATED | DEPRECATED Ten | Ten | |
| DEPRECATED | DEPRECATED Three Sixty Float | FloatThreeSixty | |
| DEPRECATED | DEPRECATED Three Sixty Integer | ThreeSixty | |
| DEPRECATED | DEPRECATED To Chars | ToChars | |
| DEPRECATED | DEPRECATED Type of Element | TypeOfElement | |
| DEPRECATED | DEPRECATED Type of Expression | TypeOfExpression | |
| DEPRECATED | DEPRECATED Type of Value | TypeOfValue | |
| REMOVED | CFDArrows | ||
| REMOVED | StoreDataInPVDC | ||
| REMOVED | CachedValueWithHash | ||
| REMOVED | CFDColorMeshFromVectorData | ||
| REMOVED | GaussianWeights | ||
| REMOVED | GetAbsVelocities | ||
| REMOVED | GenerateSplineFromVelocity | ||
| REMOVED | ExtractVectors | ||
| REMOVED | GetVectors | ||
| REMOVED | KeepNVertices | ||
| REMOVED | WeightsByDistance | ||
| REMOVED | InterpVelocityWeighed | ||
| REMOVED | NodeSingleTupleSecond | ||
| REMOVED | InterpChannelAtEachVertex | ||
| REMOVED | InterpAbsVelocityAtEachVertex | ||
| REMOVED | InterpVelocityAtEachPoint | ||
| REMOVED | GetPVData | ||
| REMOVED | TransferPerVertexDataByIndex | ||
| REMOVED | CFDColorSplineFromVectorData | ||
| REMOVED | InterpChannelWeighed | ||
| REMOVED | NormalizeFloatWithFloatArray | ||
| REMOVED | SetPerVertexDataChannel | ||
| REMOVED | RungeKuttaIntegration | ||
| REMOVED | CacheOctreeMod | ||
| REMOVED | CFDAdvectPoints | ||
| REMOVED | GetMeshVerticesWeights | ||
| REMOVED | CFDInterpolateVectorDataFromSamplePoints | ||
| REMOVED | pushPOP | ||
| REMOVED | InterpMeshVerticesVelocityWeighted | ||
| REMOVED | FilterCFDMeshVertices | ||
| REMOVED | GetWeights | ||
| REMOVED | InterpChannelAtEachPoint | ||
| REMOVED | WriteCSVDataAsOpenVDB | ||
| REMOVED | ArrayOfPseudoRandomMorphsFromNodes | ||
| REMOVED | GenerateVertices | ||
| REMOVED | CFDSplineMaterialIDAt | ||
| REMOVED | InterpAbsVelocityAtEachPoint | ||
| REMOVED | pushPopperArray | ||
| REMOVED | IsNullFix | ||
| REMOVED | ConditionalNormWithCache | ||
| REMOVED | WeightedAveragePosition | ||
| REMOVED | KeepEveryNthVertex | ||
| REMOVED | WeightedVectorSum | ||
| REMOVED | CFDPositionsAndVectorData | ||
| REMOVED | StoreDataInPVDCAtChannels | ||
| REMOVED | CombineAsACompound | ||
| REMOVED | NodeSingleTupleFirst | ||
| REMOVED | SetPerVertexDataChannelByIndex | ||
| REMOVED | CreateSplinesFromAlignedVectorArrays | ||
| REMOVED | GetVelocity | ||
| REMOVED | ClosestPointWithCachedOctree |
