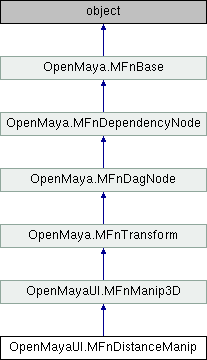

Inheritance diagram for OpenMayaUI.MFnDistanceManip:

Public Member Functions
def	__init__ ()

def	connectToDistancePlug ()

def	create ()

def	currentPointIndex ()

def	directionIndex ()

def	distanceIndex ()

def	setDirection ()

def	setStartPoint ()

def	startPointIndex ()

Public Member Functions inherited from OpenMayaUI.MFnManip3D
def	__init__ ()

def	rotateXYZValue ()

Public Member Functions inherited from OpenMaya.MFnTransform
def	__init__ ()

def	clearRestPosition ()

def	create ()

def	enableLimit ()

def	isLimited ()

def	limitValue ()

def	resetFromRestPosition ()

def	resetTransformation ()

def	restPosition ()

def	rotateBy ()

def	rotateByComponents ()

def	rotateOrientation ()

def	rotatePivot ()

def	rotatePivotTranslation ()

def	rotation ()

def	rotationComponents ()

def	rotationOrder ()

def	scale ()

def	scaleBy ()

def	scalePivot ()

def	scalePivotTranslation ()

def	setLimit ()

def	setRestPosition ()

def	setRotateOrientation ()

def	setRotatePivot ()

def	setRotatePivotTranslation ()

def	setRotation ()

def	setRotationComponents ()

def	setRotationOrder ()

def	setScale ()

def	setScalePivot ()

def	setScalePivotTranslation ()

def	setShear ()

def	setTransformation ()

def	setTranslation ()

def	shear ()

def	shearBy ()

def	transformation ()

def	translateBy ()

def	translation ()

Public Member Functions inherited from OpenMaya.MFnDagNode
def	__init__ ()

def	addChild ()

def	child ()

def	childCount ()

def	create ()

def	dagPath ()

def	dagRoot ()

def	duplicate ()

def	fullPathName ()

def	getAllPaths ()

def	getConnectedSetsAndMembers ()

def	getPath ()

def	hasChild ()

def	hasParent ()

def	instanceCount ()

def	isChildOf ()

def	isInstanced ()

def	isInstancedAttribute ()

def	isParentOf ()

def	parent ()

def	parentCount ()

def	partialPathName ()

def	removeChild ()

def	removeChildAt ()

def	setObject ()

def	transformationMatrix ()

Public Member Functions inherited from OpenMaya.MFnDependencyNode
def	__init__ ()

def	absoluteName ()

def	addAttribute ()

def	addExternalContentForFileAttr ()

def	affectsAnimation ()

def	attribute ()

def	attributeClass ()

def	attributeCount ()

def	canBeWritten ()

def	create ()

def	dgCallbackIds ()

def	dgCallbacks ()

def	dgTimer ()

def	dgTimerOff ()

def	dgTimerOn ()

def	dgTimerQueryState ()

def	dgTimerReset ()

def	findAlias ()

def	findPlug ()

def	getAffectedAttributes ()

def	getAffectingAttributes ()

def	getAliasAttr ()

def	getAliasList ()

def	getConnections ()

def	getExternalContent ()

def	hasAttribute ()

def	hasUniqueName ()

def	isFlagSet ()

def	isNewAttribute ()

def	isTrackingEdits ()

def	name ()

def	plugsAlias ()

def	removeAttribute ()

def	reorderedAttribute ()

def	setAffectsAnimation ()

def	setAlias ()

def	setDoNotWrite ()

def	setExternalContent ()

def	setExternalContentForFileAttr ()

def	setFlag ()

def	setName ()

def	setUuid ()

def	uniqueName ()

def	userNode ()

def	uuid ()

Public Member Functions inherited from OpenMaya.MFnBase
def	__init__ ()

def	hasObj ()

def	object ()

def	setObject ()

def	type ()

Static Public Member Functions
def	__new__ ()

Static Public Member Functions inherited from OpenMayaUI.MFnManip3D
def	__new__ ()

def	deleteManipulator ()

def	drawPlaneHandles ()

def	globalSize ()

def	handleSize ()

def	lineSize ()

def	setDrawPlaneHandles ()

def	setGlobalSize ()

def	setHandleSize ()

def	setLineSize ()

Static Public Member Functions inherited from OpenMaya.MFnTransform
def	__new__ ()

def	balanceTransformation ()

Static Public Member Functions inherited from OpenMaya.MFnDagNode
def	__new__ ()

Static Public Member Functions inherited from OpenMaya.MFnDependencyNode
def	__new__ ()

def	allocateFlag ()

def	classification ()

def	deallocateAllFlags ()

def	deallocateFlag ()

Static Public Member Functions inherited from OpenMaya.MFnBase
def	__new__ ()

Properties
	isDrawLineOn = property(...)

	isDrawStartOn = property(...)

	scalingFactor = property(...)

Properties inherited from OpenMayaUI.MFnManip3D
	isOptimizePlaybackOn = property(...)

	isVisible = property(...)

	manipScale = property(...)

Properties inherited from OpenMaya.MFnDagNode
	boundingBox = property(...)

	inModel = property(...)

	inUnderWorld = property(...)

	isInstanceable = property(...)

	isIntermediateObject = property(...)

	objectColor = property(...)

	objectColorRGB = property(...)

	objectColorType = property(...)

	useObjectColor = property(...)

Properties inherited from OpenMaya.MFnDependencyNode
	isDefaultNode = property(...)

	isFromReferencedFile = property(...)

	isLocked = property(...)

	isShared = property(...)

	namespace = property(...)

	pluginName = property(...)

	typeId = property(...)

	typeName = property(...)

Additional Inherited Members
Static Public Attributes inherited from OpenMaya.MFnTransform
int	kRotateMaxX = 13

int	kRotateMaxY = 15

int	kRotateMaxZ = 17

int	kRotateMinX = 12

int	kRotateMinY = 14

int	kRotateMinZ = 16

int	kScaleMaxX = 1

int	kScaleMaxY = 3

int	kScaleMaxZ = 5

int	kScaleMinX = 0

int	kScaleMinY = 2

int	kScaleMinZ = 4

int	kShearMaxXY = 7

int	kShearMaxXZ = 9

int	kShearMaxYZ = 11

int	kShearMinXY = 6

int	kShearMinXZ = 8

int	kShearMinYZ = 10

int	kTranslateMaxX = 19

int	kTranslateMaxY = 21

int	kTranslateMaxZ = 23

int	kTranslateMinX = 18

int	kTranslateMinY = 20

int	kTranslateMinZ = 22

Static Public Attributes inherited from OpenMaya.MFnDagNode
int	kNextPos = 255

Static Public Attributes inherited from OpenMaya.MFnDependencyNode
int	kTimerMetrics = 9

int	kTimerTypes = 3

int	kExtensionAttr = 3

int	kInvalidAttr = 4

int	kLocalDynamicAttr = 1

int	kNormalAttr = 2

int	kTimerInvalidState = 3

int	kTimerOff = 0

int	kTimerOn = 1

int	kTimerUninitialized = 2

int	kTimerMetric_callback = 0

int	kTimerMetric_callbackNotViaAPI = 6

int	kTimerMetric_callbackViaAPI = 5

int	kTimerMetric_compute = 1

int	kTimerMetric_computeDuringCallback = 7

int	kTimerMetric_computeNotDuringCallback = 8

int	kTimerMetric_dirty = 2

int	kTimerMetric_draw = 3

int	kTimerMetric_fetch = 4

int	kTimerType_count = 2

int	kTimerType_inclusive = 1

int	kTimerType_self = 0

Detailed Description

The DistanceManip allows the user to manipulate a point that is constrained to move along a line. This manipulator generates a single floating point value. Scaling factors can be used to determine how the manipulator appears when it is drawn.

Method resolution order:
-   MFnDistanceManip
-   MFnManip3D
-   OpenMaya.MFnTransform
-   OpenMaya.MFnDagNode
-   OpenMaya.MFnDependencyNode
-   OpenMaya.MFnBase
-   builtins.object

Constructor & Destructor Documentation

def OpenMayaUI.MFnDistanceManip.__init__ ( )

Initialize self.  See help(type(self)) for accurate signature.

Member Function Documentation

def OpenMayaUI.MFnDistanceManip.__new__ ( )

static

Create and return a new object.  See help(type) for accurate signature.

def OpenMayaUI.MFnDistanceManip.connectToDistancePlug ( )

connectToDistancePlug(directionPlug) -> self

Connect to the distance plug. The data type corresponding to the distancePlug is a double. (Note that MFnUnitAttribute.kDistance is used to specify a distance attribute.)

* distancePlug (MPlug) - the distance plug

def OpenMayaUI.MFnDistanceManip.create ( )

create(manipName=None, distanceName=None) -> MObject

Creates a new DistanceManip.
This function set's object is set to be the new manipulator.

This method should only be used to create a non-composite DistanceManip.

The name that appears in the feedback line is specified by the distanceName argument.

* manipName (string) - Name of the manip for UI purposes.
* distanceName (string) - Label for the distance value which appears in the feedback line.

def OpenMayaUI.MFnDistanceManip.currentPointIndex ( )

currentPointIndex() -> int

Returns the index of the current point of the DistanceManip. The data type corresponding to this index is MFnNumericData.k3Double.

def OpenMayaUI.MFnDistanceManip.directionIndex ( )

directionIndex() -> int

Returns the index of the direction. The data type corresponding to this index is MFnNumericData.k3Double.

def OpenMayaUI.MFnDistanceManip.distanceIndex ( )

distanceIndex() -> int

Returns the index of the distance. The data type corresponding to this index is a double.

def OpenMayaUI.MFnDistanceManip.setDirection ( )

setDirection(direction) -> self

Sets the direction of the DistanceManip.

* direction (MVector) - the direction of the DistanceManip

def OpenMayaUI.MFnDistanceManip.setStartPoint ( )

setStartPoint(startPoint) -> self

Sets the start point of the DistanceManip.

* startPoint (MPoint) - the start point of the DistanceManip

def OpenMayaUI.MFnDistanceManip.startPointIndex ( )

startPointIndex() -> int

Returns the index of the start point of the DistanceManip. The data type corresponding to this index is MFnNumericData.k3Double.

Property Documentation

OpenMayaUI.MFnDistanceManip.isDrawLineOn = property(...)

static

 Whether or not to draw a line from the start to the end of the DistanceManip.
 By default the line is drawn.

OpenMayaUI.MFnDistanceManip.isDrawStartOn = property(...)

static

 Whether or not the start of the DistanceManip is being drawn.
 By default the start is not drawn.

OpenMayaUI.MFnDistanceManip.scalingFactor = property(...)

static

 The scaling factor is used to determine how int the DistanceManip appears when it is drawn.
 The default scaling factor is 1.0.
