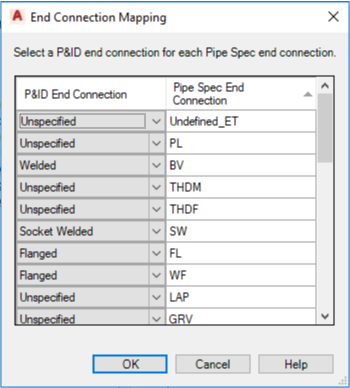

End Connection Mapping dialog box

P&ID End Connection

Lists the P&ID end connections available to be mapped to the Pipe Spec values.

Pipe Spec End Connection

Lists the Pipe Spec End Connections that to be mapped to each P&ID end connection.
