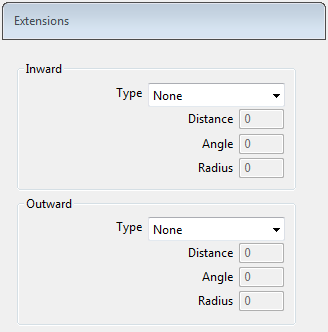

Use the Extensions page to add another lead to the existing ones.
Inward — Use these settings to add an additional Lead in before the existing one.

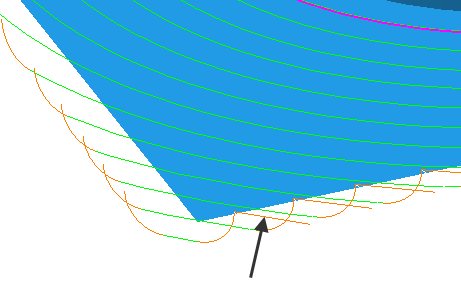

Extension of Straight with a Distance of 10, and an Angle of 0. Leads of Surface normal arc.
- Type — Select the type of inward extension move to use. The options available are a subset of the types of Lead in move.

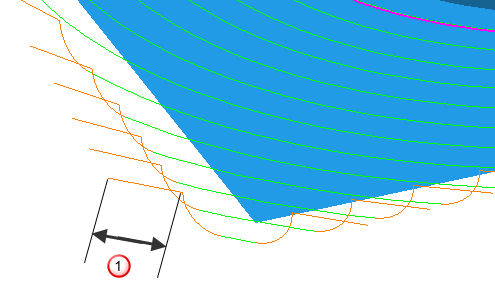

- Distance — Enter the length of the inward extension move.

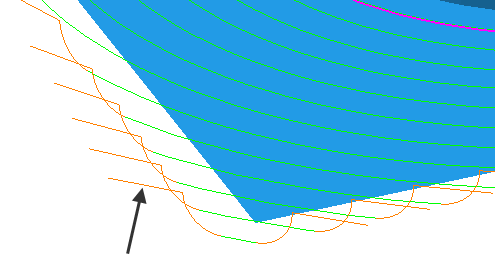

With a Distance of 10.
Extension
of
Straight with a
Distance of
10, and an
Angle
of
0.
Leads of
Surface normal arc.
- Angle
— Enter the angle span of the inward extension move.

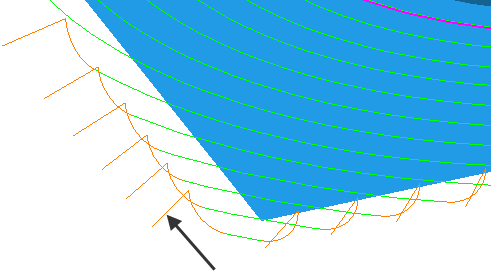

With an Angle of 0
.
Extension of Straight with a Distance of 10, and an Angle of 0. Leads of Surface normal arc.

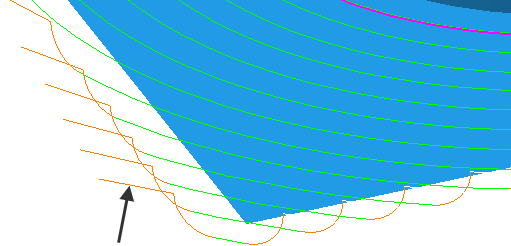

With an Angle of 90
.
- Radius — Enter the radius of the inward extension move.
Outward — Use these settings to add an additional Lead out before the existing one.
Extension of Straight with a Distance of 10, and an Angle of 0. Leads of Surface normal arc.
- Type — Select the type of outward extension move to use. The options available are a subset of the types of Lead out move.
- Distance — Enter the length of the outward extension move.
With a Distance of 10.
Extension
of
Straight with a
Distance of
10, and an
Angle
of
0.
Leads of
Surface normal arc.
- Angle — Enter the angle span of the outward extension move.
With an Angle of 0
.
Extension of Straight with a Distance of 10, and an Angle of 0. Leads of Surface normal arc.
With an Angle of 90
.
- Radius — Enter the radius of the outward extension move.
