Controls the precision and display formats for coordinates, distances, and angles.
The following prompts are displayed.
- Enter choice (Report Formats)
- Specifies the unit display style.
1 = Scientific 1.55E+01
2 = Decimal 15.50
3 = Engineering 1'-3.50"
4 = Architectural 1'-3 1/2"
5 = Fractional 15 1/2
- Number of digits to right of decimal point (0 to 8)
- (Available for scientific, decimal, or engineering formats)
Specifies the decimal precision: 0 to 8.
- Denominator of smallest fraction to display
- (Available for architectural or fractional formats)
Specifies the fractional precision: 1, 2, 4, 8, 16, 32, 64, 128, or 256.
- Enter choice (Systems of Angle Measure)
- Specifies the display format for angles.
1 = Decimal degrees - 45.0000
2 = Degrees/minutes/seconds - 45d0'0"
3 = Grads - 50.0000g
4 = Radians - 0.7854r
5 = Surveyor's units - N 45d0'0" E
- Fractional places for display of angles
- Specifies the fractional precision: 0 to 8.
- Direction for angle 0
- Specifies the direction of the angle 0. The format of this number depends on the system of angle measure you specified. You can also specify points to set the direction:
0 = East or 3 o'clock
90 = North or 12 o'clock
180 = West or 9 o'clock
270 = South or 6 o'clock

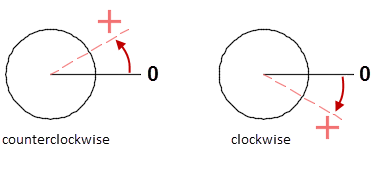

- Measure angles clockwise?
- Specifies the direction of positive angles from angle 0.
