New in Project Explorer

Learn about enhancements to Project Explorer.

New in 2025.2

• Added additional entity properties when setting the Set Column Layout for Alignment/Profile Calculated Stations.

  For more information, see About Layout Options Alignment Tab.

• Added new entity properties from the Civil 3D Cant Tabular editor when setting the Set Column Layout for Cant Curves.
  • Curve Radius
  • Equilibrium Cant Gradient
  • Equilibrium Cant Vertical Speed
  • Cant Deficiency Gradient
  • Cant Deficiency Vertical Speed
  • Cant Jerk
  • Cant Ratio

  For more information, see About Layout Options Alignment Tab.

• Added support for configuring the Calculated Stations list independently for each alignment type.

  For more information, see About Layout Options Alignment Tab.

• Added support to select multiple objects in an Object Set. this allows the ability to duplicate and apply filters to many objects at a time.

  For more information, see About Working with Object Sets.

• Add a relaxed encoding option for writing UTF-8 JSON report files. This allows some report results to be more legible.

  For more information, see About the Report Options Window.

New in 2025.1

JSON File Support

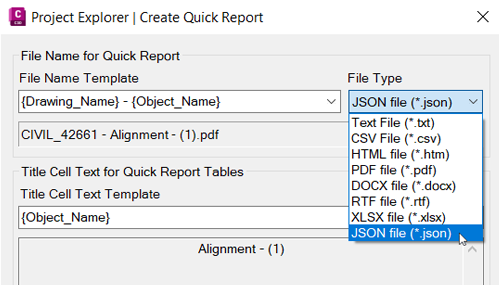

• Added the ability to support exporting reports to a JSON (*.json file).


  For more information, see About Generating Reports and Spreadsheets.

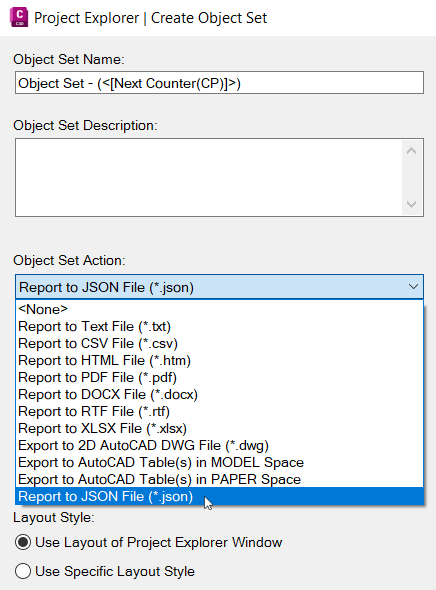

• Added the ability to have Object Set Actions to trigger a report to JSON FIle (*.json).


  For more information, see About Working with Object Sets.

• Added the ability to filter and include Sample Line Group stations for display and export to tables and reports.

Sample Line Group Filtering

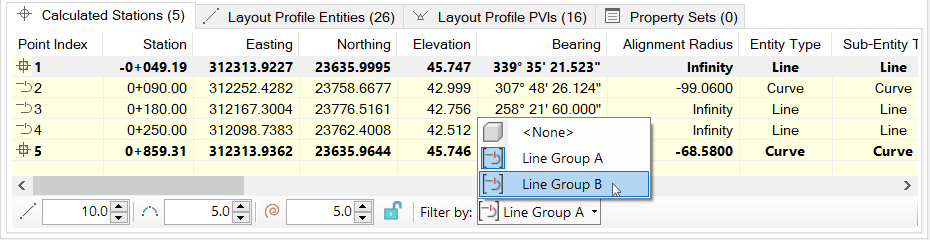

• Added the ability to filter and include Sample Line Group stations for display in the Calculated Stations tab for alignments.


  For more information, see About Layout Options Alignment Tab.

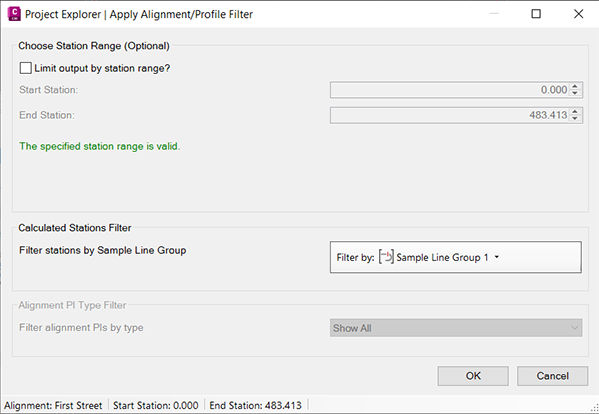

• Updated the Apply Alignment/Profile Filter dialog box for Calculated stations. You can now filter Sample Line Groups when exporting to reports and when creating or editing an object set items.

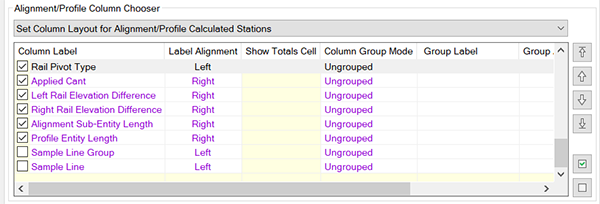

• Added Sample Line Group and Sample Line for column layouts of the Alignment/Profile Calculated Stations. These are enabled in the About Layout Options Alignment Tab and are deselected by default.
