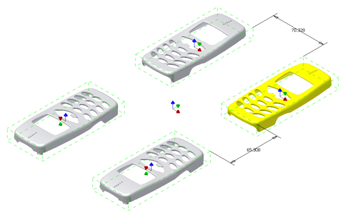

The Pattern feature enables you to design a multi-cavity mold and lay out plastic parts in a rectangular or circular pattern.
Different methods and options are available for you to implement your design:
- Rectangular method
-
Provides a Base Pattern, X Balance, and Y Balance. Expand the dialog box to select Unique files.
- Circular method
-
Provides a Base Pattern and Radial Pattern. Expand the dialog box to select Unique files.
- Variable method
-
Provides the means to place each plastic part separately with the Rotate and Offset options.
