The Adjust Position feature helps you specify the location of each plastic part in a family mold design.
The available methods to adjust the position are:

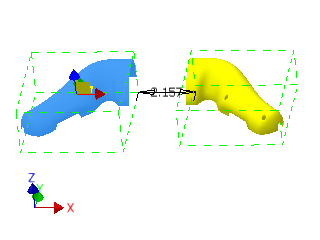

- Set the X and Y offset distance with Align XY Plane with Reference.
- Set the X and Y offset distance with Align Center with X/Y Direction.

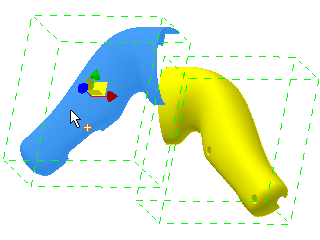

- Move the plastic part in the X, Y, and Z direction with Free Transform.
Note: The Adjust Position feature can be used only in family mold design.
