Warp analysis Quick Start Tutorial

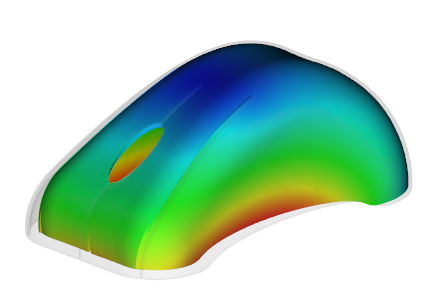

In this tutorial, you run a Warpage analysis on the 4-cavity tool of the computer mouse cover. The analysis sequence includes; cool, fill, and pack.

This tutorial continues where the others left off. You change the analysis sequence of the previous tutorial to Cool(FEM)+Fill+Pack+Warp and then run the analysis. The analysis will take about an hour to run.

Attention Download the files for this tutorial from Autodesk Knowledge Network - New User Quick Start tutorial.

Cause of warpage
