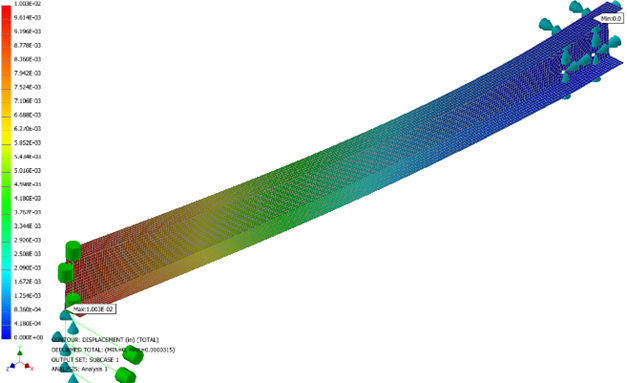

- When the analysis completes, double-click on
Displacement under
Subcase 1 to see the deformed and contour plot of the beam under the
Y Displacement load. Loads and constraints are turned off for image clarity. You can do this by right-clicking the
Loads and
Constraints nodes and selecting
Hide All from the drop-down list.

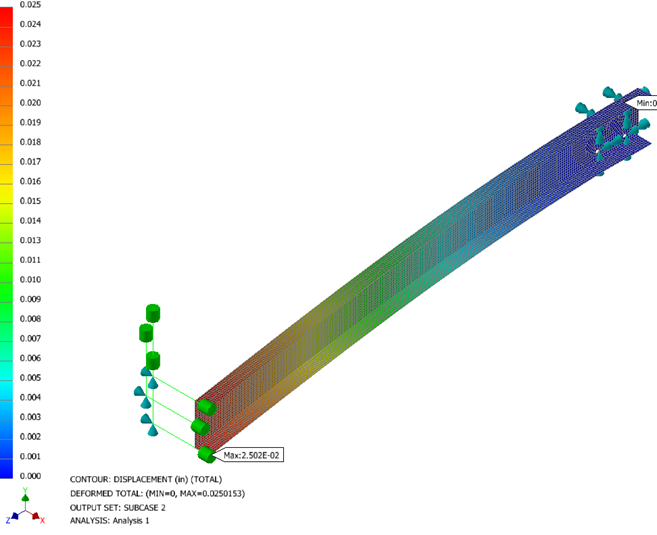

- Review the deformed and contour plot of the beam under the
X Displacement load by double-clicking the
Displacement results under
Subcase 2.
