Tutorial A10: Open the Radiator Tank Geometry with Inventor Nastran

Import the model of the radiator tank into Inventor.

1. Open Inventor.
2. Click File > Open and locate the radiatortank.ipt file.
3. Click Open.

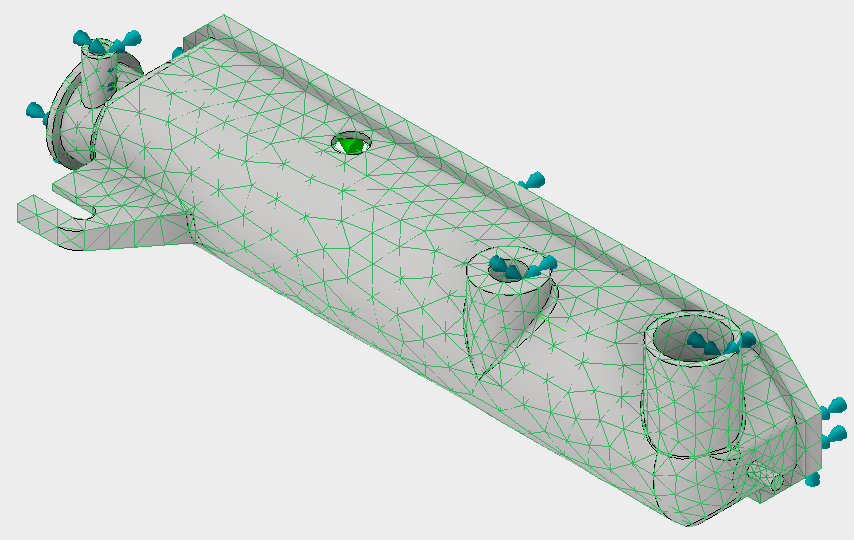

4. Click Environments > Autodesk Inventor Nastran. The radiator tank model is pre-defined with a mesh, fixed boundary conditions, and a pressure load.
