There are two ways to control the visibility of the mesh. These options allow you to display or hide the meshes for all components, which can be useful (for example, to quickly capture a model image without the elements displayed).
To control mesh visibility:

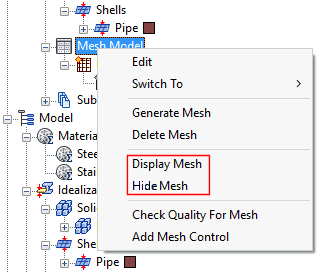

- Right-click
Mesh Model in the browser (model tree). Then,
- Click Display Mesh to show the mesh on all parts.
- Click Hide Mesh to hide the mesh for all parts.

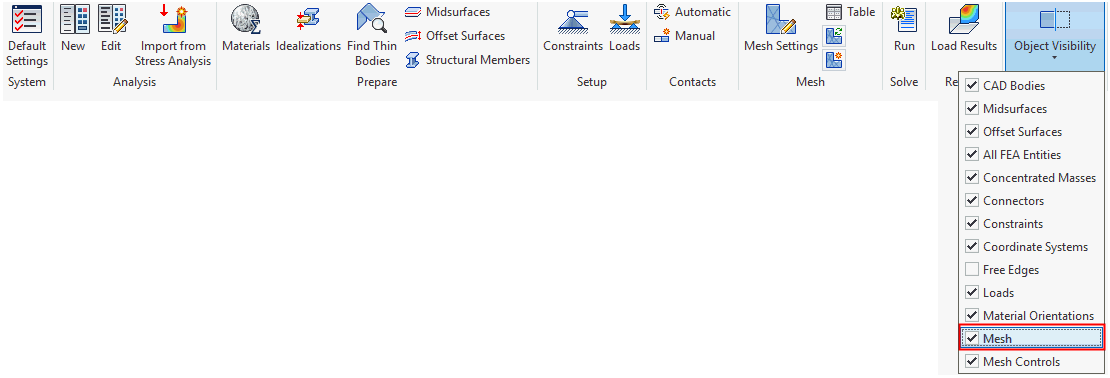

- Click
Object Visibility in the
Display panel of the
Inventor Nastran ribbon tab. Then, click the
Mesh checkbox to toggle its activation state.
