Pan Tool

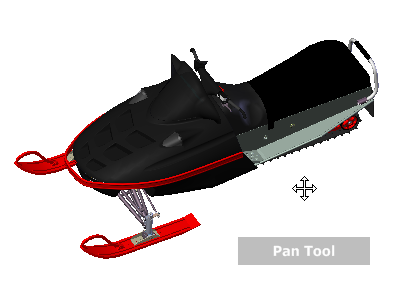

When the pan tool is active, the Pan cursor (a four-sided arrow) is displayed. Dragging the pointing device moves the model in the same direction. For example, dragging upward moves the model up while dragging downward moves the model down.

Note: If the cursor reaches the edge of the screen, you can continue panning by dragging further to force it to wrap around the screen.

Pan the View with the Pan Tool

  1. Display one of the Full Navigation wheels, or the mini View Object wheel.

  2. Click and hold the Pan wedge.

    The cursor changes to the Pan cursor.

  3. Drag to reposition the model.

  4. Release the button on your pointing device to return to the wheel.

Start the Pan Tool with the Middle Mouse Button

  1. Display one of the Full Navigation wheels, or the mini View Object wheel.

  2. Press and hold down the scroll wheel or middle button.

    The cursor changes to the Pan cursor.

  3. Drag to reposition the model.

  4. Release the wheel or button on your pointing device to return to the wheel.
