Move and Rotate a Section Plane with Gizmos

Move a Section Plane with a Gizmo

  1. Click Sectioning Tools tab > Mode panel > Planes .

  2. Click the Current Plane drop-down on the Planes Settings panel, and select the plane you want to use, for example, Plane 3.

    This plane becomes the current plane.

  3. If the move gizmo is not visible in the Scene View, click Transform panel > Move .

  4. Drag the gizmo to move the current plane as needed.

    Tip: Perpendicular arms and faces move the current plane and the gizmo. Parallel arms and face move only the gizmo.

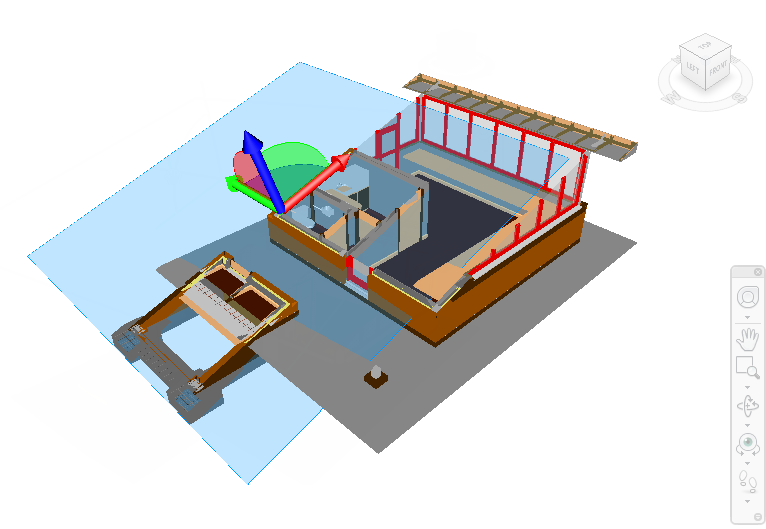

Rotate a Section Plane with Gizmo

  1. Click Sectioning Tools tab > Mode panel > Planes .

  2. Click the Current Plane drop-down on the Planes Settings panel, and select the plane you want to use, for example, Plane 3.

    This plane becomes the current plane.

  3. Click Sectioning Tools tab > Transform panel > Rotate .

  4. Drag the gizmo to rotate the current plane as needed.

    Tip: Perpendicular arcs rotate the current plane and the gizmo. Parallel arc rotates only the gizmo. Arms move only the gizmo.
